Canon iX6540 - Purge Drive System Unit and Switch System Unit Removal

(8) Purge drive system unit (right plate) and switch system unit (left plate) removal

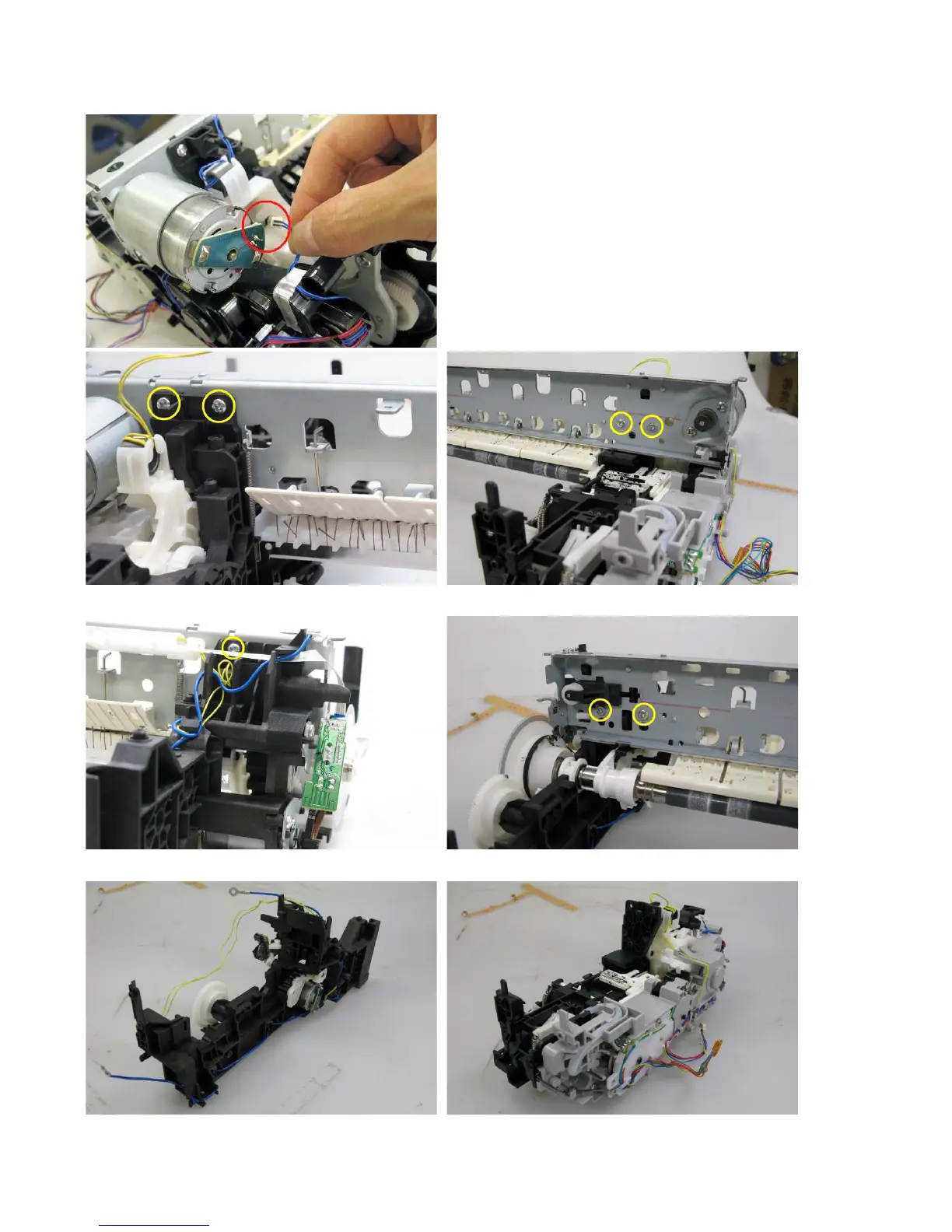

1) Remove the carriage motor cable, and 4 screws from the purge drive system unit.
2) Remove 3 screws from the switch system unit.
3) Separate the main chassis from the switch system unit and the purge drive system unit.
