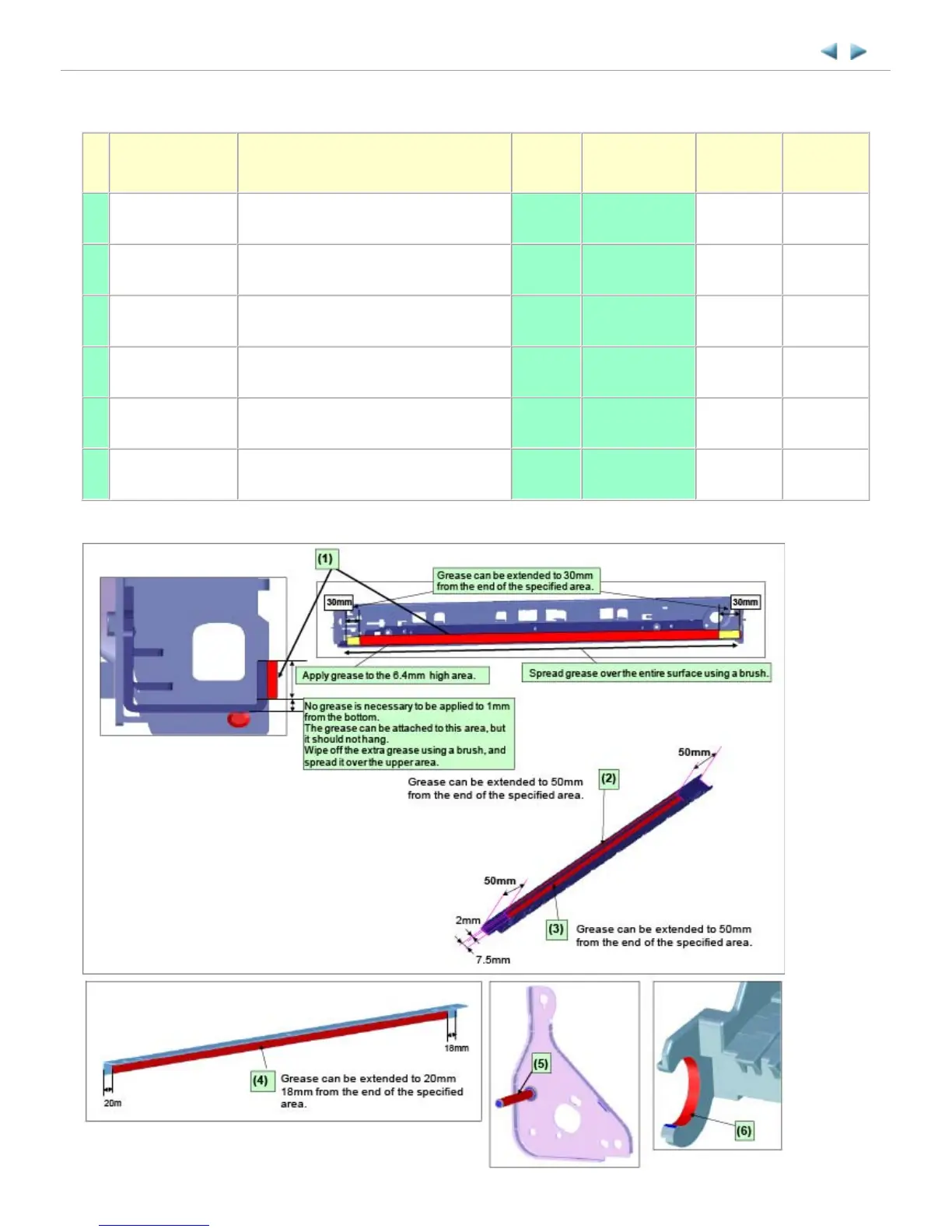

3-4. Grease Application
1 drop = 9 to 18 mg
iX6500 series --- 3. ADJUSTMENT / SETTINGS TABLE OF CONTENTS
No Part name Where to apply grease / oil
Drawing
No.
Grease
Grease
amount
(mg)
Number
of drops x
Location
1 Carriage rail
The surface where the carriage unit
slides
(1) Floil KG107A 310 to 370 ---
2 Carriage rail
The surface where the carriage unit
slides
(2) Floil KG107A 240 to 280 ---
3 Carriage rail
The surface where the carriage unit
slides
(3) Floil KG107A 240 to 280 ---
4
Carriage upper
rail
The surface where the carriage unit
slides
(4) Floil KG107A 300 to 360 ---
5
APP code wheel
gear shaft
APP code wheel gear sliding portion
(the entire surface)
(5) Floil KG107A 9 to 18 1 x 1
6 Paper guide
LF roller sliding portion on the
opposite side of the home position
(6) Floil KG107A 18 to 27 2 x 1
To Next Page
