Canon iX6540 - Carriage Unlocking; ASF Unit Removal

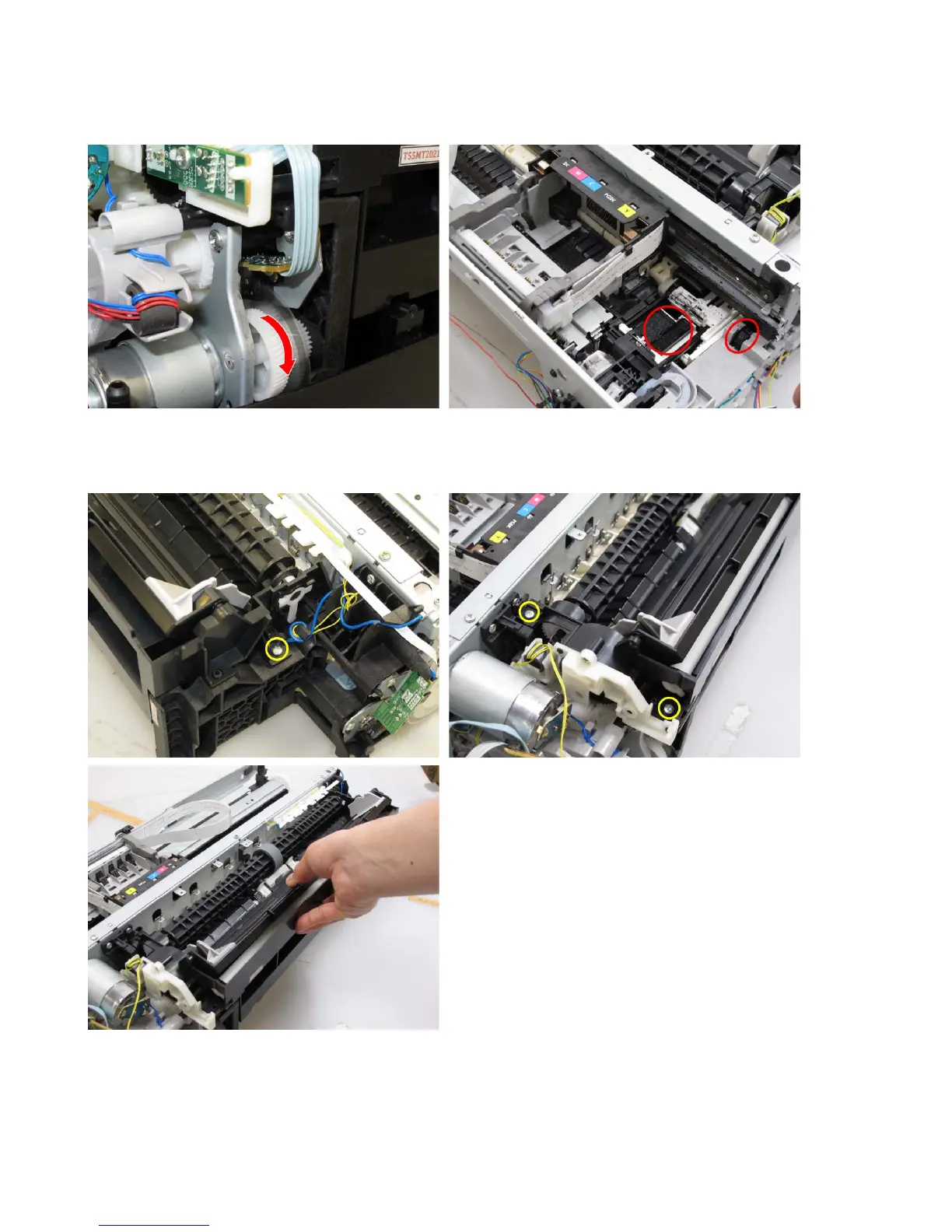

(4) Carriage unlocking
(5) ASF unit removal
1) Rotate the drive unit gear toward the back of the printer to unlock the carriage.
Slide the carriage to the left (the opposite of the home position).
1) Remove 1 screw from the left plate, and 2 screws from the right plate.
