2-2. Disassembly & Reassembly Procedures (Click on the image to enlarge it.)
Be sure to protect the machine from static electricity in repair servicing, especially for the logic board, panel cover
unit, and PE sensor board.
Some of the photos below are from the MG5200 series, since their structure is similar to that of the iX6500 series.
(1) External housing removal
iX6500 series TABLE OF CONTENTS

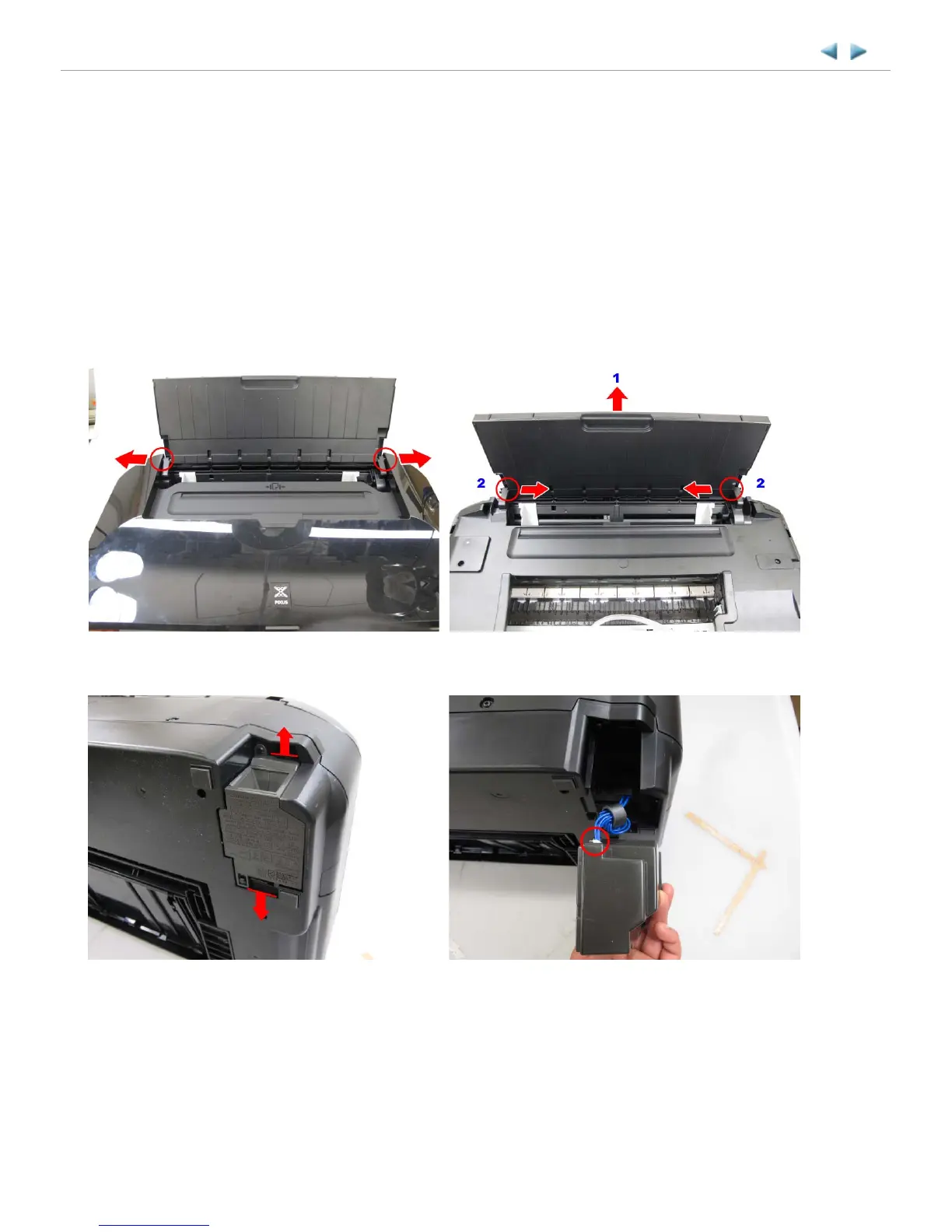

1) Remove the access cover and the paper support (no screws).
<The access cover hinges are fitted into the main case. While slightly pulling the cover outward
on the left and right sides, lift the cover to separate it from the main case.>
<Hold the center of the paper support, and pull it upward so that the left and right hinges will
come out from the main case.>
2) Remove the AC adapter (no screws).
<Pull out the AC adapter from the bottom of the bottom case.>
