■ 2/2
[9]
[11]
[10]
[15]
[13]
[12]
[14]

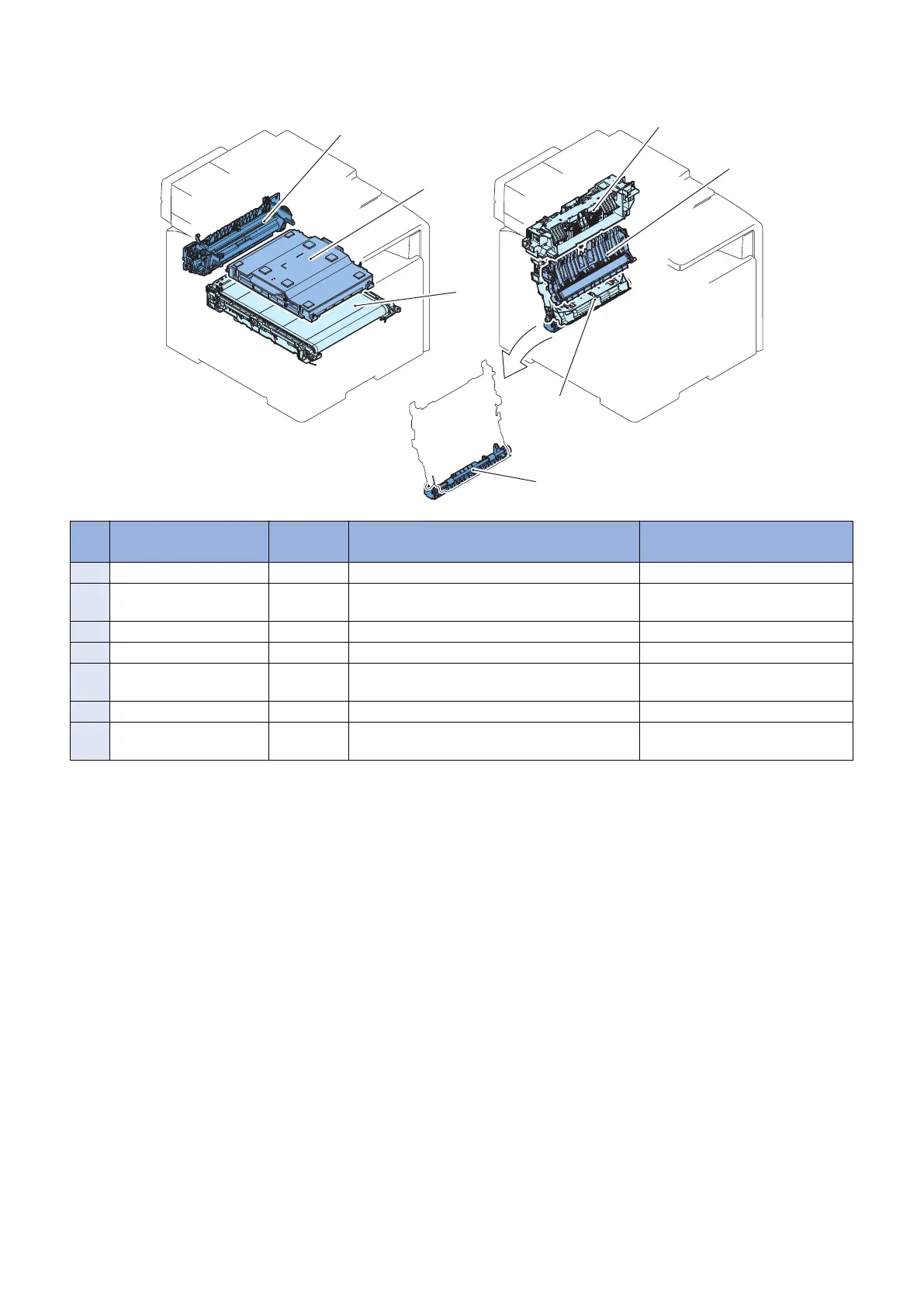

No. Parts Name Remarks Reference Adjastment during parts re-
placement
[9] Fixing Assembly - “Removing the Fixing Assembly” on page 200 -
[10] Laser Scanner Unit - “Removing the Laser Scanner Unit” on page
185
“After Replacing the Laser Scanner
Unit” on page 188
[11] ITB Unit - “Removing the ITB Unit” on page 191 -
[12] Delivery Unit - “Removing the Delivery Unit” on page 220 -
[13] Secondary Transfer Feed
Unit
- “Removing the Secondary Transfer Feed Unit” on
page 219
-
[14] Duplex Feed Unit - “Removing the Duplex Feed Unit” on page 221 -
[15] Re-Pickup Guide Unit - “Removing the Re-pickup Guide Unit” on page
222
-
