Canon MF724Cdw - List of Motor; Fan

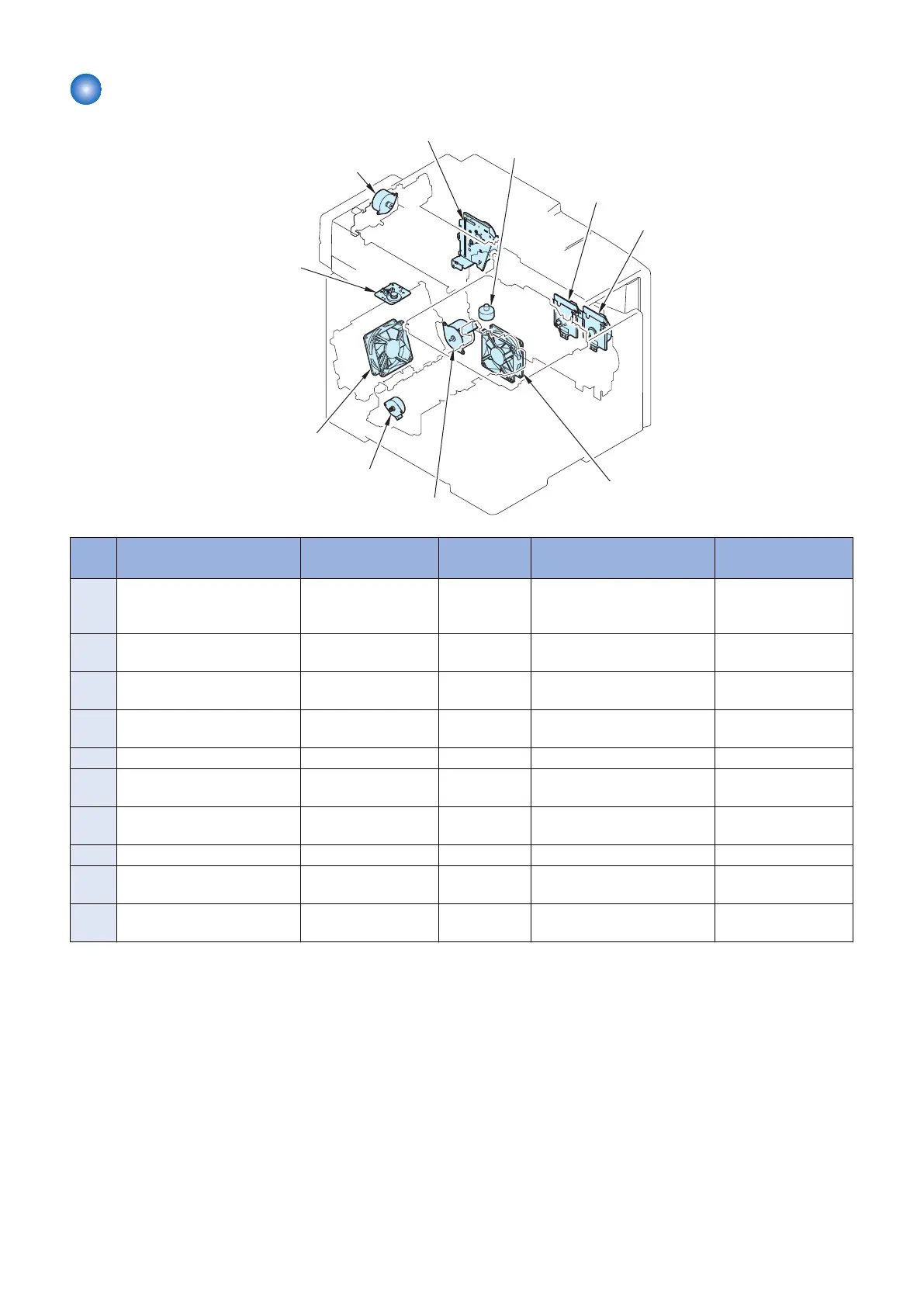

List of Motor / Fan
M7
M4
M5
FM2
M3
M2
M1
FM1
M721
M720
No. Parts Name Main Unit Remarks Reference Adjastment during
parts replacement
FM1 Fixing /Fixing Power Supply
Cooling Fan
Product configuration - “Removing the Fixing/Fixing
Power Supply Cooling Fan
Unit” on page 180
-
FM2 Duplex Feeding Fan Rear Cover Rib Unit - “Removing the Duplex Feed-
ing Fan” on page 181
-
M1 Drum Motor Main Drive Unit - “Removing the Drum Motor” on
page 196
-
M2 Developing Motor Main Drive Unit - “Removing the Developing
Motor” on page 195
-
M3 Registration Motor Pickup Unit - - -
M4 Fixing Motor Product configuration - “Removing the Fixing Motor
Unit” on page 205
-
M5 Pickup Motor Product configuration - “Removing the Pickup Motor”
on page 212
-
M7 Laser Scanner Motor Laser Scanner Unit - - -
M720 Reader Motor Reader Unit - “Removing the Reader Scan-
ner Motor” on page 151
-
M721 ADF Motor ADF Paper Feeder
Unit
- “Removing the ADF Pickup
Motor” on page 141
-
