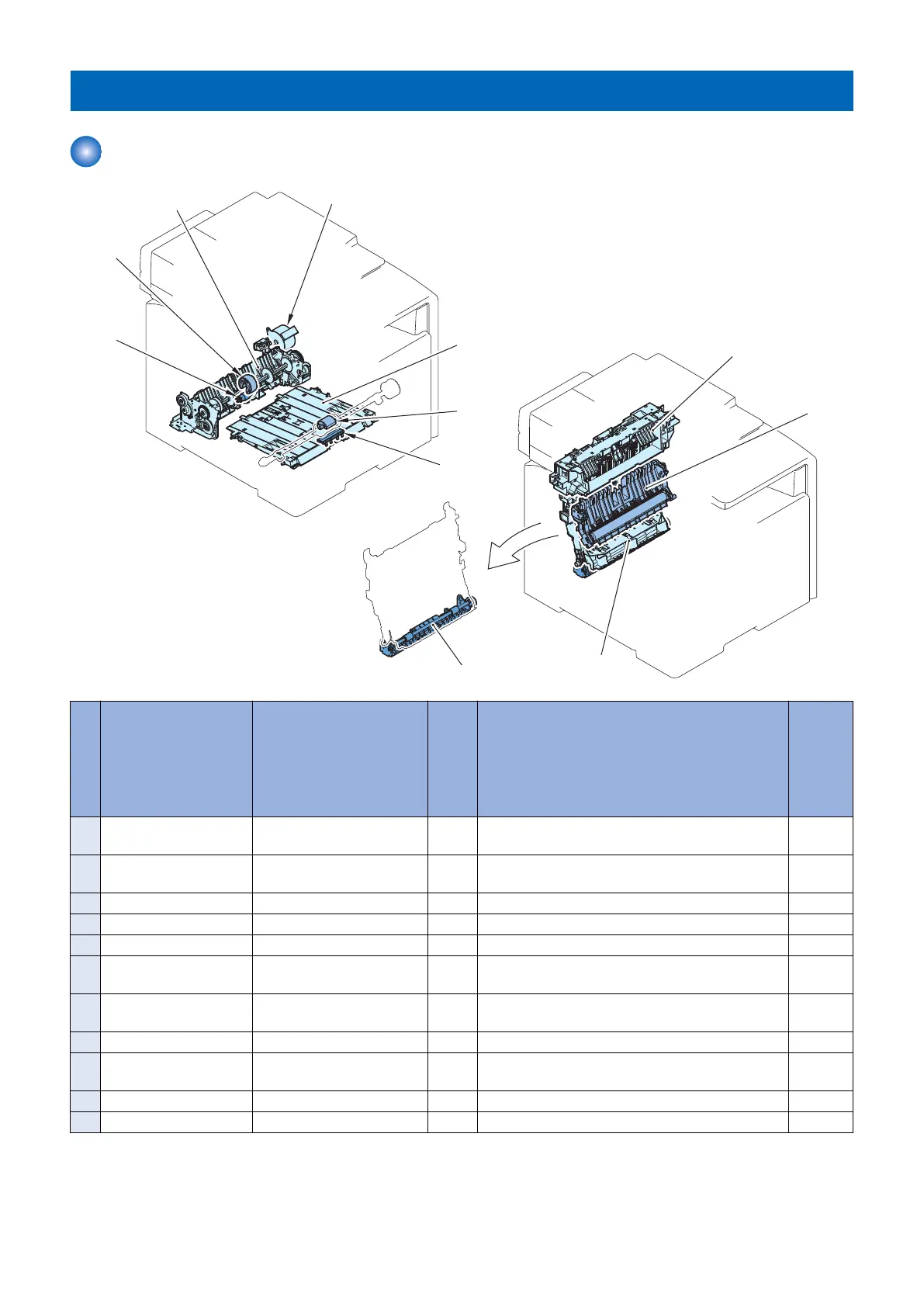

Canon MF724Cdw - Pickup Feeder System; Location

Pickup Feeder System
Location
[10]
[11]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
No. Parts Name Main Unit Re-
marks
Reference Adjast-
ment
during
parts re-
place-
ment
[1] Cassette Separation
Roller
Paper Pickup Unit - “Removing the Cassette Separation Roller” on page
210
-
[2] Cassette Pickup Roller Paper Pickup Unit - “Removing the Cassette Pickup Roller” on page
209
-
[3] Paper Pickup Unit Product Configuration - “Removing the Pickup Unit” on page 213 -
[4] Pickup Motor Product Configuration M5 “Removing the Pickup Motor” on page 212 -
[5] MP Paper Pickup Unit Product Configuration - “Removing the MP Tray Pickup Unit” on page 218 -
[6] MP Paper Pickup Roller MP Paper Pickup Roller Unit - “Removing the MP Tray Pickup Roller” on page
211
-
[7] MP Separation Pad MP Paper Pickup Unit - “Removing the MP Tray Separation Pad” on page
211
-
[8] Delivery Unit Product Configuration - “Removing the Delivery Unit” on page 220 -
[9] Secondary Transfer
Feed Unit
Product Configuration - “Removing the Secondary Transfer Feed Unit” on
page 219
-
[10] Duplex Feed Unit Product Configuration - “Removing the Duplex Feed Unit” on page 221 -
[11] Re-Pickup Guide Unit Product Configuration - “Removing the Re-pickup Guide Unit” on page 222 -
4. Disassembly/Assembly
208
