Fixing System

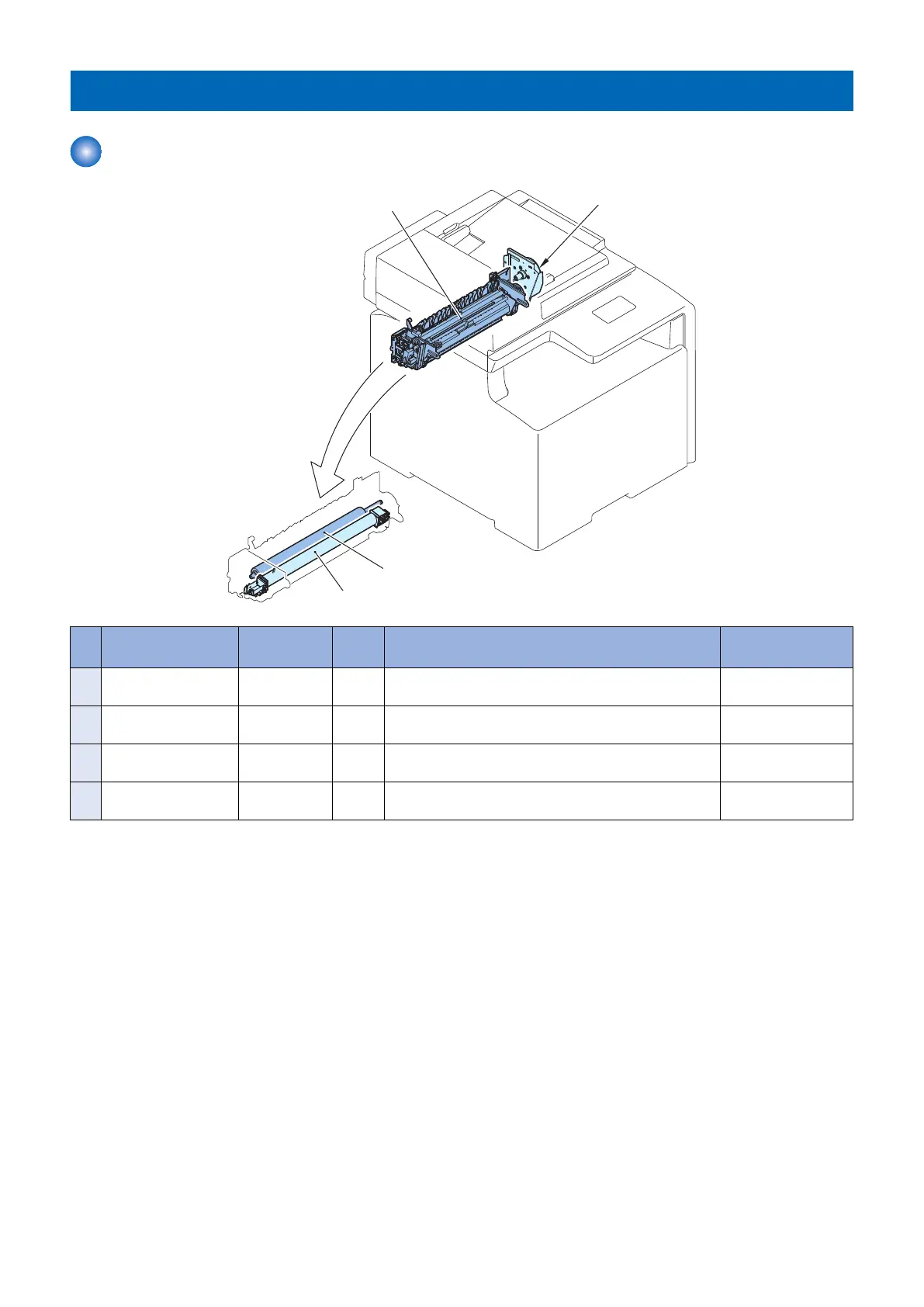

Location
[1]
[4]
[3]
[2]
No. Parts Name Main Unit Re-
marks
Reference Adjastment during
parts replacement
[1] Fixing Assembly Product Con-
figuration
- “Removing the Fixing Assembly” on page 200 -
[2] Fixing Motor Unit Product Con-
figuration
M4 “Removing the Fixing Motor Unit” on page 205 -
[3] Fixing Pressure Roller Fixing Assem-
bly
- “Removing the Fixing Pressure Roller” on page 205 -
[4] Fixing Film Unit Fixing Assem-
bly
- “Removing the Fixing Film Unit” on page 201 -
