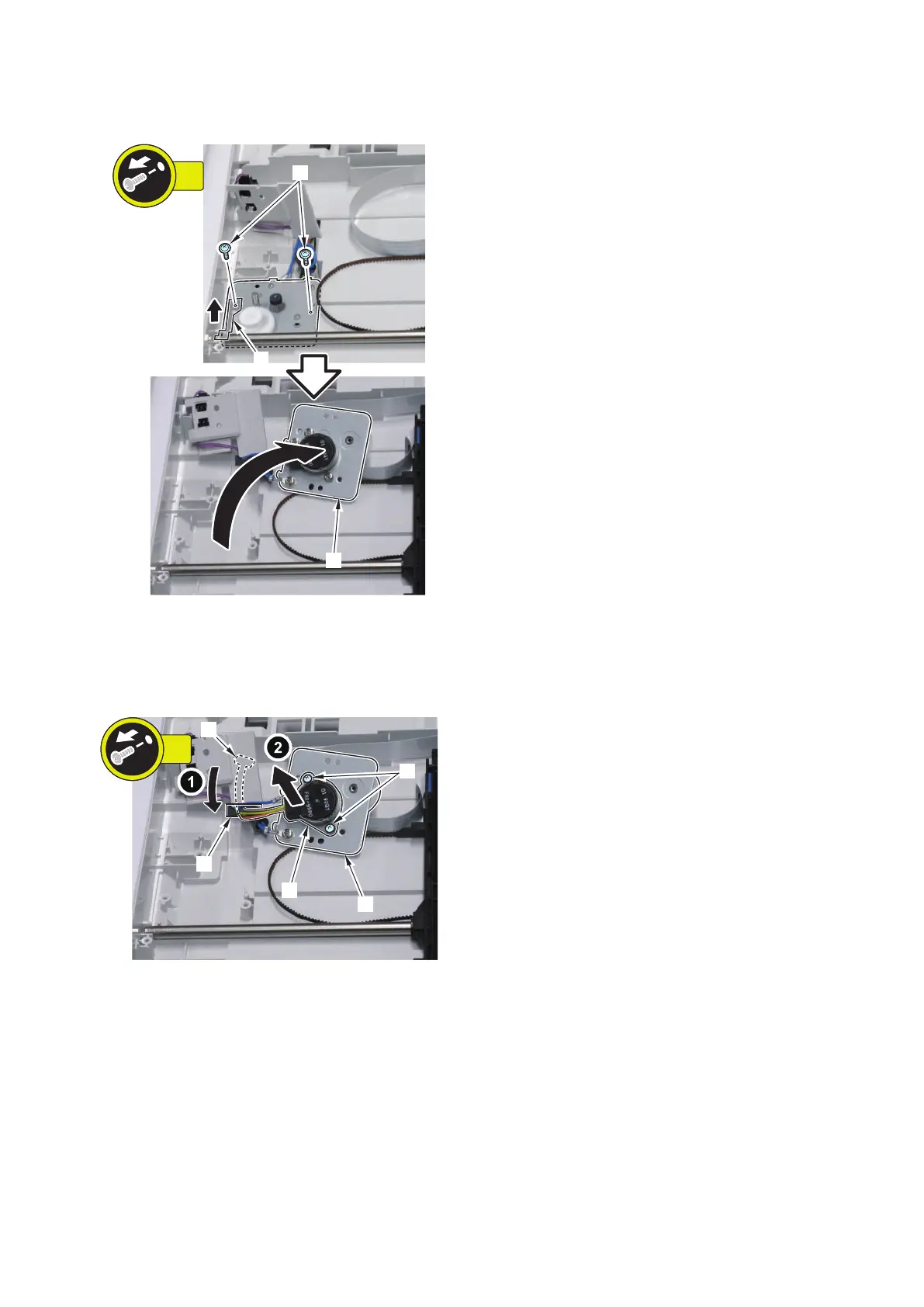

7. Move the Motor Mounting Plate [1] and turn it over.
• 2 screws [2]
• 1 Grounding Plate [3]
[2]
[1]
[3]
2x
8. Pass the connector [1] through the hole [A].
9. Remove the Reader Scanner Motor [3] from the
Motor Mounting Plate [2].
• 2 screws [4]
[4]
[2]
[1]
[A]
[3]
2x
4. Disassembly/Assembly
153
