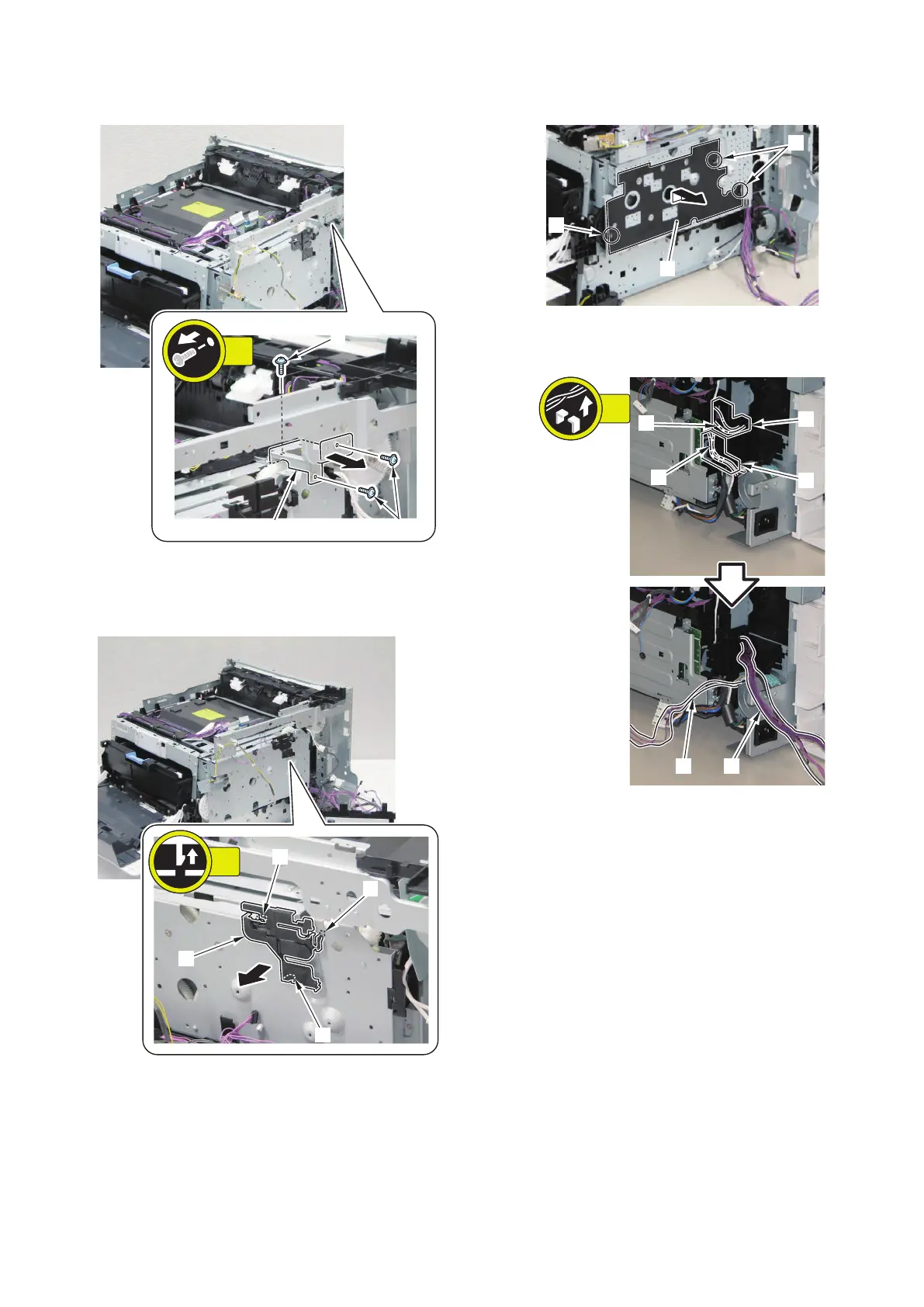

10. Remove the Right Frame Supporting Plate [1].
• 3 Screws [2]
[1]
[2]
[2]
3x
11. Remove the wire harness guide [1].
• 2 Claws [2]
• 1 Hook [3]
[1]
[2]
[2]
[3]
2x
12. Remove the sheet [1].
• 3 Hooks [2]
[2]
[2]
[1]
13. Free the harness [1] and [2] from the Harness Guide
[A] and [B].
[1] [2]
[B]
[2]
[1]
[A]
2x
