Canon MF724Cdw - Removing the Re-pickup Guide Unit

■ Procedure

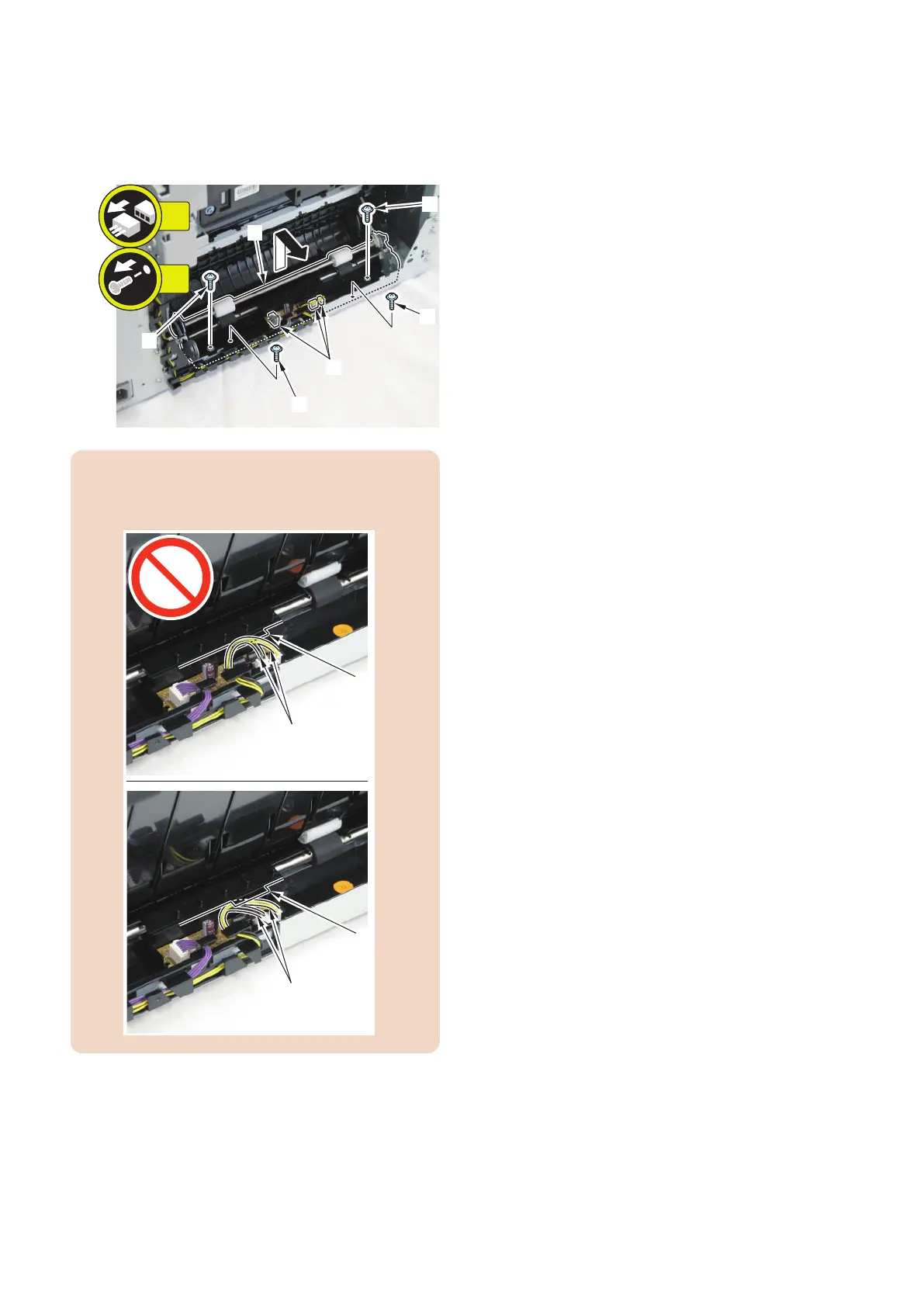

1. Remove the Re-pickup Guide Unit [1].
• 3 connectors [2]
• 4 screws [3]
[2]
[3]
[3]
[3]
[3]
[1]
4x
3x
CAUTION:
Be sure to insert the 2 harnesses [1] at the bottom of
the Guide [A] when installing.
[A]
[1]
[A]
[1]
