PC-D320/PC-D340/FAX-L400 Chapter 1: General Description
1-6
Scanning range
Item A4 Letter Legal
Effective 208 ±1.0 mm 214 ±1.0 mm 214 ±1.0 mm
scanning width (8.19"±0.04") (8.43"±0.04") (8.43"±0.04")
Left margin 2.0 ±2.0 mm 2.0 ±2.0 mm 2.0 ±2.0 mm
(0.08" ±0.08") (0.08" ±0.08") (0.08" ±0.08")
Right margin 2.0 ±2.0 mm 2.0 ±2.0 mm 2.0 ±2.0 mm
(0.08" ±0.08") (0.08" ±0.08") (0.08" ±0.08")
Top margin 3.5 ±2.0 mm 3.5 ±2.0 mm 3.5 ±2.0 mm
(Book mode) (0.14" ±0.08") (0.14" ±0.08") (0.14" ±0.08")
Top margin 3.5 +2.0/-2.5 mm 3.5 +2.0/-2.5 mm 3.5 +2.0/-2.5 mm
(ADF mode) (0.14" +0.08"/-0.1") (0.14" +0.08"/-0.1" (0.14" +0.08"/-0.1")
Bottom margin 2.0 ±2.0 mm 2.0 ±2.0 mm 2.0 ±2.0 mm
(0.08" ±0.08") (0.08" ±0.08") (0.08" ±0.08")
Units are inches with mm shown in parentheses.

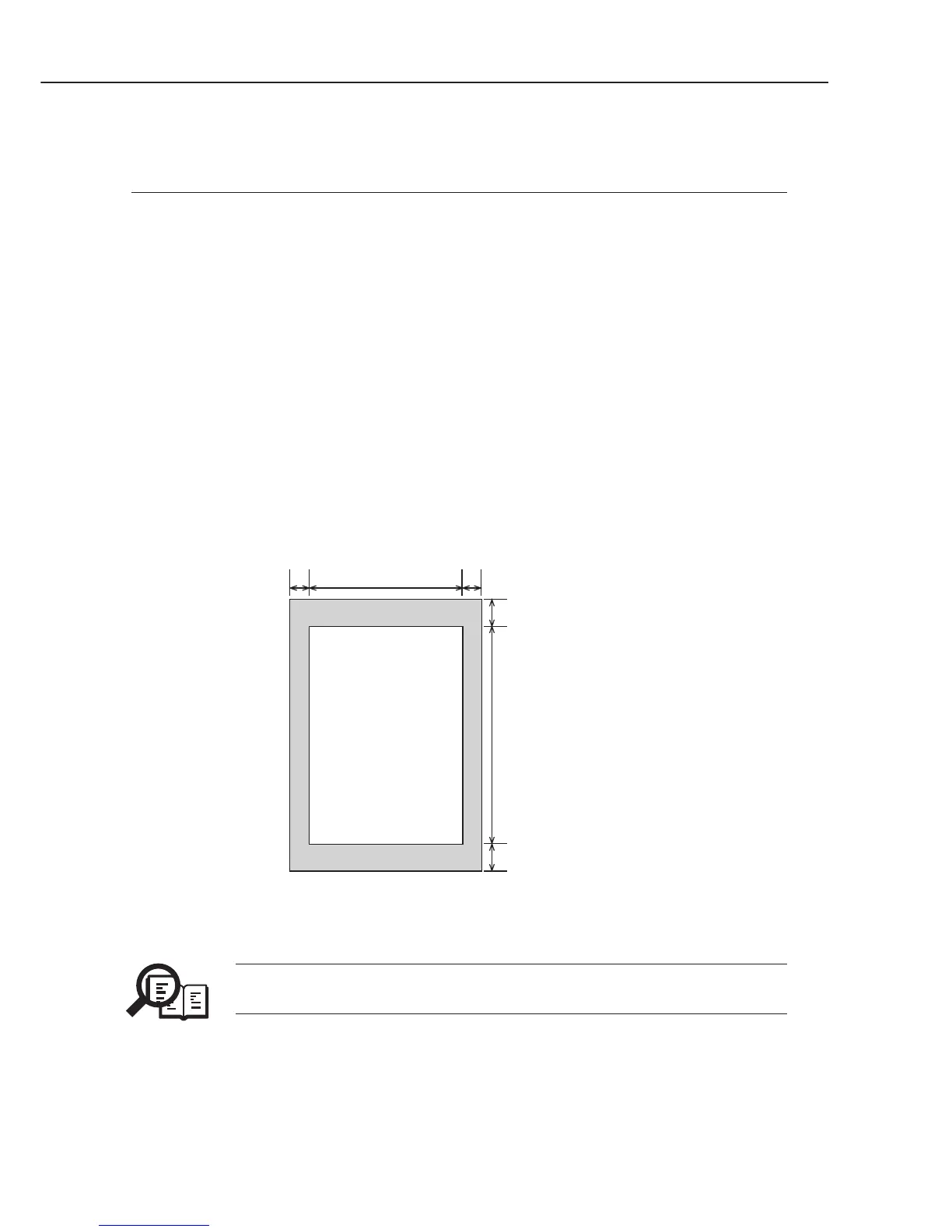

Figure 1-1 Scanning Range
Document scanning width “A4/LTR” is set in service data #1SSSW SW 06,
bit 4.
SCANNING RANGE
SCANNING
DROP OUT RANGE
Right marginLeft margin
Top margin
Bottom margin
Effective scanning width
Effective scanning length
Document leading edge
Document trailing edge
NOTE
