The scanner section scans documents that are to be copied.
2. SCANNER SECTION
2. SCANNER SECTION
Paper guide
Pick-up roller
Separation roller
Document feed roller
Document eject roller
CS drive motor
Contact sensor
Document feed motor

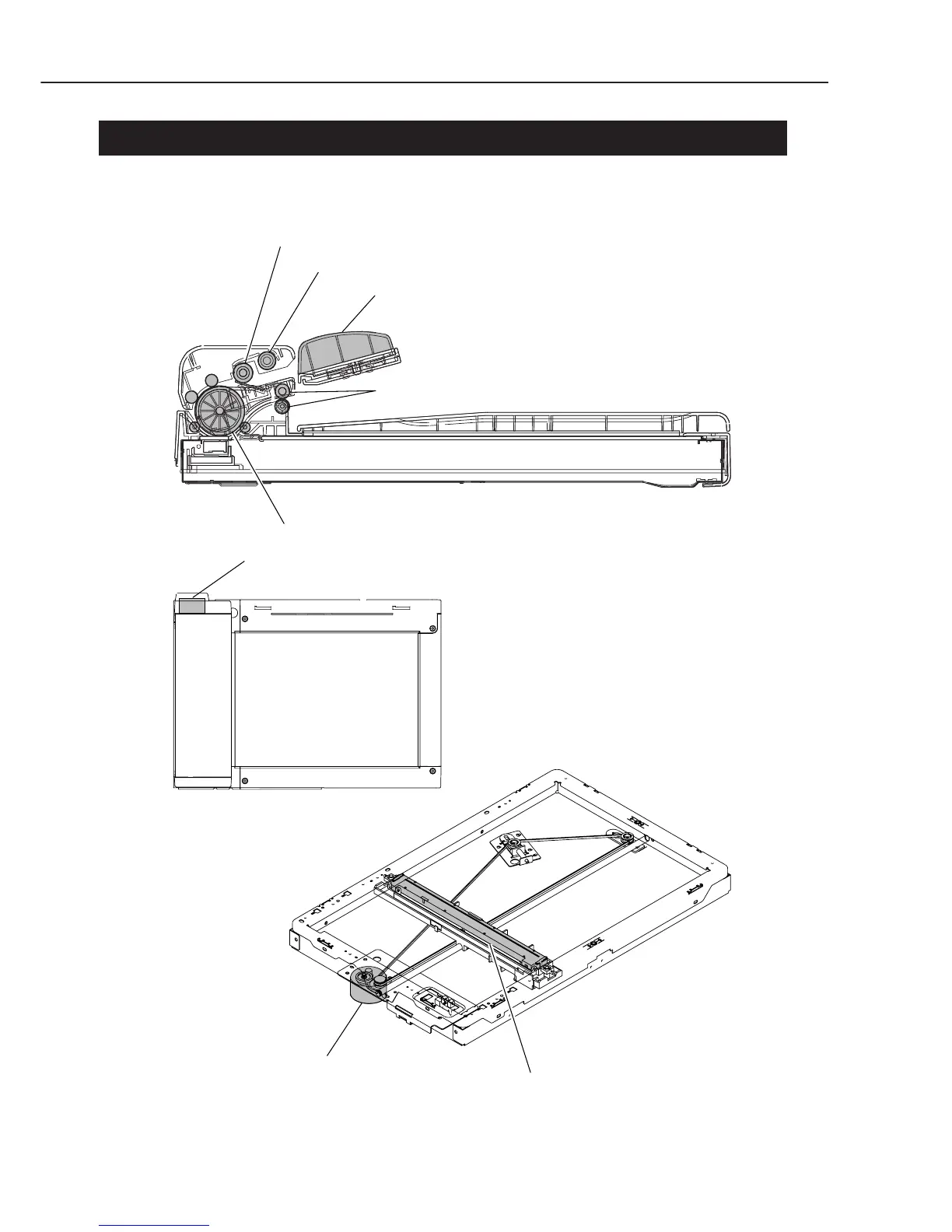

Figure 2-4 Scanner section
