Product Specifications

220

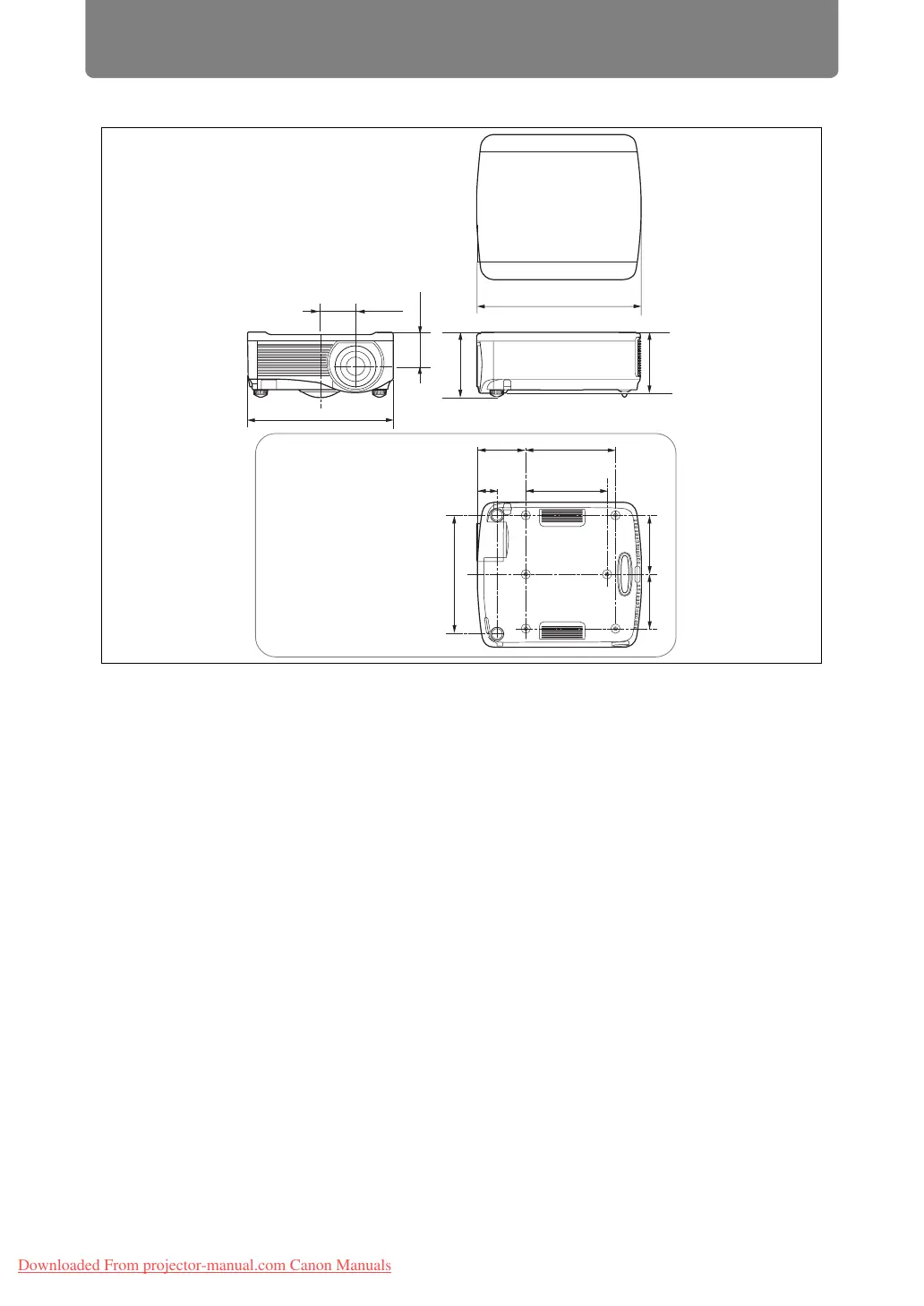

■ External View

53 mm (2.1')

128 mm (5.0')

212 mm (8.35')

234.5 mm (9.2')

92 mm (3.6')

91 mm (3.6')

150 mm (5.9')

311 mm (12.2')

154.5 mm (6.1')141.5 mm (5.6')

170 mm (6.7')

430 mm (16.9')

380 mm (15.0')

WUX6000

Bolt holes (M4 x 6)

for installation of

ceiling attachment
