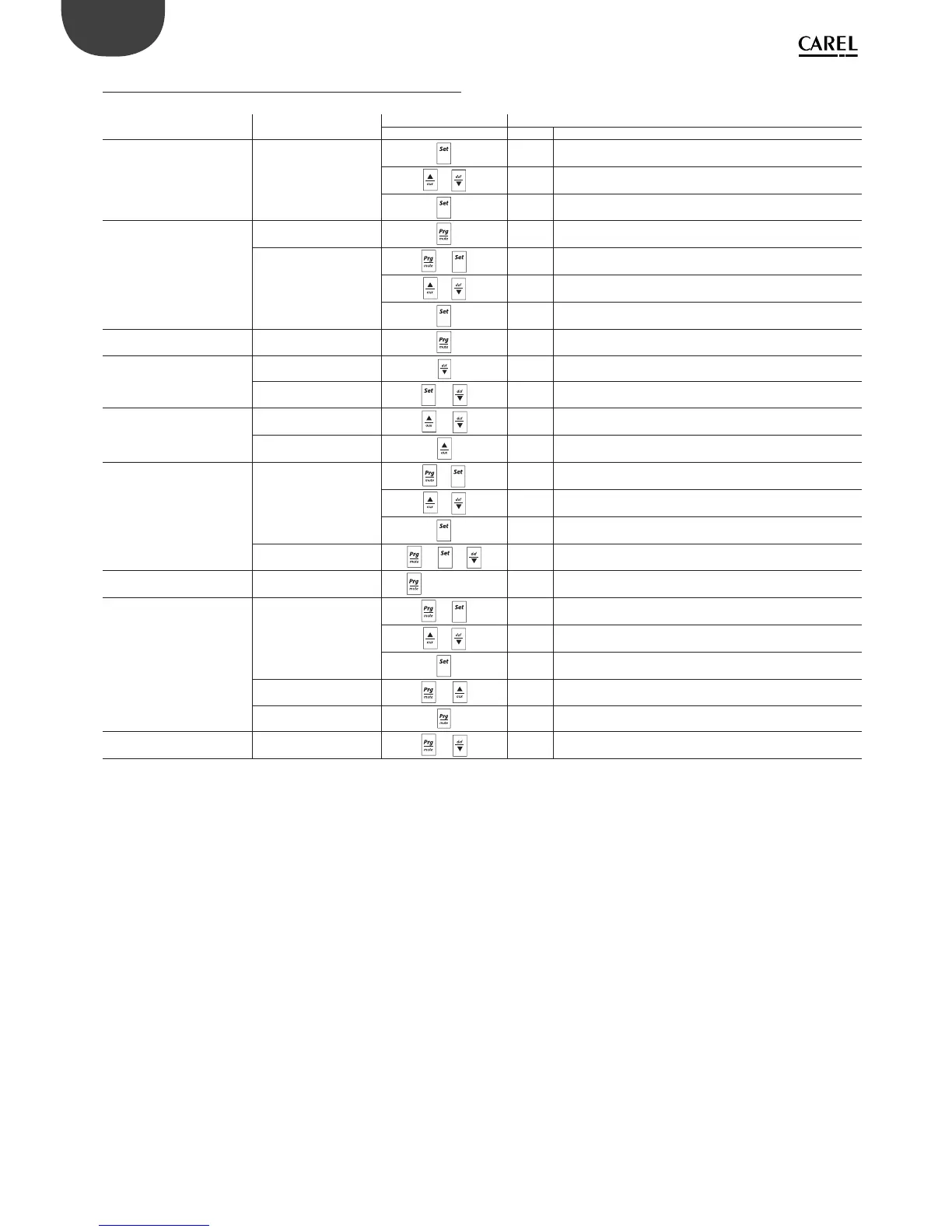

3.2 Keypad
Setting Function
Front keypad controls Display when setting / notes
Duration
Set point Temperature set point
Value on display  ashing
/
Set value
Save set point and return to standard display
Access the parameters
(programming level)
Type F parameters
(frequent)
5 s The  rst type F parameter is displayed
Type C (con guration) or A
(advanced) parameters
&
5 s
/
Enter password (22 for con guration level and 33 for advanced level)
Con rm the password, the  rst type C or A parameter is displayed
Output from the livello
programming
5 s The changes are saved
Defrost
Local defrost
5 s dFb : activate defrost dFE : deactivate defrost
Multiplexed defrost (Master
only)
&
5 s dFb : activate defrost dFE : deactivate defrost
Auxiliary functions
Continuous cycle
&
5 s
ccb : activate continuous cycle (see paragraph 6.6)
ccE : deactivate continuous cycle
AUX output
Activate/deactivate auxiliary output
Network functions (only for
Master)
Copy parameters from
Master to Slave
&
5 s
/
Enter password (default 66)
See paragraph 3.6 : “Copy parameters from Master to Slave”
Display network unit status
from Master
& &
Select Slave: see paragraph 3.5 : “Display Slave controller status from
Master terminal”
Set the default parameters
(restore parameters)
Set default parameters (*)
on power-up
If 0 is displayed press set to continue
Alarms
Display alarm log
&
5 s
/
Enter password (default 44)
See paragraph 9.3: “Display alarm log”
Manual alarm reset
&
5 s “rES” indicates the alarm has been reset
Mute buzzer and disable
alarm relay
HACCP HACCP menu
&
See par. 9.4 “HACCP alarms and display”
Tab. 3.b
(*) The default parameters, or any of the sets of parameters loaded inside MPXPRO,
only have e ect on the parameters visible from the user terminal, based on the
list of parameters. The parameters that are not visible on the user terminal are not
a ected by this procedure.
