Carestream CS 8100 - Patient Preparation and Positioning for Oblique Image; Patient Preparation for Oblique Image; Remove Metal Objects and Wear Lead Apron; Positioning Head Clamps for Oblique Image

Cephalometric Modality User guide for CS 8100 Family and CS 8100 3D Family_SM987_Ed02 31
6. Gently push in at the top part of a head clamp bar to retract both head clamp bars and to fit the
ear cones into the ear auditory canals.

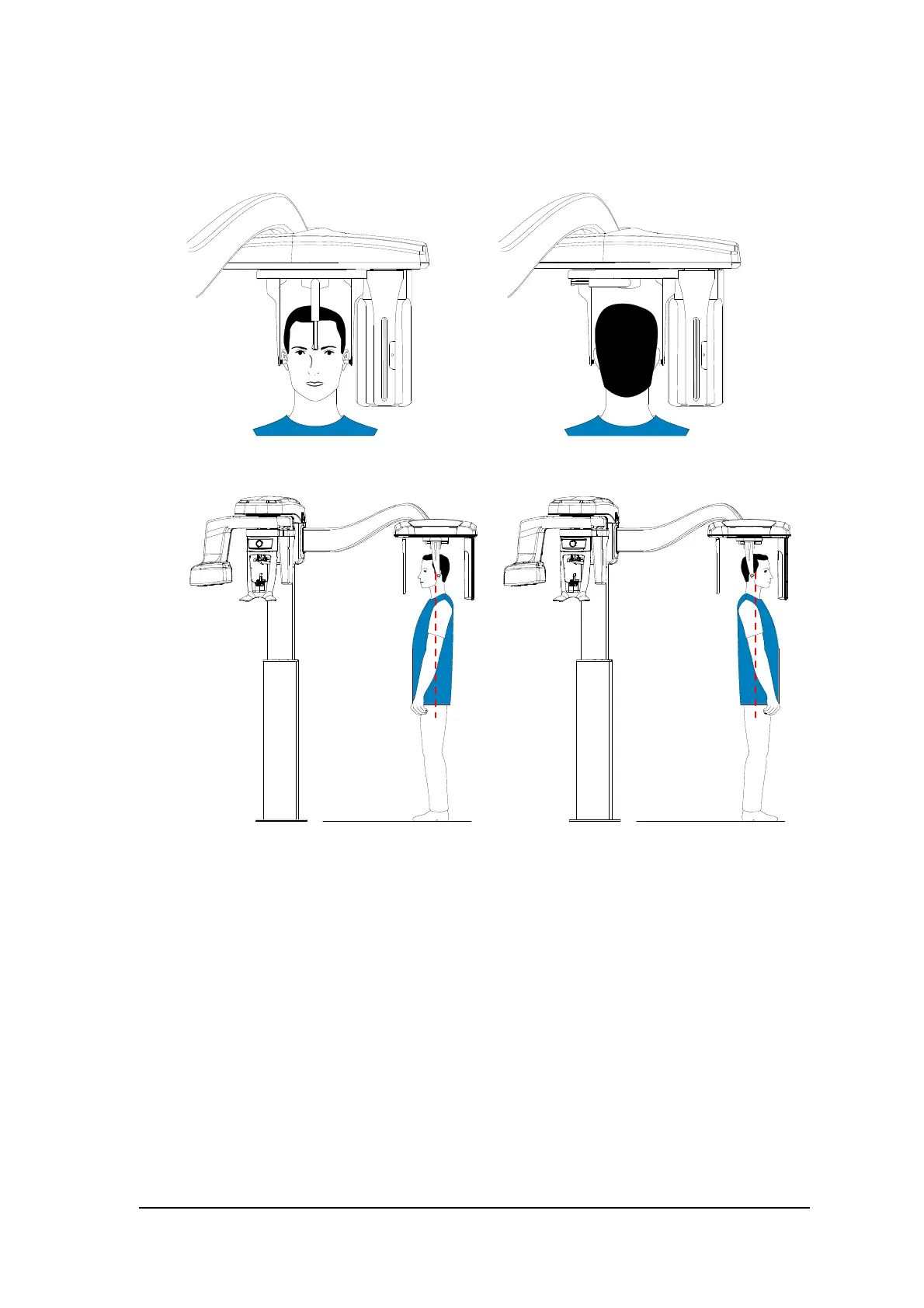

Figure 5–1 Frontal AP Figure 5–2 Frontal PA
Figure 5–3 Frontal AP Figure 5–4 Frontal PA
