Motor Controllers AC Variable Frequency Drives Type VariFlex
3
RVLF
Specications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 13/12/2017 235
Appendix 11: RV-CAN
This sheet provides brief operating instructions of the RV-CAN type module.
For details, please refer to the user’s operation m anual.

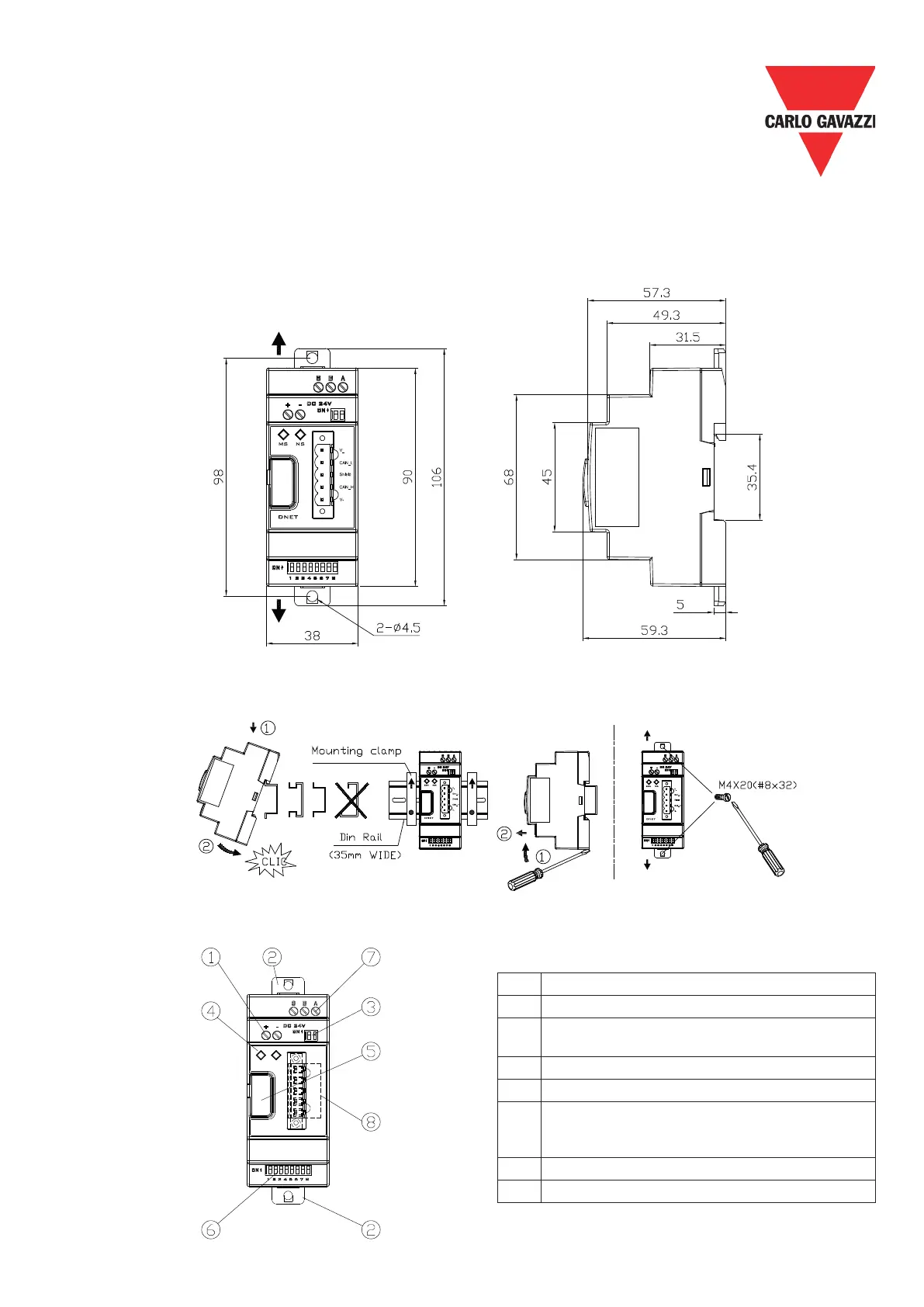

Dimensions
Unit: mm (1 inch = 25.4mm)
Mounting
Name & function
NS
DNET
MS
V
+
CAN_H
Shield
CAN_L
V_
1 Power supply terminals
2 Retractable mounting feet
3
2PIN dip switch
(choosing terminating resistors)
4 Module state LED/ Network state LED
5 Press-button
6
8PIN dip switch (SW1-1~SW1-8)
SW1-1~1-6: Setup network ID
SW1-7~1-8: Setup baud rate
7 RS485
8 Terminal block(5PIN)
