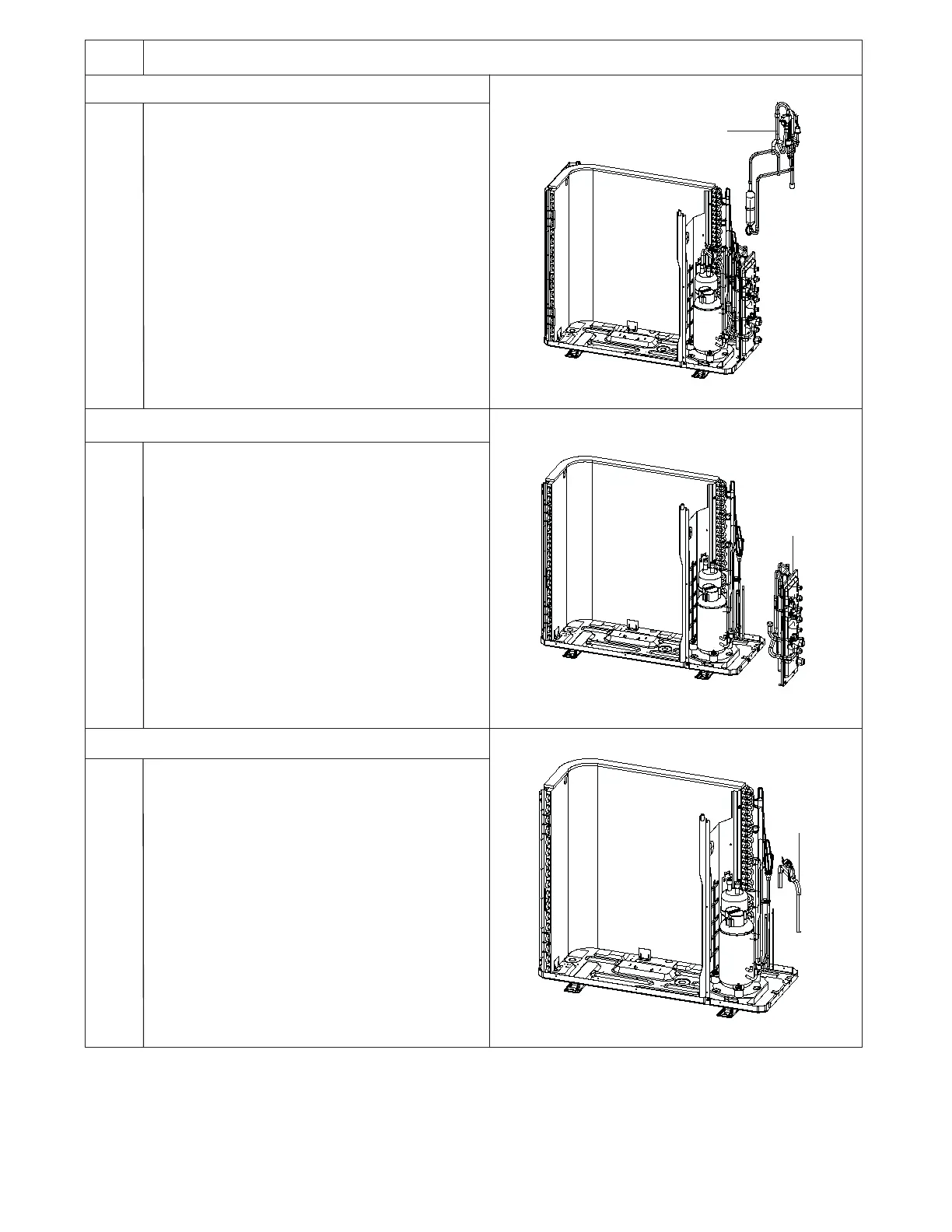

Steps Procedure
Reclaim all refrigerant charge in system.
Cut all line connections to the service valve support;
remove the 2 bolts retaining the liquid valve; remove
the service valve support.
12.Remove Connection Pipe Sub-assy
Reclaim all refrigerant charge in system.
Cut all line connections to 4-way valve and
remove from unit.
10.Remove 4-way valve
11.Remove Service Valve Support
Cut all line connections to the connection pipe
sub-assy; then remove connection pipe sub-assy.
Connection Pipe
Sub-assy
Service Valve Support
4-way valve
