symbol on the control panel. See Fig. 26. To change the
fan speed on the remote control, press the HIGH, MID
or LOW buttons.
High fan mode is recommended for very warm days or
when a fast initial cooling of the room is desired.
Medium fan mode is recommended on moderately warm
days or when the unit has been operating for some time
and the temperature is about to reach its desired set-
ting. Low fan mode is recommended on slightly warm
days or after the room temperature has reached its
desired setting. Auto mode adjusts the fan speed auto-
matically from low to high based on the setting of the
thermostat and the actual room temperature.
NOTE: When changing modes during operation, the
unit may not respond immediately. Wait 3 minutes
before attempting to switch modes or restarting the
unit.
■ THERMOSTAT — The temperature setting on the
thermostat can be adjusted from a range of 66 to 88 F
(19 to 31 C). The air conditioner will start and stop
cooling operation in order to maintain the temperature
setting of the thermostat.
Press the DOWN ARROW button on the control panel
to lower the temperature setting; press the UP
ARROW button to raise the temperature setting.
When using the remote control, press the “-” button to
lower the temperature; press the “+” button to raise
the temperature setting.
■ TIMER MODE — Your Carrier air conditioner unit
can be programmed so that the unit will shut off after
a certain number of hours (if operating) or turn on
after a certain number of hours (if off).
Press the TIMER button to start the Timer mode. The
number of hours will start at 0. The range is 0 to
24 hours.
If the unit is operating, the number of hours until the
unit will turn off will be displayed. If the unit is off,
the number of hours until the unit will turn on will be
displayed. Use the UP and DOWN ARROW buttons on
the control panel to change the number of hours. When
using the remote control, press the “-” and “+” buttons
to change the number of hours.
Press the TIMER button again to cancel Timer mode.
■ SWING BUTTON — The SWING button is used to
start or stop the vertical air vanes from swinging back
and forth.
■ EXHAUST AIR VENT LEVER — When the lever is
pushed down, the unit will circulate room air. When
the lever is pushed up, some of the room air is
exhausted to the outside.

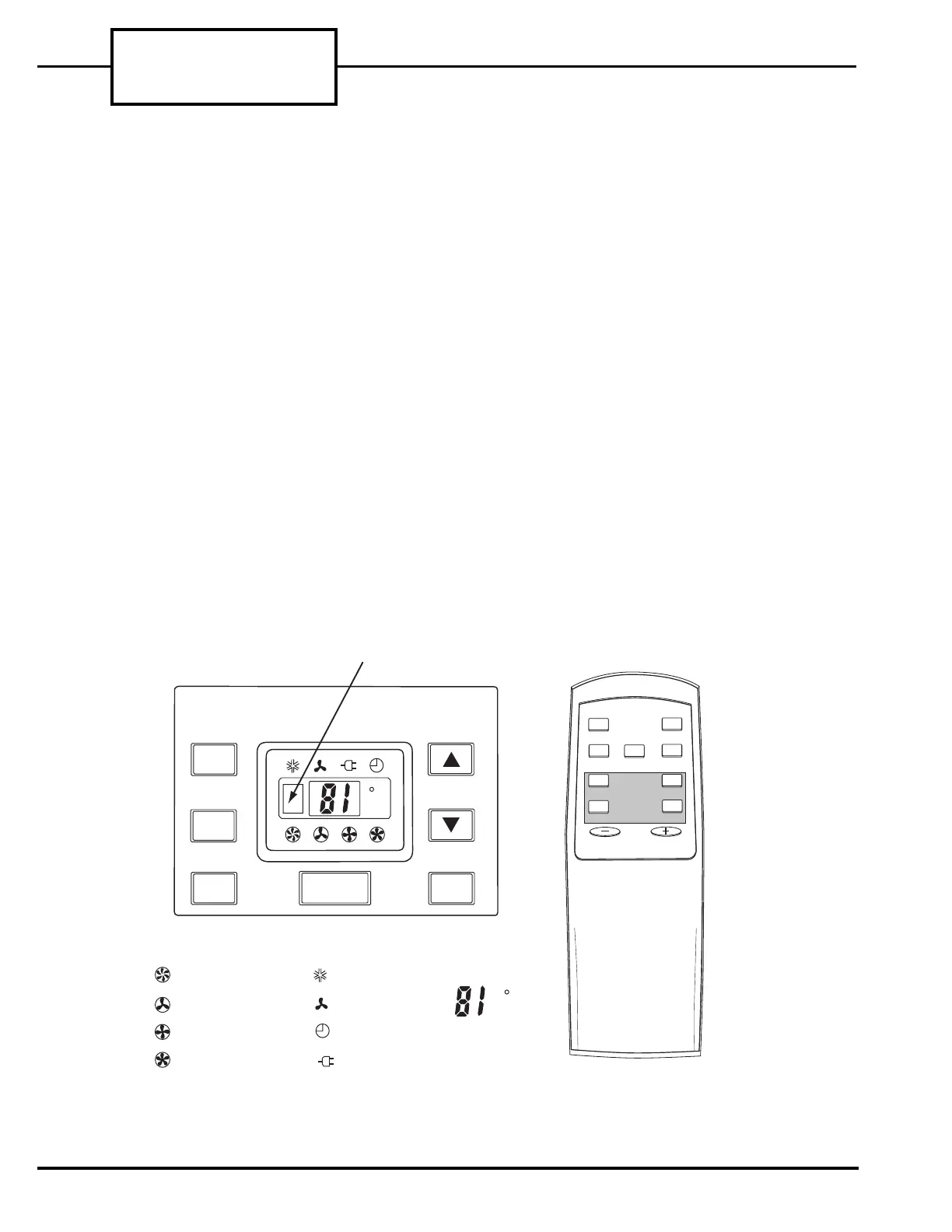

FIGURE 26 — CONTROL PANEL AND REMOTE CONTROL
CONTROL PANEL
REMOTE CONTROL
SWING
FAN
SPEED
TIMER
MODE
ON/OFF
HR
F
SIGNAL RECEPTOR
Auto fan speed
Low fan speed
Medium fan speed
High fan speed
Cooling
Fan only
Timer
Energy-saving
HR
F
Display set temp
Display set time
Power
Timer
Mode
Swing
Power Saver
Auto
High Low
Mid
Fan Speed
Temp/Time
