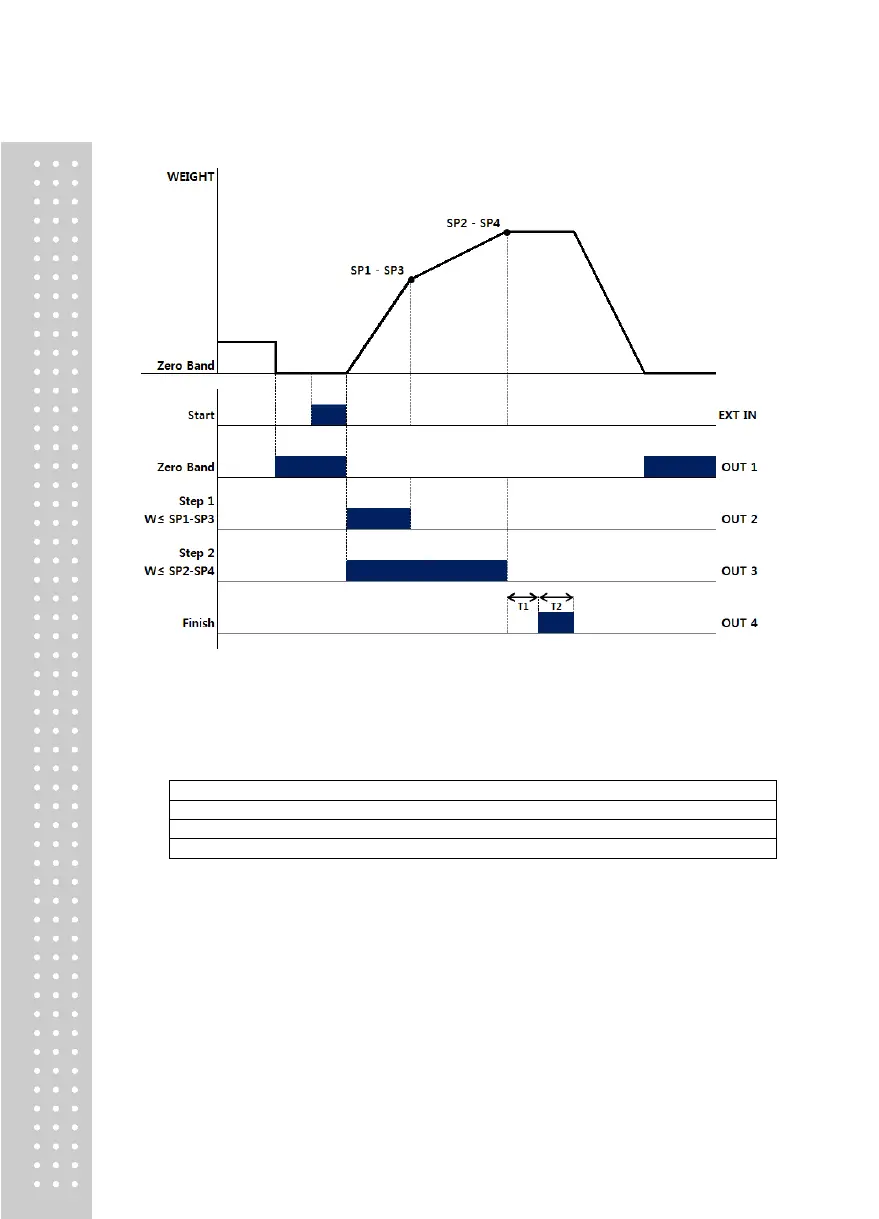

<Packer Mode>
Note.
1. Set value input requirement: SP2 > SP1
2. T1 : Start Delay Time for completed Relay
T2 : Operating Duration Time for completed Relay
EXT IN : Set the Start key
3. Relay Output
Step 1 : Start  ON, (W ≥ SP1 – SP3)  OFF
Step 2 : Start  ON, (W ≥ SP2 – SP4)  OFF
Finish : After Step2 and T1, ON for T2
Near zero: Set value ≥ 0 range output
