CAS CI-170A - Page 46

47

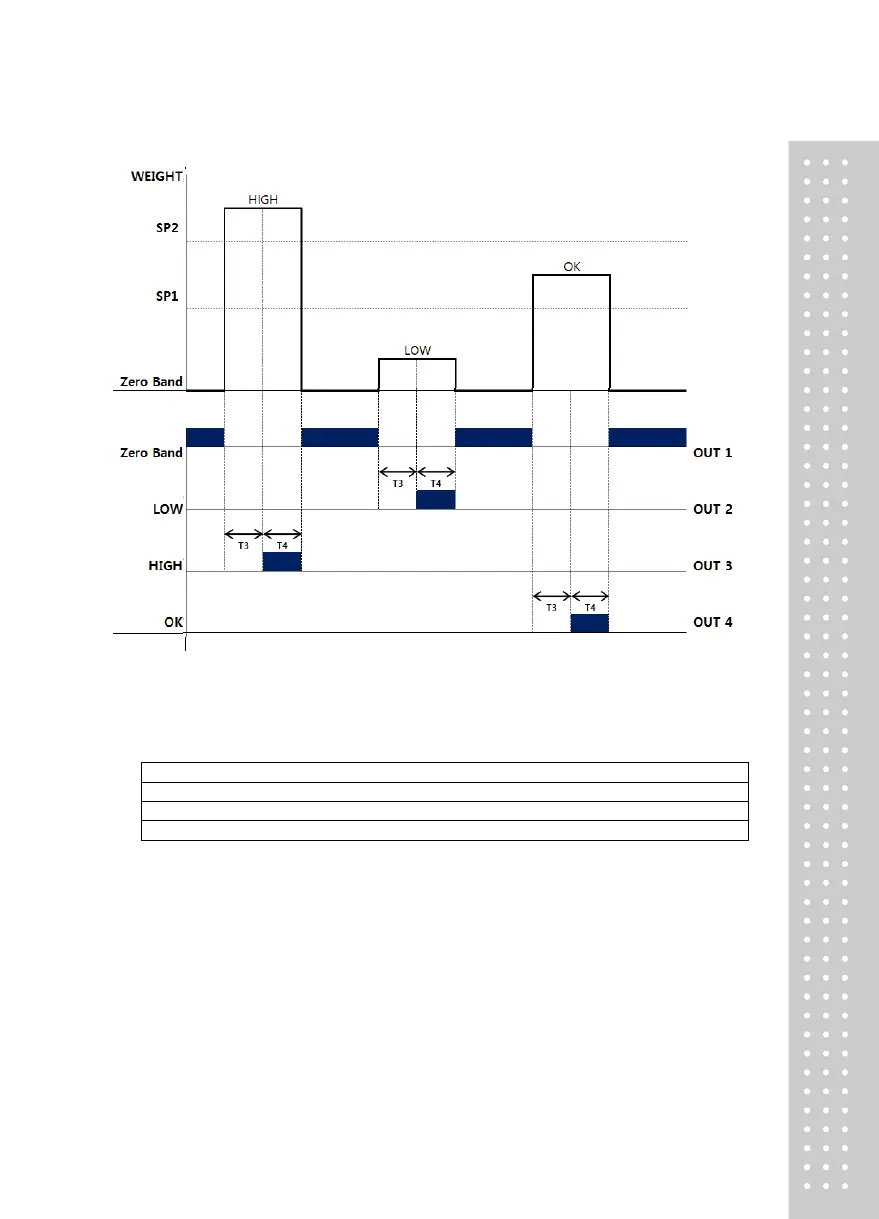

<Checker Mode 2>
Note.
1. Set value input requirement: SP2 > SP 1
2. Near Zero Set refer to GEN.20
3. T3 : Refer to EXIO-07 (Delay time of judgment-relay output)
4. T4 : Refer to EXIO-08 (Operation Time of Judgment-relay output)
5. Relay Output
LOW : SP1 ≥ W  ON
HIGH : W ≥ SP2  ON
Finish(OK) : SP1 < W < SP2  ON
Near zero: Set value ≥ 0 range output
6. Whenever stable, each output set.
7. No change the status until come back to the Zero Band
