CAS CI-170A - Page 47

48

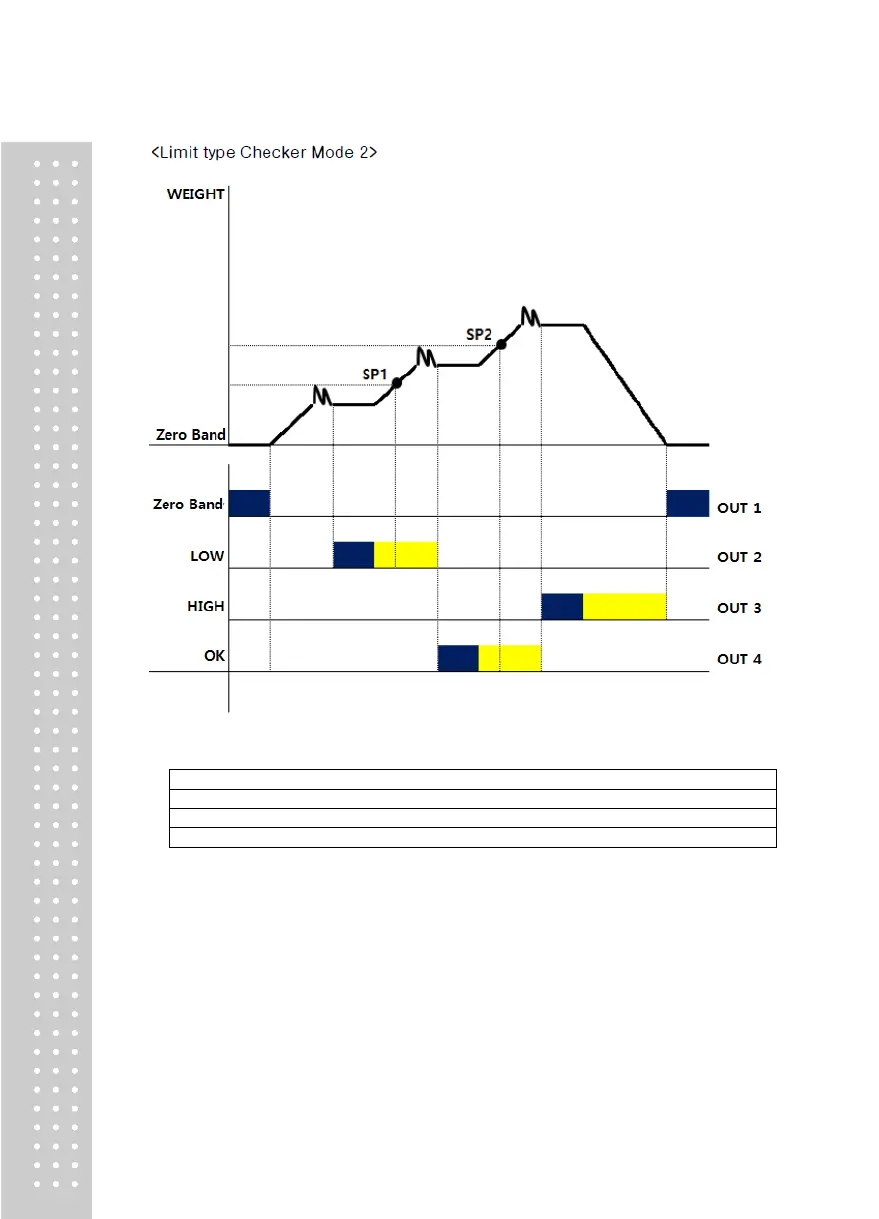

Note.
1. Set value input requirement: SP2 > SP1
2. Relay Output
LOW : SP1 ≥ W  ON
HIGH : W ≥ SP2  ON
Finish(OK) : SP1 < W < SP2  Stable  ON
Near zero: Set value ≥ 0 range output
3. Stabilize and maintain the previous output until the weight is determined.
