3. Installing the PM Drive:
The PM controller has 4 mounting locations, one at each corner. Mounting orientation
is not critical. The controller should be mounted in a location that is not exposed to
direct spray from water. Each mounting hole is sized to handle up to a M10 socket
head cap screw.
See PM250 Datasheet for more information on mounting the PM250.

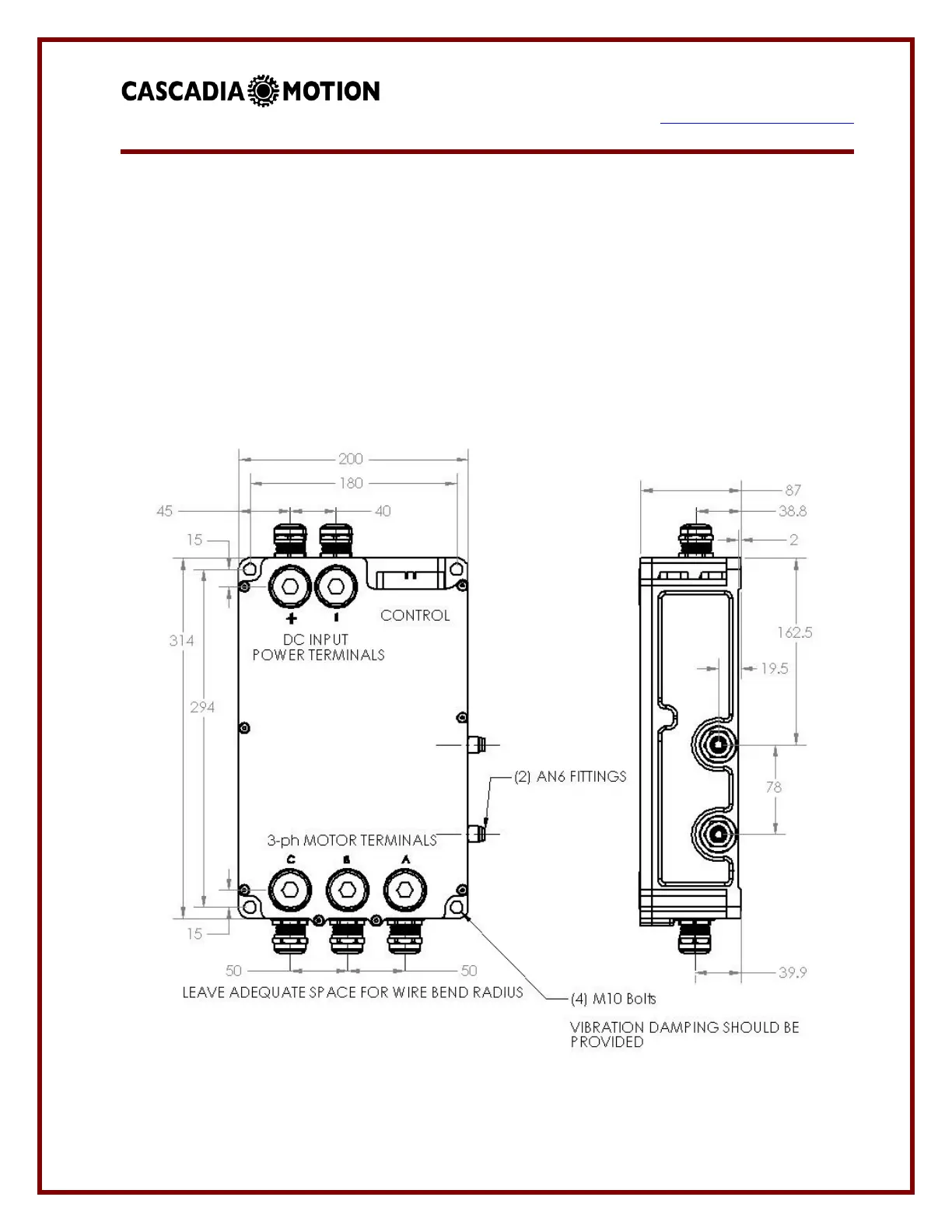

PM100 Dimensions – top and side views
