3-CONTROLSANDINSTRUMENTS

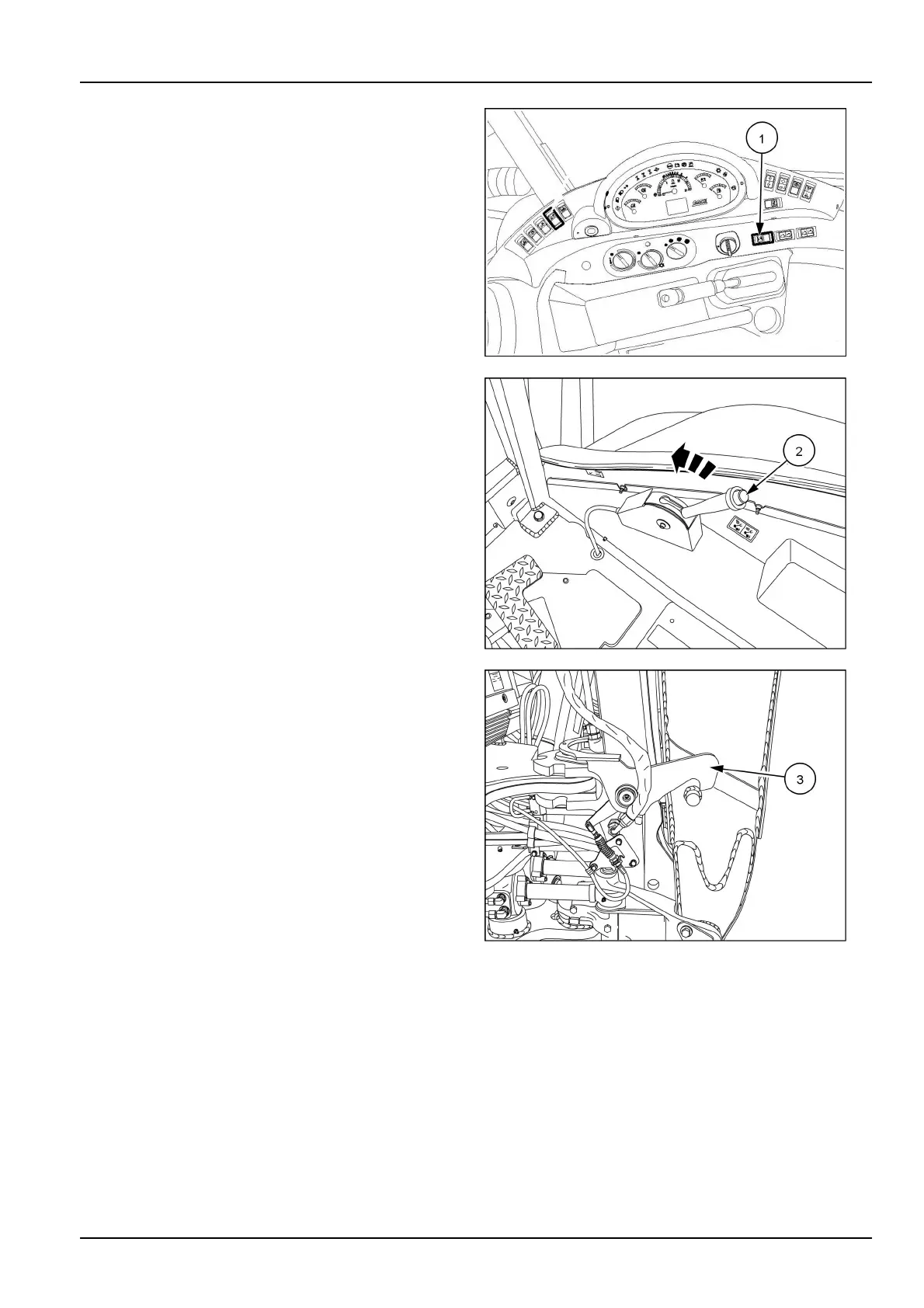

Removebackhoefromtransportposition
(mechanical)
1.Startthemachine.
2.PlacethedirectioncontrolleverinNEUTRALposi-
tion.
3.Ifapplicable,placegearshiftcontrolleverintheNEU-
TRALposition.
4.Turntheseatintothebackhoeoperationposition.
5.Lowerthestabilizerstothegroundsothattherear
tiresarejustofftheground.
6.Placethebackhoeattachmentsideshiftcarriagelock
switch(1)intheOFFposition.
7.Movetheboomallthewaytowardsyoutorelieve
pressureontheboomlock(3).
8.Pressthebuttononthebackhoetransportcontrol
lever(2)andmoveforwardtodisengagetheboom.
9.Ifapplicable,removetheextendabledipperlockpin
andplaceitinthestorageposition.
LEEN11T0311AA1
RAIL15TLB0050AA2
RAIL15TLB0051AA3
3-57
