4-OPERATINGINSTRUCTIONS

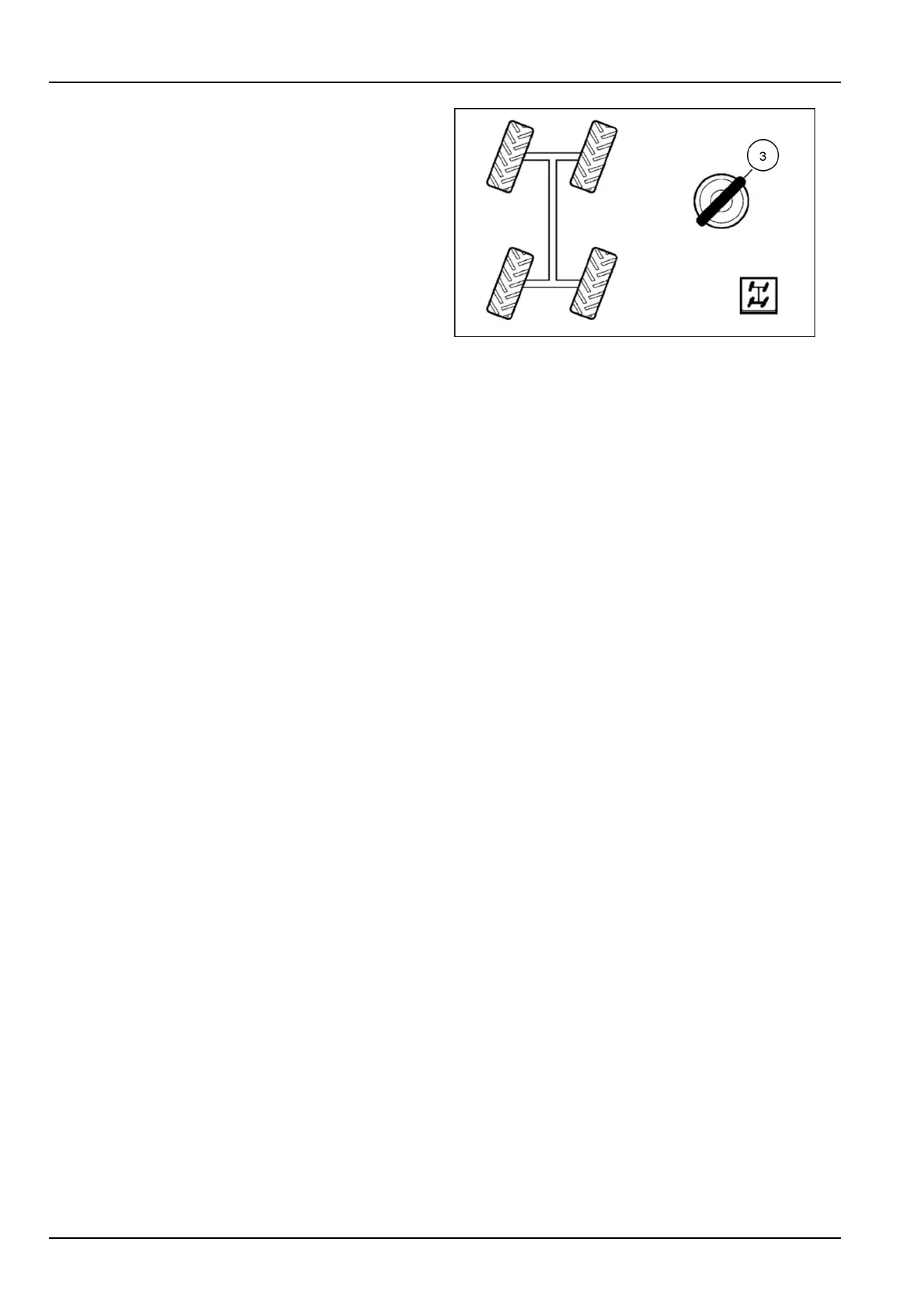

Crabsteer

(The4wheelsallsteerinthesamedirection).

Switchinposition(3).

Turntheswitchtotheright.Themachinewilltraveltothe

rightortheleft,inastraightlineandatanangleofupto15

degreestotherightorleftofthestraightaheaddirection.

LEEN11T0117AA4

4-16
