5-TRANSPORTOPERATIONS

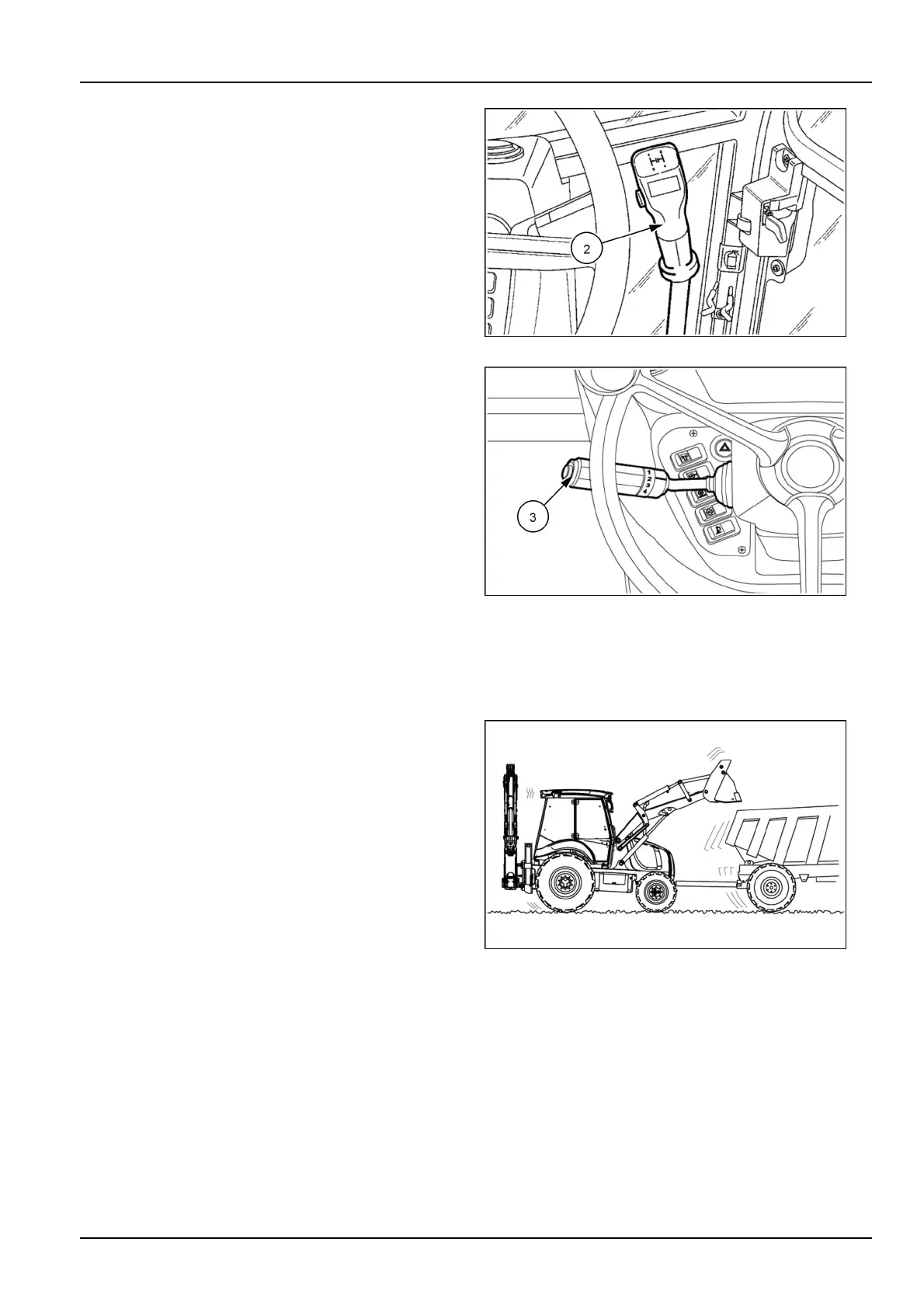

7.(Powershuttle)Placethegearshiftlever(2)inneutral

position.

LEEN11T0203AA2

7.(Powershift)Placethegearshiftlever(3)inneutralpo-

sition.

LEEN11T0204AA3

8.Iftheengineisrunning,makesurethe4WDisdisen-

gaged.

NOTE:Iftheengineisnotrunning,theforcenecessaryto

turnthesteeringwheelwillbehigher.

9.Totowthemachine,attachatowingbartooneofthe

hookingpointsshownbythedecals.

10.Makesuretheattachmentsareraisedsufcientlyto

avoidanyinterferencewiththegroundorthetrailer.

11.Ifitisnotpossibletoraisetheattachmentssufciently

toavoidinterference,thentheymustberemoved.

LEEN11T0205AA4

5-13
