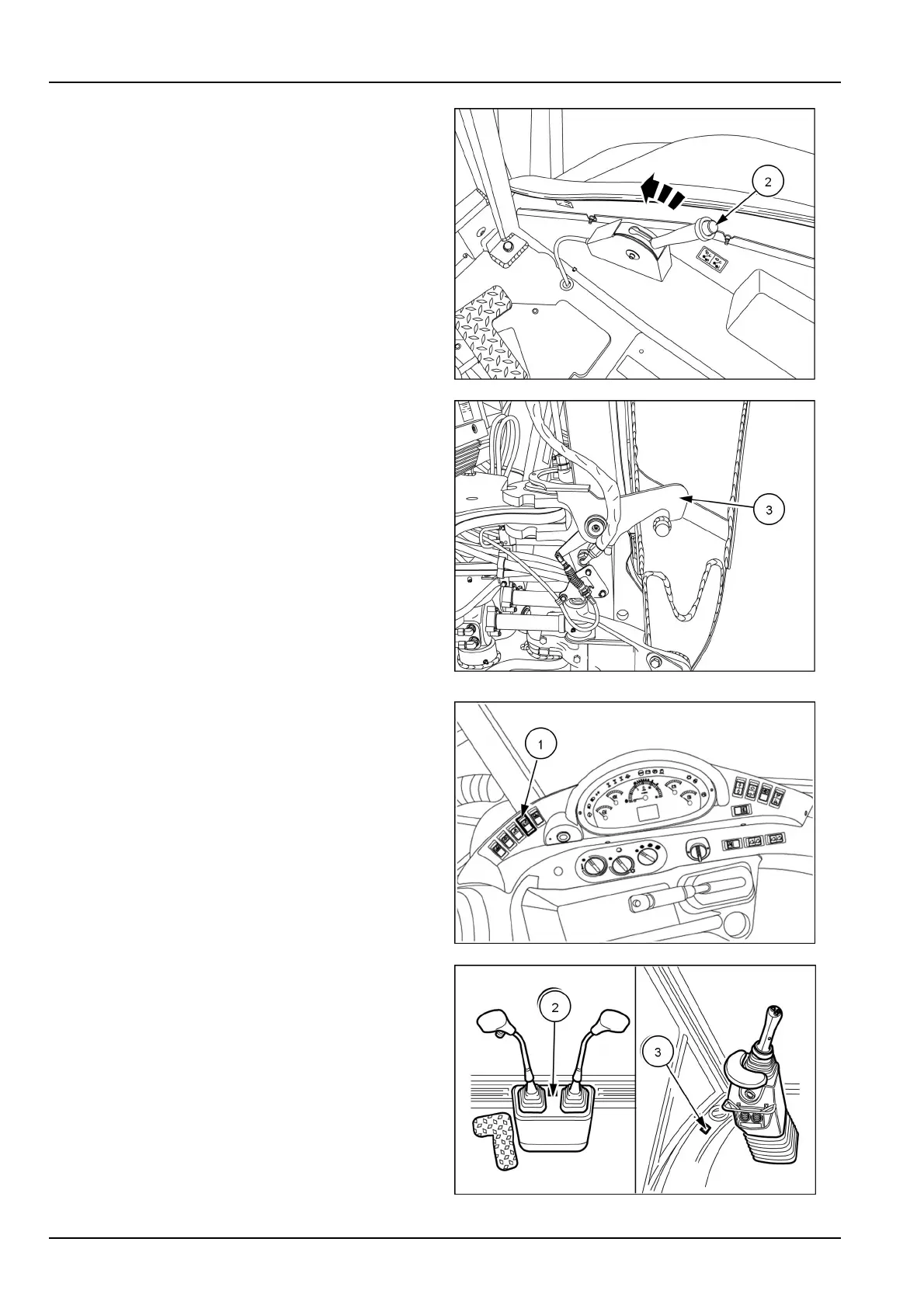

Mechanicaltransportunlock
A.Pressthebuttononthebackhoetransportcontrol
lever(2)andmoveforwardtodisengagetheboom.
B.Retracttheboomarmuntilthetransportlock(2)en-
gages.
NOTICE:Donotattempttousethebackhoeattachment
withtheboominthetransportposition,asthiscoulddam-
agethelockingsystem.
RAIL15TLB0050AA4
RAIL15TLB0051AA5
Hydraulictransportunlock
A.Placetheswitch(1)intheONposition.Theindicator
lamp(2)(mechanicalbackhoecontrolmodels)orthe
indicatorlamp(3)(pilotbackhoemodels)turnson.
B.Retracttheboomarmuntilthetransportlockengages.
LEEN11T0146AA6
