1-GENERALINFORMATION

LEEN11T0008FA_32

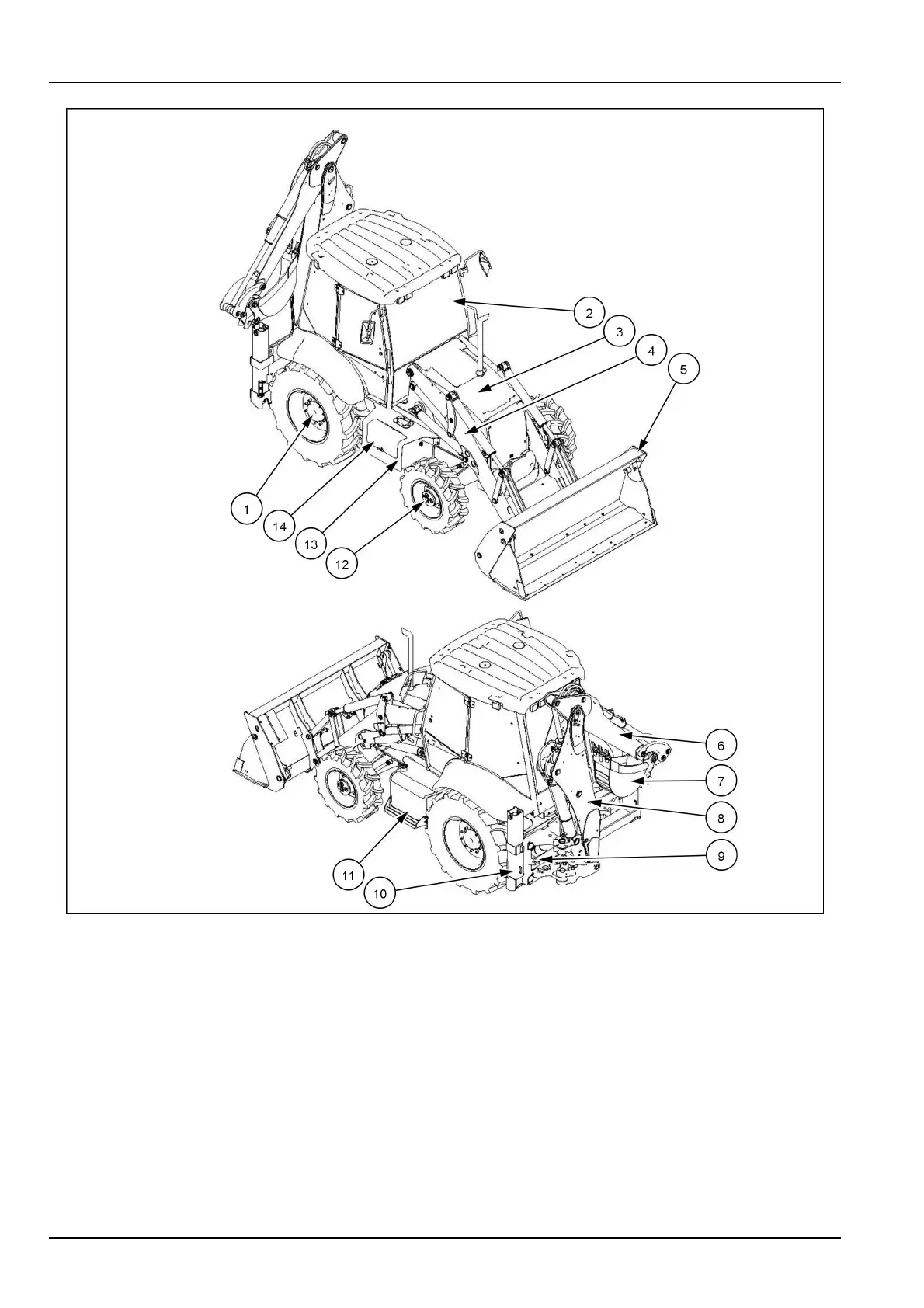

580T,580ST ,and590STallwithoverlappingcylinderboom

1.Rearaxle8.

Boom(overlappingcylinder)

Operator’scompartment-Cab

Side-shiftcarriage

3.Engineguard10.

Stabilizers

4.Loaderarm11.Fueltank

Loaderbucket12.Frontaxle

StandarddipperorOuterslidingdipper

13.Hydraulicoiltank

Backhoebucket14.Batterybox

NOTE:Straightloaderarmoptionisavailable.

1-14
