2-SAFETYINFORMATION

LEIL12TLB00003I20

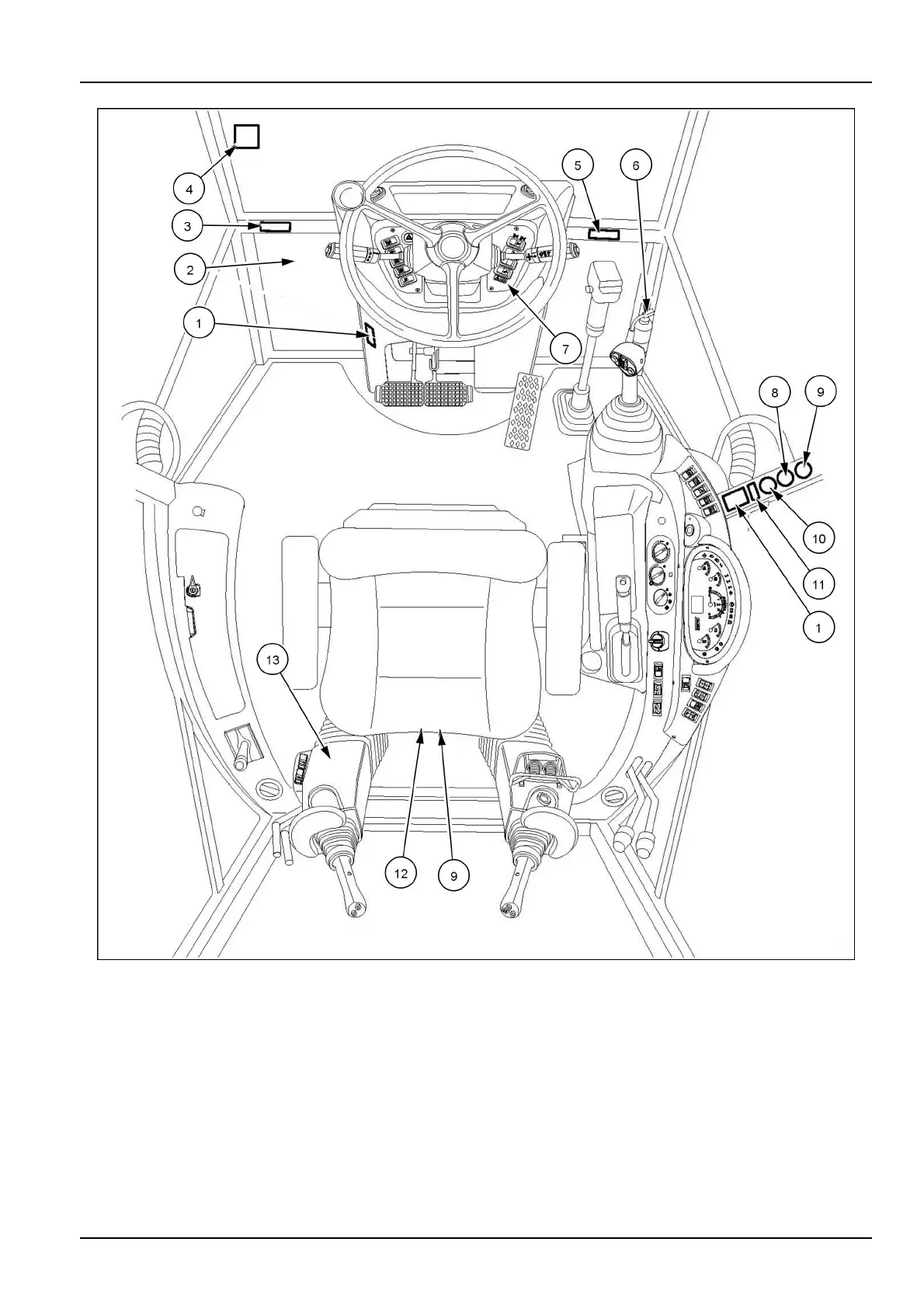

NOTE:Cabversionsafetysignsshown.Reviewthesafetysigndescriptioninthefollowingpagesforsignlocations

onmodelswithacanopy.

2-33
