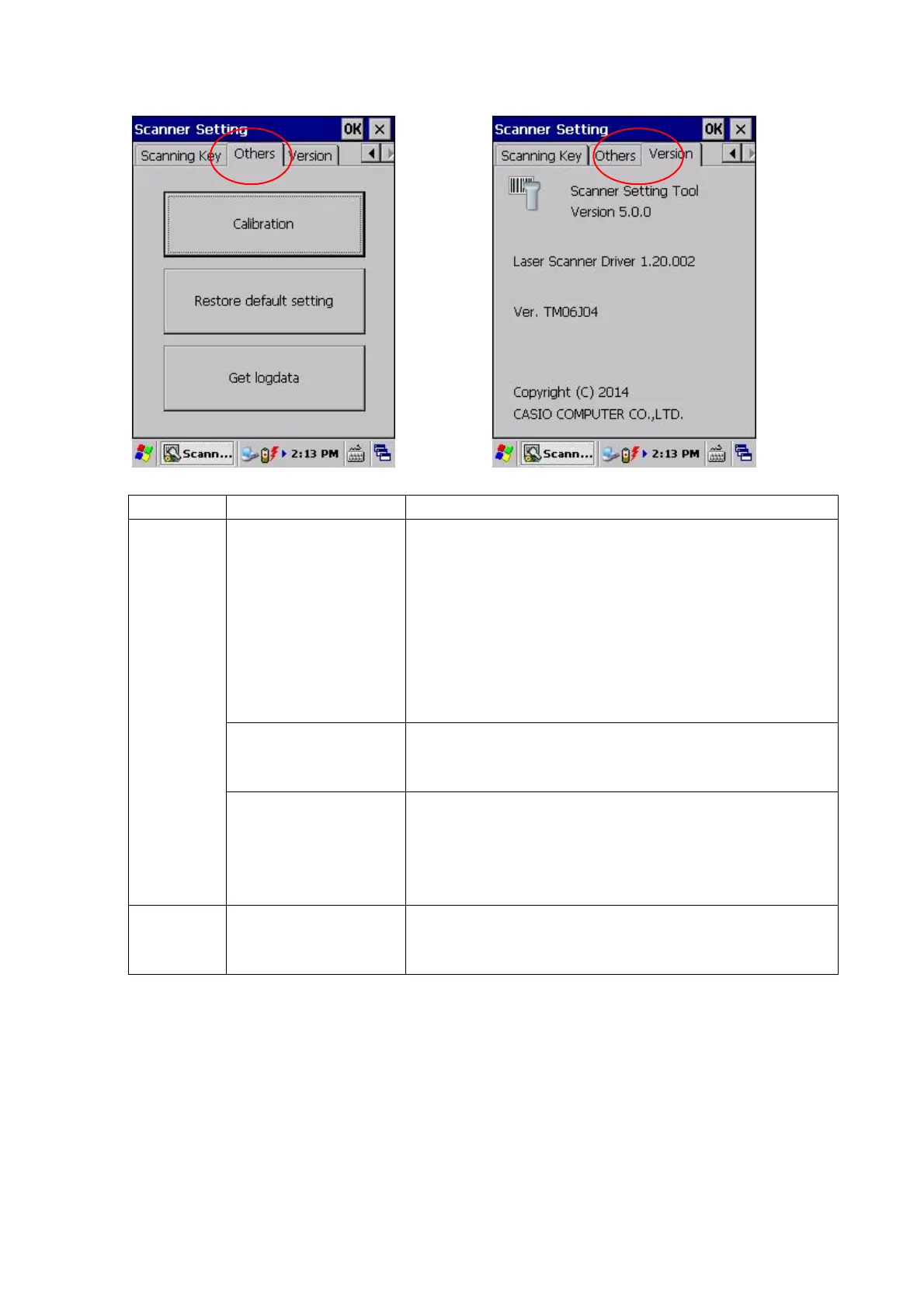

[Others]Tab [Version]Tab
Tab Item Explanation
Calibration Button
This button displays the OBR calibration screen to set up
the calibration of laser beam swing angle.
Follow the guidance appeared on the screen to complete
the calibration.
The swing angle has been set at the factory prior to
shipment.
Only if it is almost certain that the swing angle is not right,
adjust it in this mode.
Restore default setting
Button
This button resets setting contents and restores all the
settings to the default values.
Others
Get logdata Button
This button captures log information for both the scanner
and decoder units. The following are the log file names.
Scanner unit: “¥ObrLog.dat”
Decoder unit: “¥DecodeLog.dat”
Version
This tab displays version information for the Laser
Scanner setting tool.
