E-40
LAN Cradle (HA-R62IO)
The LAN Cradle allows a LAN interface to be used to transfer data between the IT-G400
and a personal computer. It can also be used to supply power to the IT-G400 and to charge
the battery pack.

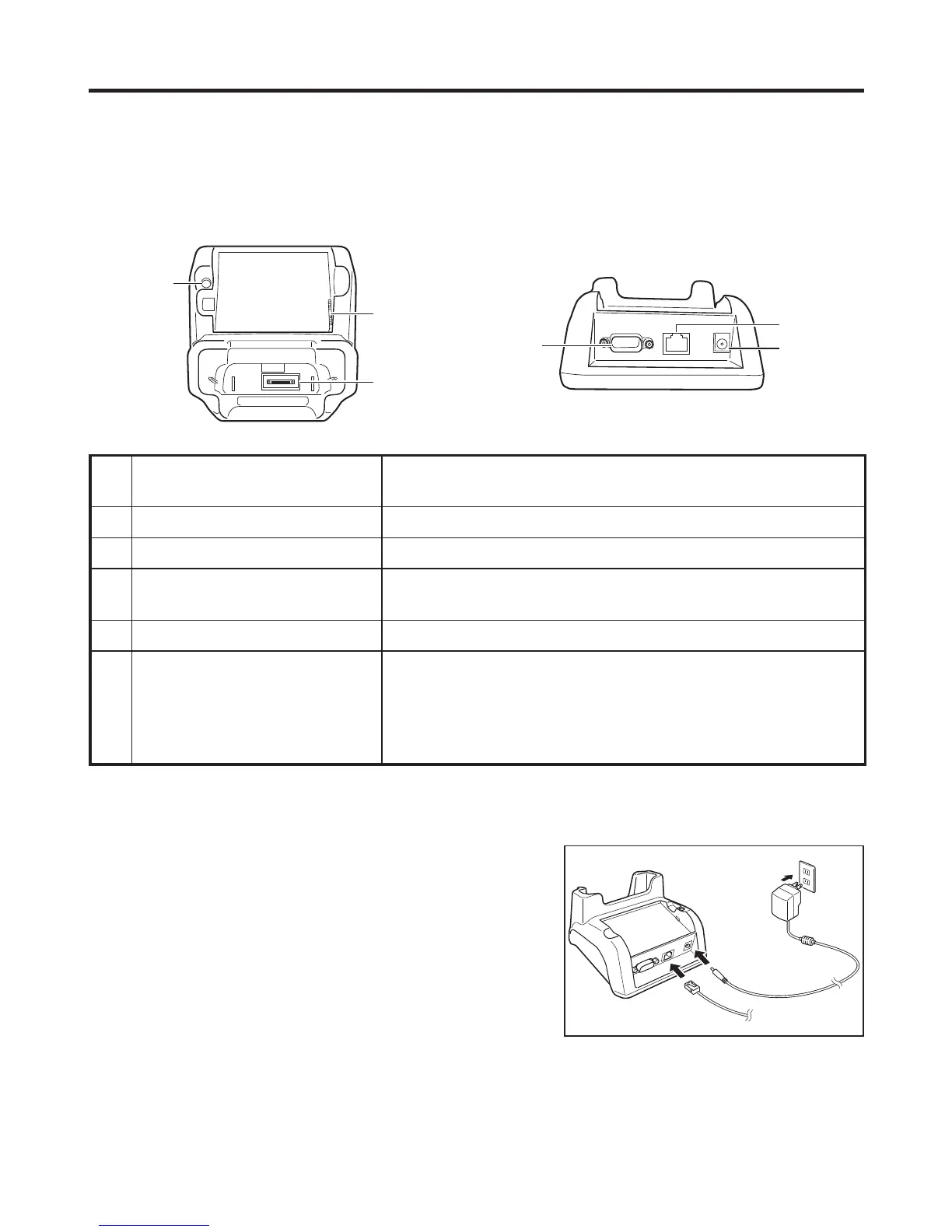

Part Names and Operation
<Top> <Back>
4
6
5
1
3
2
1 LAN port
Used to connect and transfer data to a personal computer or hub
via a LAN cable for data transfer.
2 Serial port The cradle features a serial port, but it cannot be used.
3 AC adapter jack Used to connect an AC adapter as a power supply.
4
Power supply/
data communication terminal
Used to supply power to the IT-G400 or for data communication.
5 Battery pack power contacts Used to charge the battery pack.
6
Battery pack charging status
LED
Shows the charging status.
Red: Charging
Green: Charging complete
Flashing alternately red/green: Battery pack fault or outside
charging temperature range
Installing and Connecting the Power Supply
Use the supplied AC adapter as the power supply for the LAN cradle.
1. Plug the AC adapter into the AC adapter jack
on the back of the LAN cradle.
2. Plug the AC adapter into a mains power outlet.
3. When using a LAN, plug the LAN cable into
the LAN port and then connect the cable to the
computer or to a hub.
