Connecting multiple sources through HDBaseT
HDBaseT of this model combine HD digital video, audio, and a control signal. With the use of
HDBaseT transmitter (commercially available), you may connect multiple sources to your
projector with HDBaseT connection.

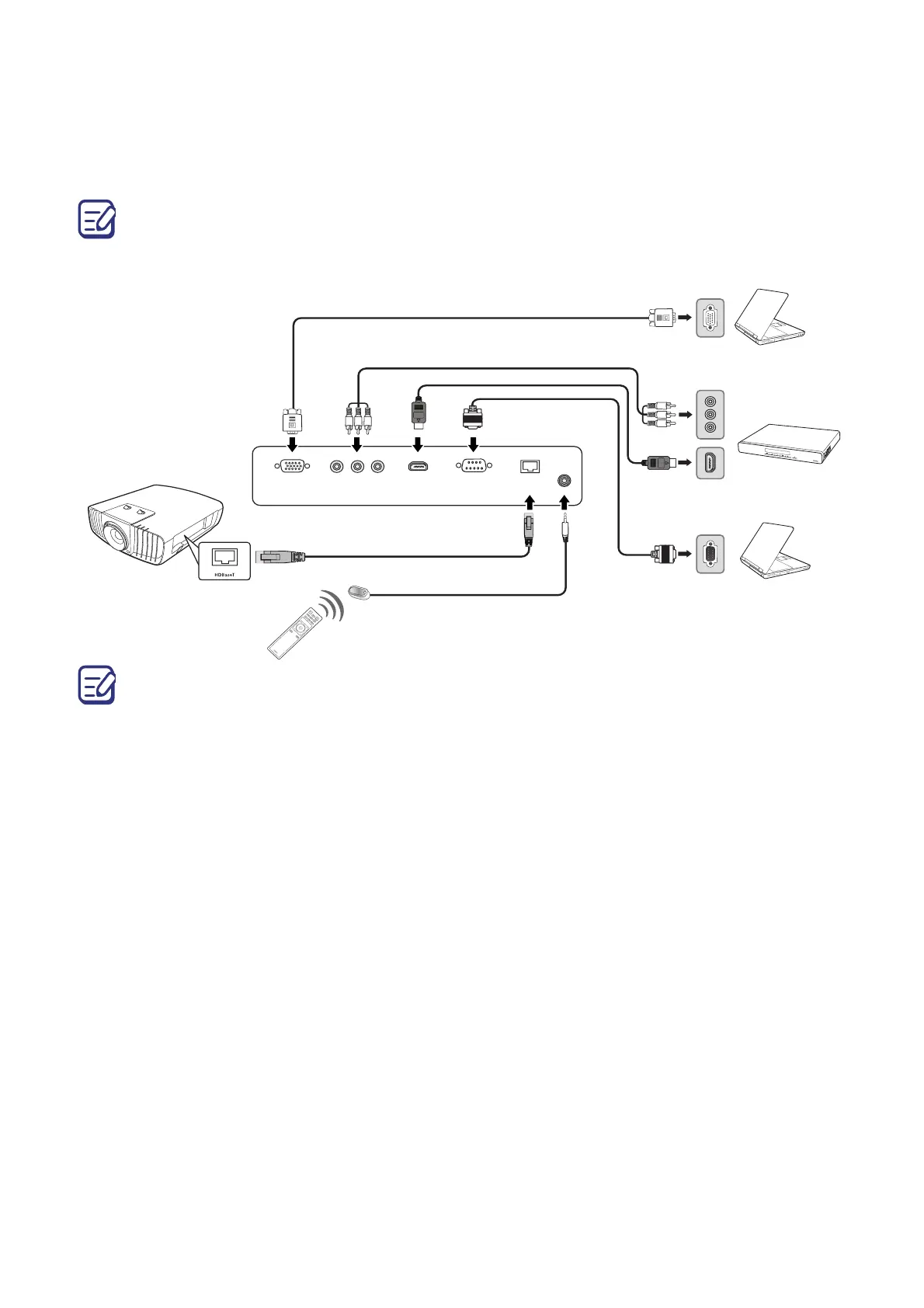

The illustration below is for reference only, actual layout may vary.
• Use the following types of LAN cables:
- a shielded LAN cable rated at CAT5e or better
- Twisted pair LAN cable
- Single wire
- Straight cable
• Maximum transmission distance is 100 m.
• However, maximum transmission distance may be shorter in some environments.
• Do not use the LAN cable when it is coiled or bundled.
• Inserting or removing the LAN cable during projection may cause noise.
• Connectivity with all HDBaseT transmitters on the market is not guaranteed.
• Some HDBaseT transmitters may not enable correct projection when used to connect source equipment
to the projector.
• Commands cannot be received through HDBaseT when the projector is in standby mode.
VGA IN YPbPr HDMI RS232 RJ45
HD Connect
IR RX
Notebook computer
Blu-ray player
Control computer
HDBaseT transmitter
Projector
LAN cable
IR extender
Projector
remote
control
To Next Page
