230 Series Auger Packer
73 OF 115

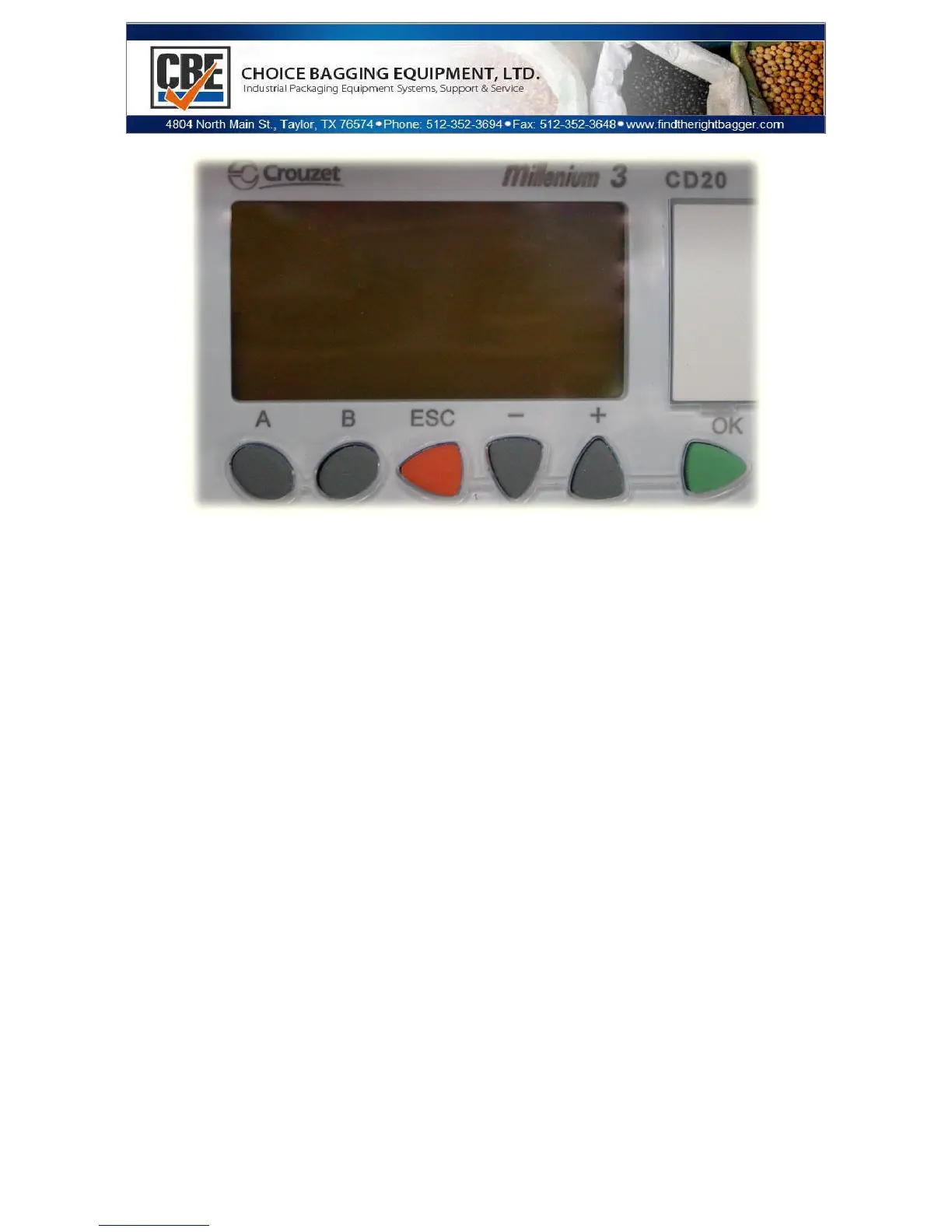

Timer Adjustment Procedure for PLC
A Button is used to scroll through the Timers
B Button is used to scroll back
When you get to the function you want to adjust you will push the OK key to select
that function. (When the time is selected the numbers will flash on and off. When it is
not selected blocks will flash over the time.)
Then use the + and – keys to adjust the timer up and down in 0.1 second increments.
The Order of the timers
1- Choice Bagging
2- Feed Gate Timer
3- Bag Chair Timer
4- Tube Clean Out Timer/ Reverse Timer on Auger Packers
5- Input Output Screen
