CBE PC100 - Diatribution Box Ds 300

AUX
B
A
1
3 5 7 9
2
4 6 8
-B2 +B2 +B1
1 2 3 4
1 2
1
9
8
16
19
18A
15
11
14
16
17
13
222120
12
10

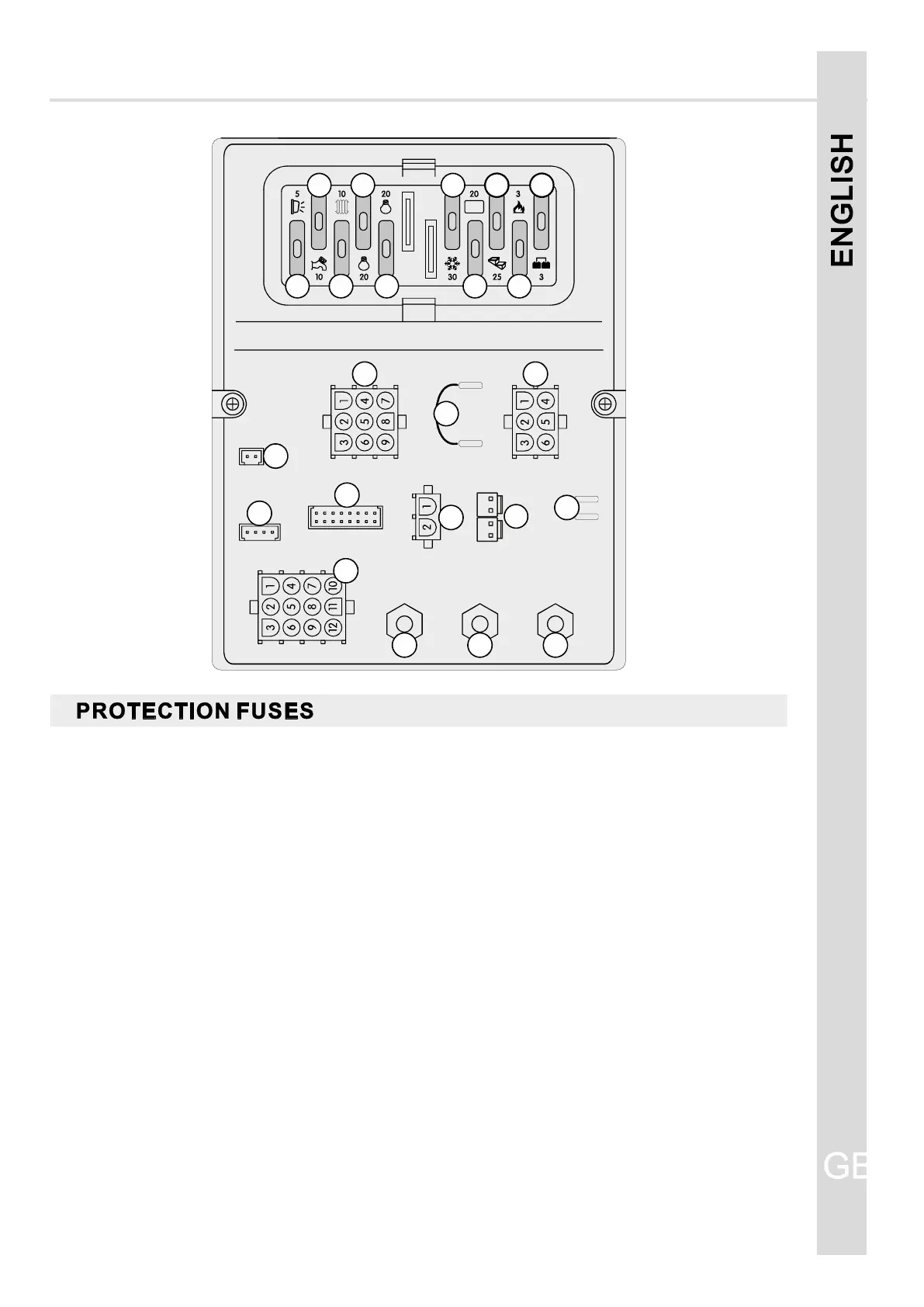

DISTRIBUTION BOX “DS300”
GB
15
12) Simulated output D+ alternator to control the electrical step, AES refrigerator, electrical draining valve,
coming-back of the electrical antenna.
1) 5A fuse to give power to the awning light, it depends on the awning switch and it switches automatically
off when the engine is started.
2) 10A fuse to give power to the water pump, it depends on the pump switch.
3) 10A fuse to give power to the heating/boiler, it depends on the lights switch (PC200) or on the main
general button (PC100).
5) 20A fuse to give power to the lights group “B”, it depends on the lights switch (PC200) or on the main
general button (PC100)
6) 30A fuse to give power to 12V AES or 3-way function fridge. The 3-way function fridge switches
automatically off when the engine is off.
7) 20A fuse for the auxiliary power supply (solar regulator), which is directly connected to the leisure (B2)
battery.
8) 25A fuse for the electrical step power supply, connected directly to the leisure (B2) battery.
9) 3A fuse for the gas power supply (fridge, kitchen, boiler valve, etc.), Connected directly to the leisure
(B2) battery.
4) 20A fuse to give power to the lights group “A”, it depends on the lights switch (PC200) or on the main
general button (PC100)
10) 3A fuse for OUT D+ simulated exit protection.
11) AES fridge connection; It is a bridge, which excludes the 3 way function fridge and is used to connect
the AES fridge directly to the B2.
1 B8
