LED Flashing On
6
WIRELESS
Amber: WPS function is
enabled.
Green: Wi-Fi wireless interface
is active now.
Rear Panel

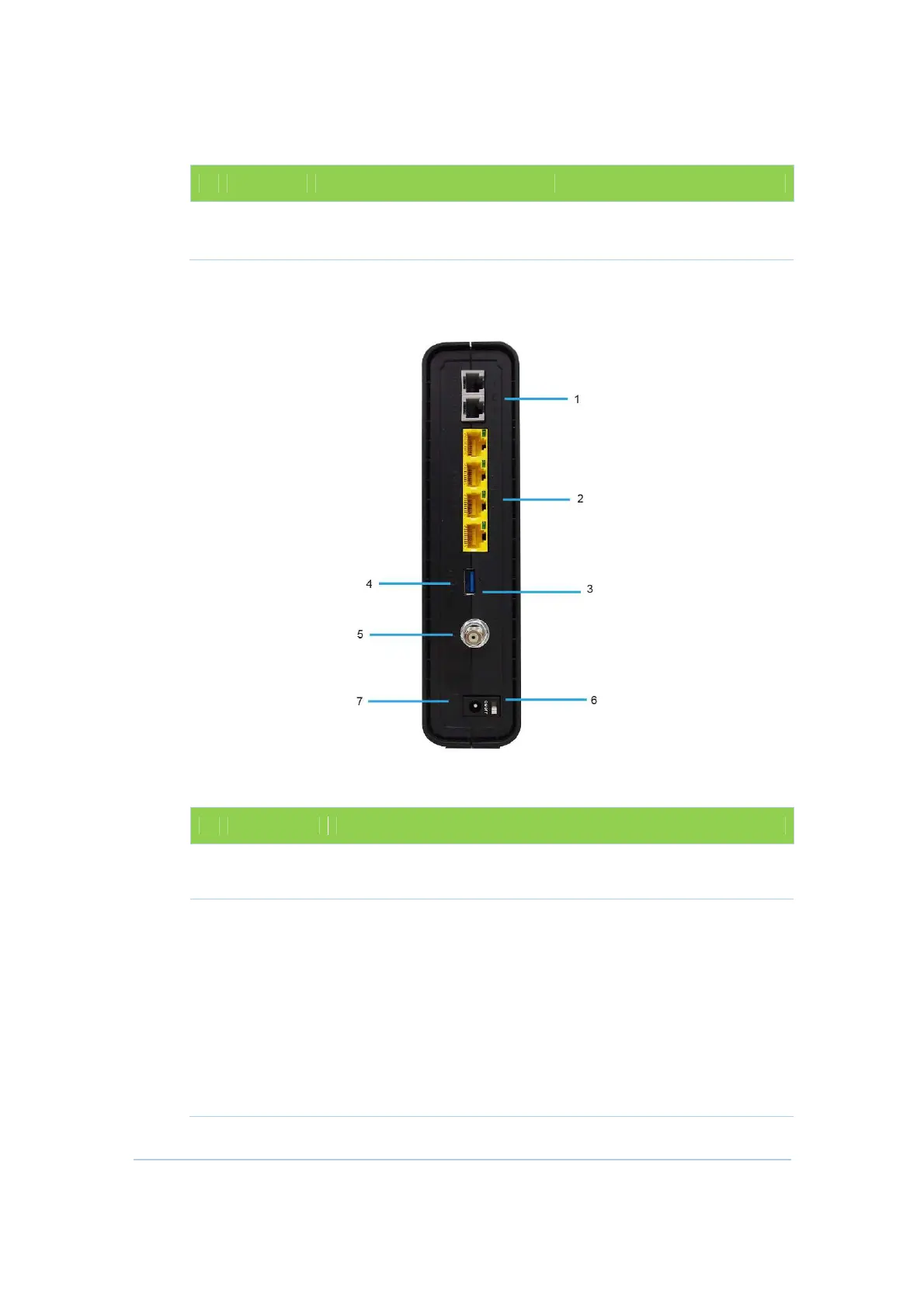

The CH6643E (shown above) rear panel contains the following cabling port and
connectors:
Item Description
1
TEL 1
TEL 2
VoIP connection for a single telephone. Two sets of
telephone can be supported.
2
ETHERNET
1 2 3 4
Use any Ethernet port to connect an Ethernet-equipped
computer, hub, bridge, or switch using an RJ-45 cable.
Activity LED - Green LED defines the activity of the Ethernet
connector.
When LED is ON, this indicates that there is no data traffic
and a connection is stabilized.
When LED is FLASHING, this indicates that there is data being
transmitted upstream or downstream.
When LED is OFF, this indicates that the unit is not powered or
