Bench Saw CTS•81, L, XL
Operating Manual 70 9998 0329 / UK 003
1. General Product Information
1.1 Description of the Bench Saw

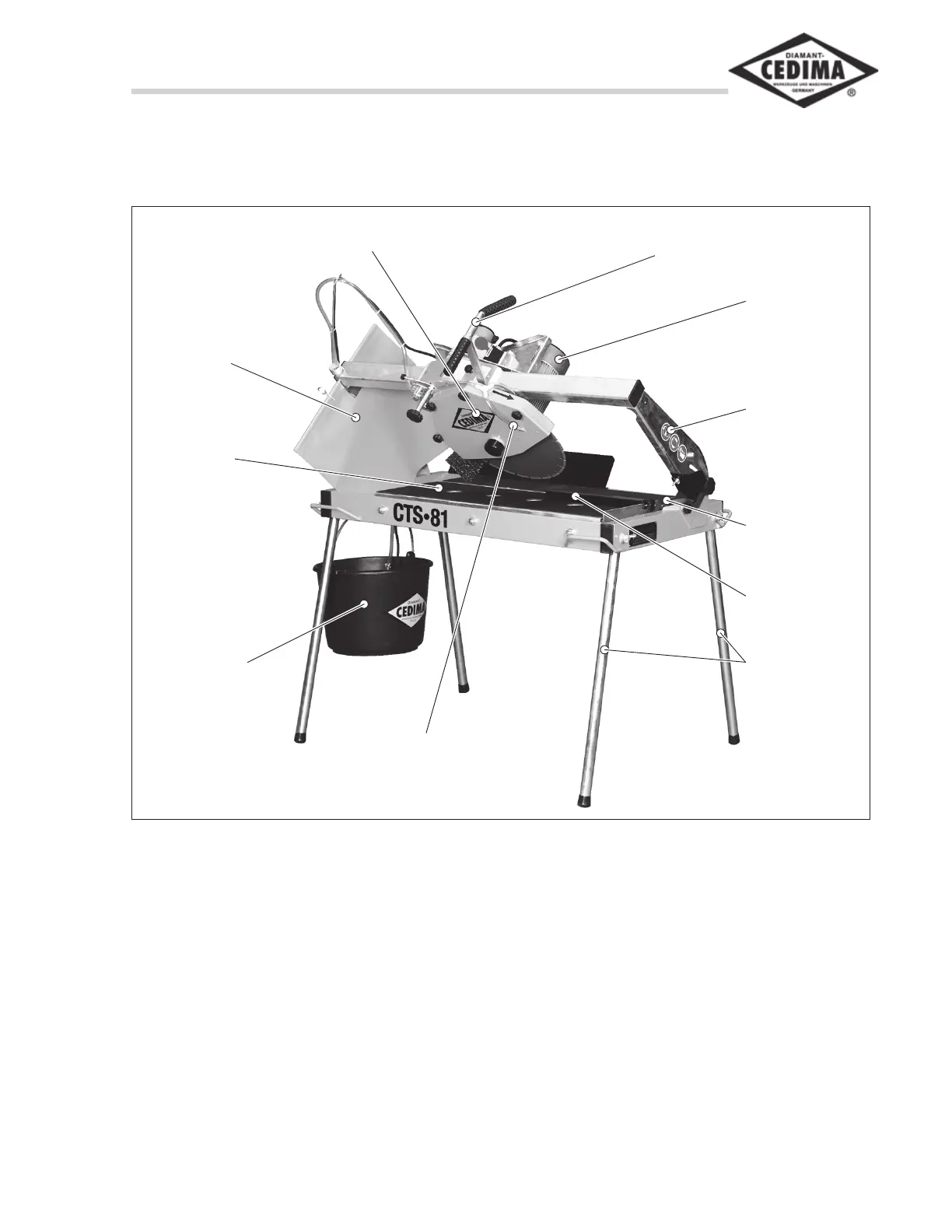

Fig. 1.1 Features of the Bench Saw CTS•81
Precise swivel-joint cut-
ting head
20-litre bucket for
cooling water and
wet-pit pump
Insert table with
anti-skid rubber
coating
Water feed through
blade guard and
stripper brushes
Powerful
2.2kW motor
Splash guard co-
vering 3 sides of
the machine
Hinged guide
rail for mitre
cuts up to 45
degrees
Handles for right- and left-
handed operators
Limit stop
Adjustable si-
de stop
Detachable
plug-in feet
The Bench Saw CTS•81 (fig. 1.1) is a professio-
nal multi-purpose saw that can be used for cutting
floor tiles, paving stones, stairs, larged-sized na-
tural stone plates, and similar materials.
The Bench Saw is characterized by its sophistica-
ted, practice-oriented design:
• The workpiece rests on the rubber-coated anti-
skid work table while the swivel-joint cutting
head is pulled along a guide rail during the cut-
ting operation.
• A limit stop and an adjustable side stop ensure
the precise alignment of the workpiece.
• The work table hanging in the frame can be re-
moved easily for cleaning or transporting the
saw.
• A 20-litre bucket hanging below the frame col-
lects the cooling water used during the cutting
operation. This allows the contaminated coo-
ling water to be replaced quickly and easily.
• A wet-pit pump conveys the cooling water
from the bucket direct to the saw blade. It is al-
so possible to put the pump into the water trou-
gh.
