- 22 -

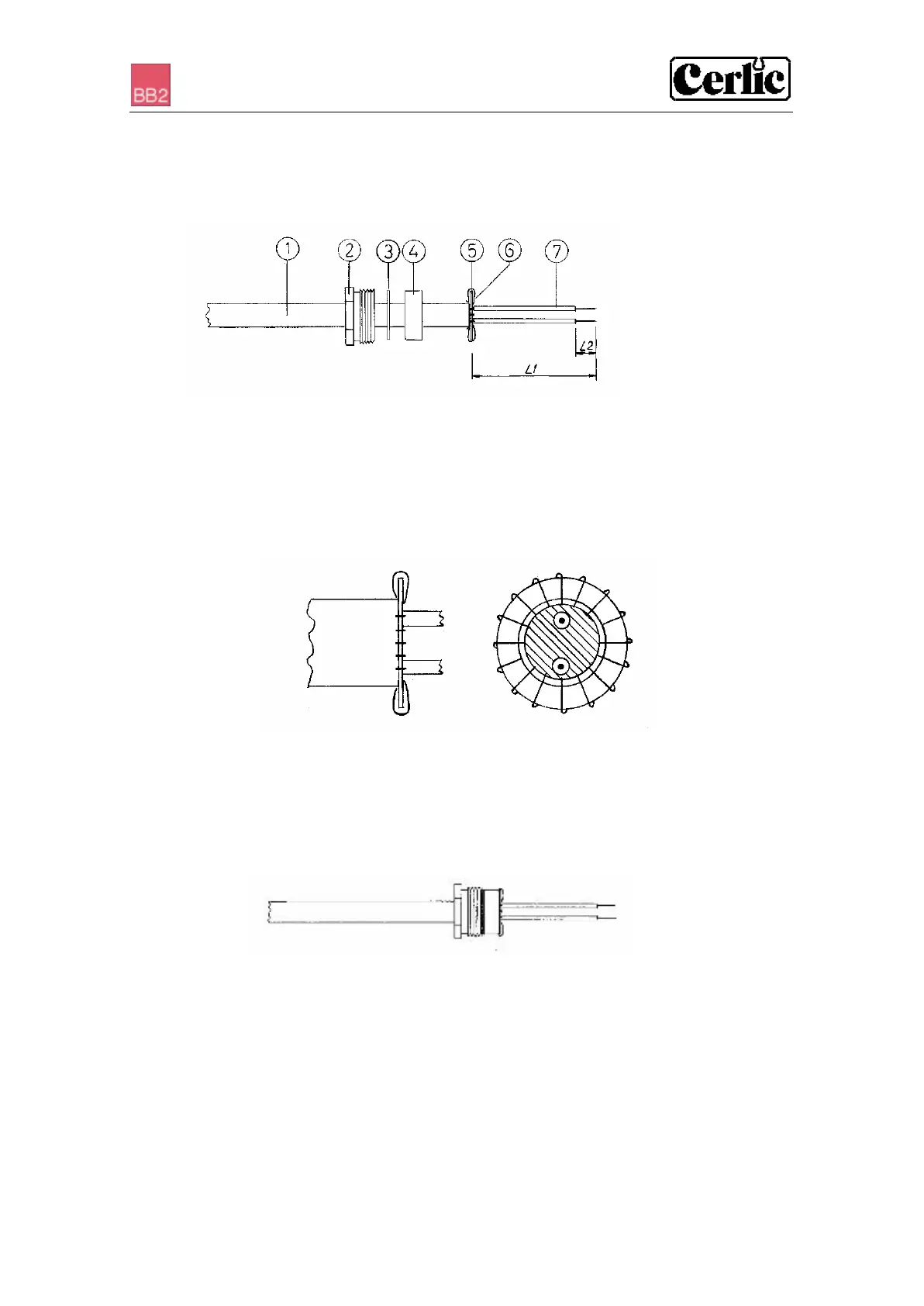

APPENDIX 2, Connection of shielded cable to fitting
Illustration 1: Cable with fitting details
1. Insert the cable through fitting (2), washer (3), rubbersleeve, (4) and washer (5).
2. Remove 90 mm (L1) of the cable covering.
3. Strip the end of the signal wires. The stripped ends should be approx. 7 mm (L2).
Illustration 2: Connection of the cable -shield to the washer
4. Cut the shield to a length of approx. 20 mm. Entwine the shield.
5. Thread the entwined shield around the washer (5). Trim the shield-threads to an appropriate
length so that the connection resembles illustration 2.
Illustration 3: Shielded cable and fitting ready to be attached.
6. Press the cable fitting parts gently together. Be careful not to damage the cable shield
connection to the washer. The cable and fitting are now ready for attachment to the signal
control box.
