APPENDIX 3, shielded cable without fitting

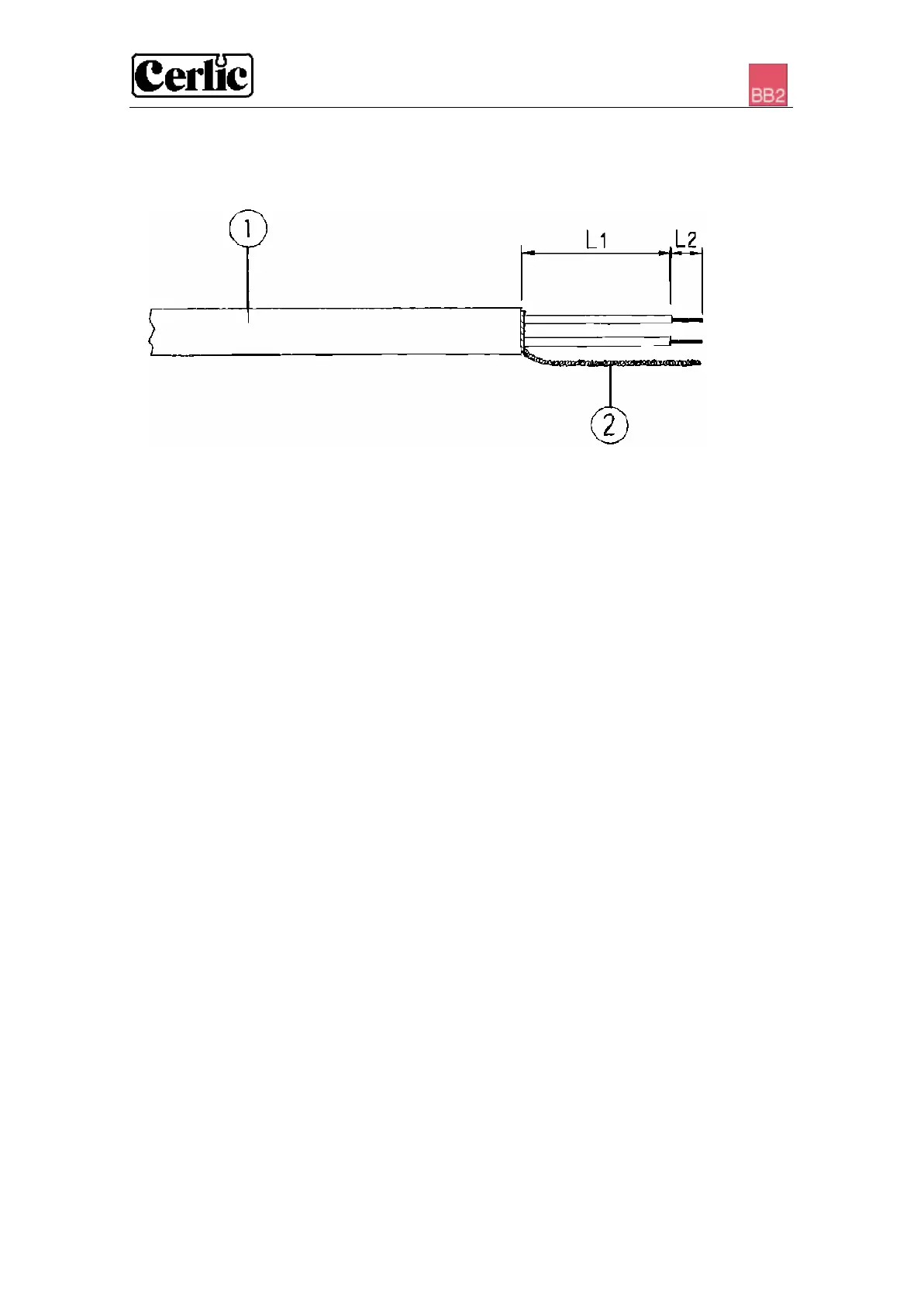

Illustration 1: Shielded cable with plait.

1. Remove to 90 mm (L1) of the cable covering

2. Tear the cable shield open and twine it to a plait (2)

3. Cut the signal wires to shortest possible length (L1) and add 10mm for L2.

L1 should not be more than 25 mm.

4. Peel off the signal wires to L2 (10mm).

5. Connect the signal wires to the plinth.

6. Connect the plait (2) to nearest protector ground or protector ground rail in order to provide

proper ground connection. The shorter the length of the plait the better.
