APPENDIX 4, Extending Shielded Cable
1. Open the enclosures lid on the shielded box and fasten the box where appropriate.

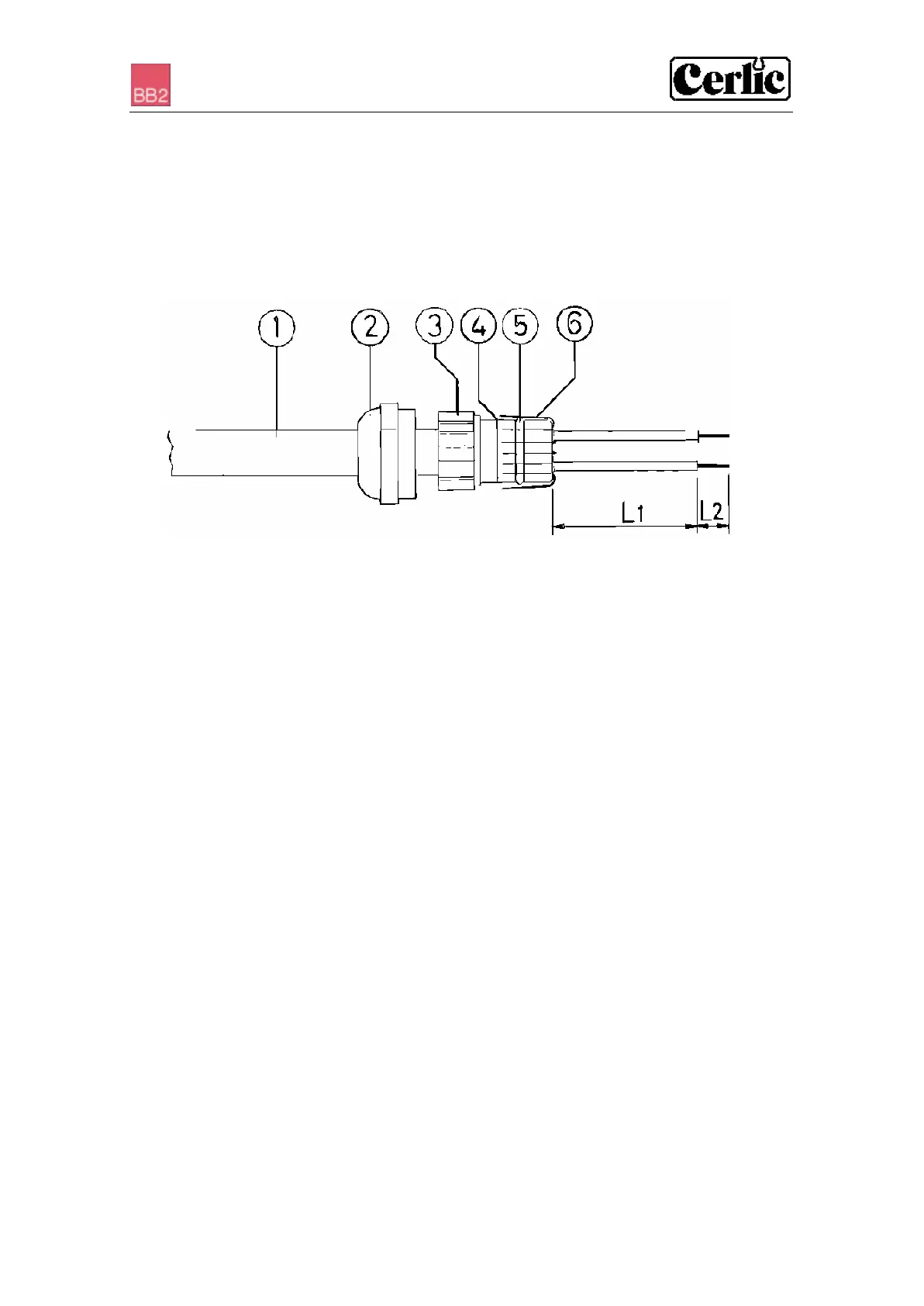

Illustration 1: Cables with shield and fitting.
2. Put the fitting (2) and container (3) on the sensor cable.
3. Peel the covering off the cable (1) to L1 (90 mm).
4. Cut the cable shield (6) to 12 mm and fold it back over the O-ring (5) to the edge (4).
5. Press the container (3) to fit the female connector in the box and tighten the fitting.
6. Repeat no 2-5 at the extension cable.
7. Cut the signal wires to suitable lengths and connect to the connecting terminal in the box
(L2 = 7mm).
8. Close the lid of the shielded box tight.
