46

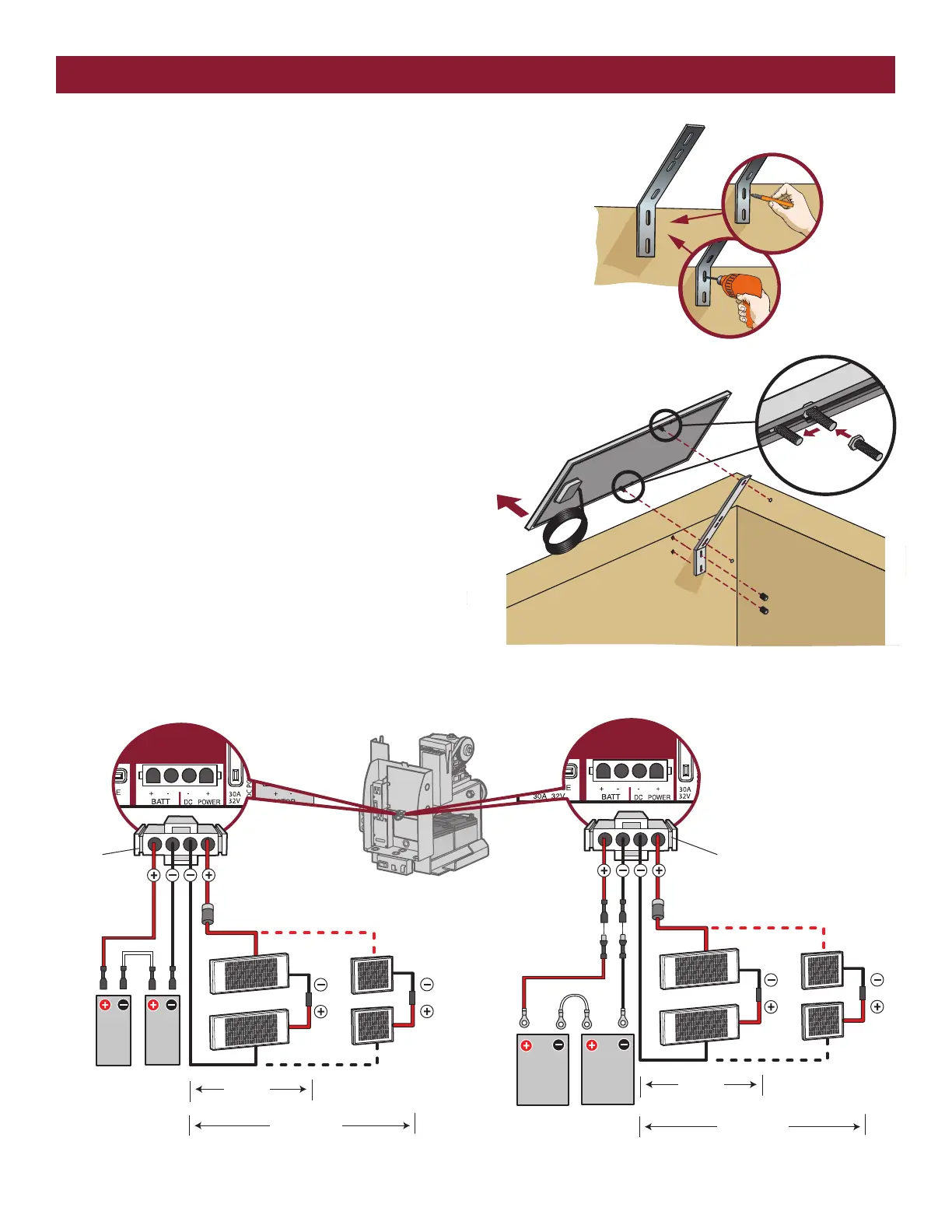

INSTALL THE SOLAR PANEL
1. Position solar bracket on mounting surface. Mark and drill holes.
2. Insert two bolts into the track located on the back of the solar
panel(s).
3. Slide bolts in track away from bolt hole and align both bolts.
4. Secure solar panel(s) to solar bracket using two washered nuts.
5. Secure solar panel(s) assembly to mounting surface using appropriate
hardware.
Mounting Surface
Mounting Surface
Mounted Panel
Must Face South
APPENDIXAPPENDIX
STEP 6 continued...
SOLAR PANEL(S)
33AH Batteries
J15 Plug
(Solar Harness Kit,
Model K94-37236)
Red Wire (+)
60W solar panel
installation
60W solar panel
installation
10W
10W
WIRE THE SOLAR PANELS
J15 Plug
(Solar Harness Kit,
Model K94-37236)
7AH Batteries
40W solar
panel
installation
40W solar
panel
installation
10W
10W
20W
20W
Diode
20W
20W
Red (+)
Red (+)
Black (-)
Black (-)
Red (+)
Black (-)
Jumper
Black (-)
Proceed to the Dual Gate section (if applicable) or proceed to the Adjustment section.
7AH BATTERY APPLICATION
33AH BATTERY APPLICATION
Diode
Red (+)
Black (-)
Black (-)
Red (+)
Jumper
Solar panel applications require the Solar Harness Kit model K94-37236 (refer to Accessories).
