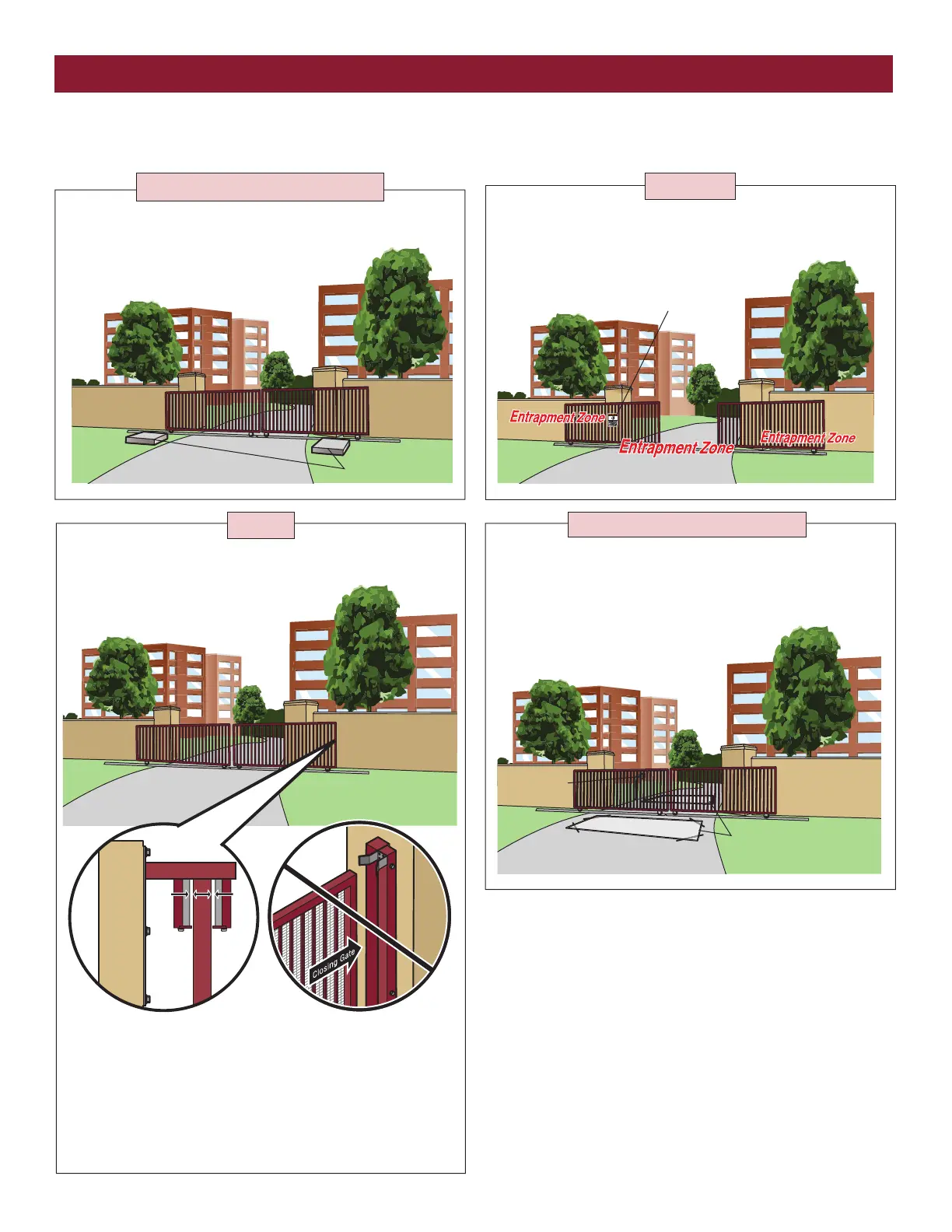

SITE PREPARATION
INTRODUCTION
Gate must be constructed and installed according to ASTM F2200
standards (refer to page 4). Gate must fit specifications of operator
(refer to specifications).
GATE
Install catch rollers with safety
covers on the side of a post or
wall with a minimal distance of
half an inch between the rollers
and gate.
DO NOT use a gate catch post.
Because the coasting distance
may vary due to changes in
temperature, it is NOT
recommended to install a catch
post in front of the gate's path.
To do so will cause the gate to
hit the post in certain instances.
SAFETY CATCH ROLLERS
Check the national and local building codes BEFORE installation.
Conduit must be UL approved for low and high voltage. Consider
the operator placement BEFORE installing the pad or post.
Concrete Pads
CONDUIT & CONCRETE PAD
Warning Signs
SAFETY

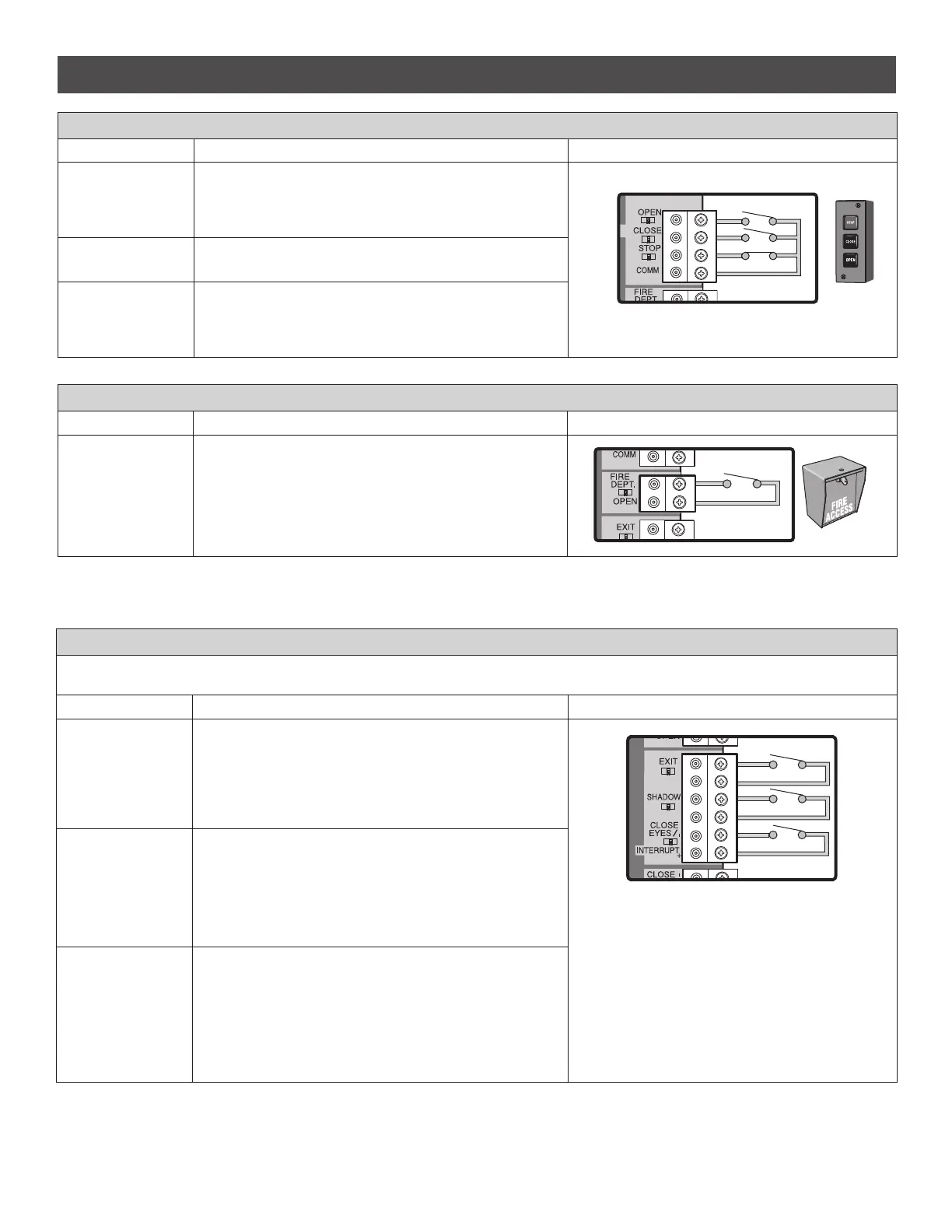

ADDITIONAL ACCESSORIES
The vehicle loops allow the gate to stay open when vehicles are
obstructing the gate path. Suggested for vehicles 14 feet (4.27 m) or
longer. Vehicle loops are not required but are recommended. Before
installing your Access Control Device(s) be sure
to complete a site survey and determine the
best device for your site needs.
(Inside Property)
Entrapment protection devices are required to protect against any
entrapment or safety conditions encountered in your gate
application. Install a warning sign (two provided) on the inside and
outside of the property, where easily visible.
Vehicle Loops
Access Control
Device
(Inside Property)
(Inside Property)
(Inside Property)
