47
APPENDIX
FEATURE PRIMARY OPERATOR SECONDARY
OPERATOR
QUICK CLOSE
Switch
ON OFF
ANTI-TAIL Switch ON OFF
LOW BATT Switch Battery Fail OPEN:
OPEN
Battery Fail CLOSE:
CLOSE
Battery Fail OPEN:
OPEN
Battery Fail CLOSE:
CLOSE
AC FAIL OPEN/BATT
Switch
OPEN OPEN
FEATURE PRIMARY OPERATOR SECONDARY OPERATOR
Timer-to-
Close
Set the TTC dial to desired
setting
OFF
Bi-Part Delay
Switch
Bi-Part Delay: ON (will
open last & close first)
Tandem Mode: OFF
Synchronized Close: ON
Bi-Part Delay: OFF (will
open first & close last)
Tandem Mode: OFF
Synchronized Close: ON
ACCESSORY PRIMARY OPERATOR SECONDARY
OPERATOR
Remote Controls Program remote controls
1 to 50 to the primary
operator.
Program remote
controls 51 to 100 to
the secondary operator
LiftMaster
Internet Gateway
Program to primary
operator.
Garage and Gate
Monitor
Program to primary
operator.

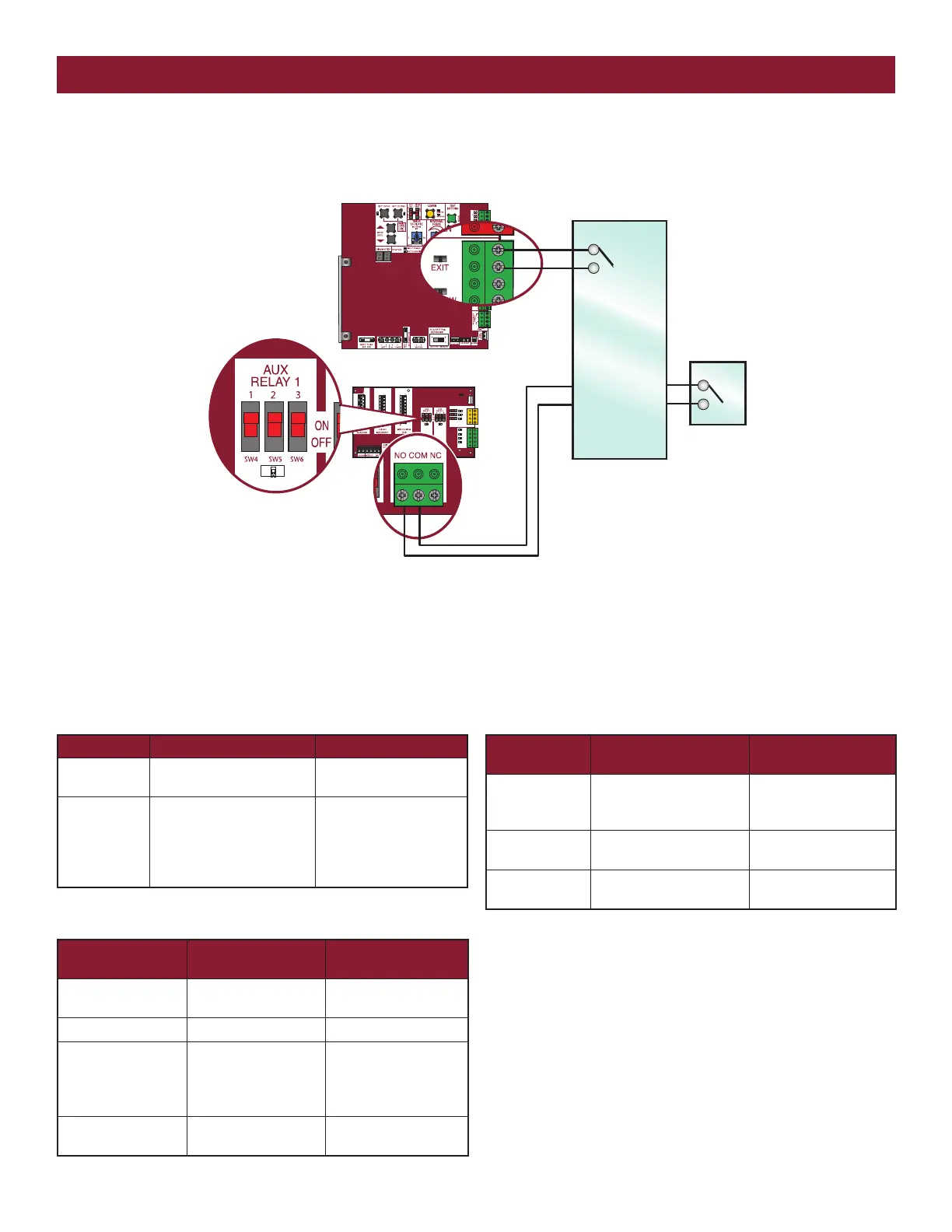

SAMS WIRING WITH RELAYS NOT ENERGIZED
EXPANSION BOARD
DUAL GATE SETTINGS
NOTE: We recommend that all accessories and board configurations are set on the primary operator.
MAIN CONTROL BOARD
SBC
OPN
CLS
STP
COM
EYE
ONLY
EYE/
EDGE
EYE/
EDGE
COM
1
2
3
OPEN
CLOSE
TO MAIN
BOARD
POWER
Access Device
Exit Input
Shadow Input
AUX Relay 1
C
NO
Auxiliary
Command
Dipswitch settings for AUX
Relay 1: 1-OFF, 2-OFF, 3-ON
Main Board
Expansion Board
Barrier Arm Operator
