4

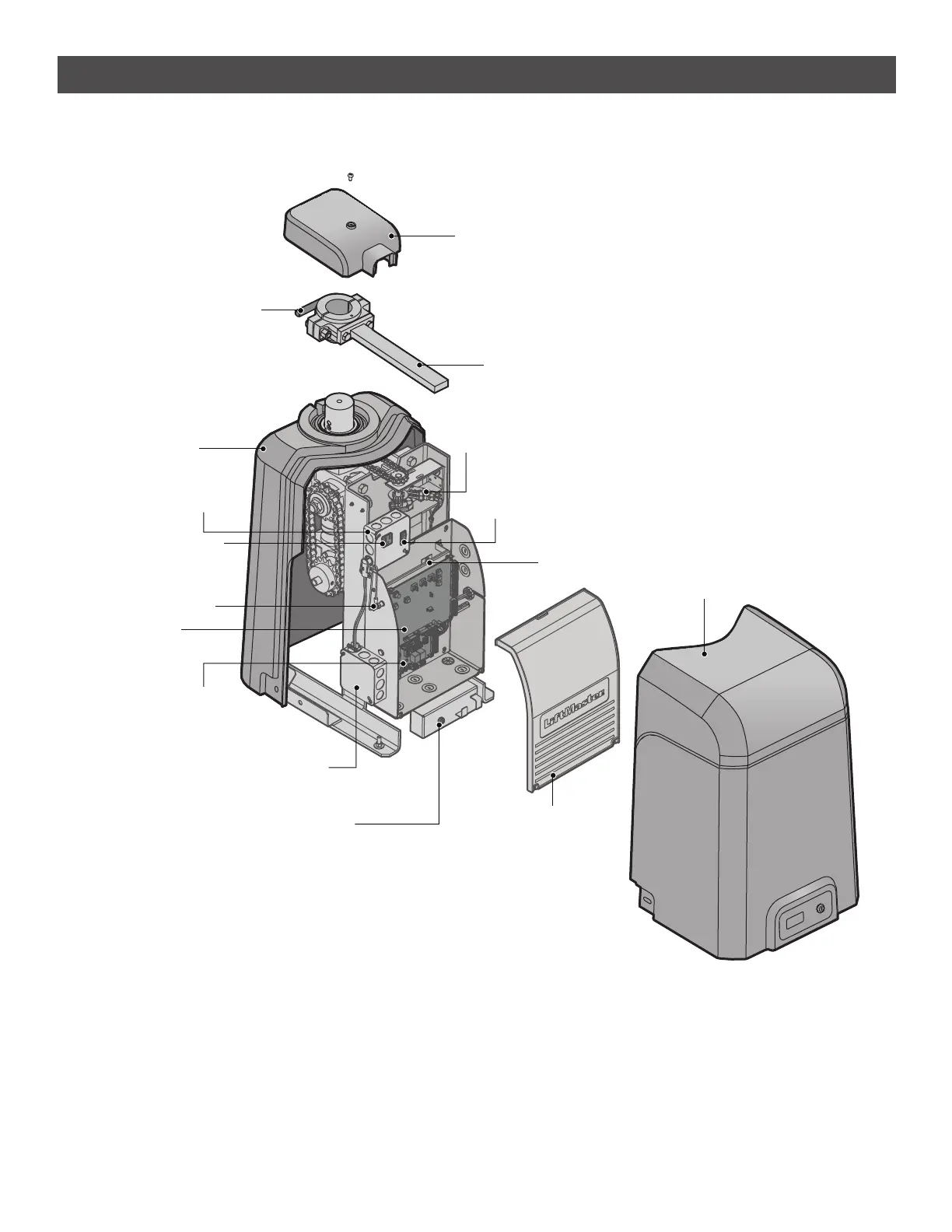

OPERATOR OVERVIEW
CSW200U
MANUAL RELEASE HANDLE
Pull the manual release handle to
manually open and close the gate.
FRONT COVER
ACCESSORY POWER
OUTLET
JUNCTION BOX
Page 20
EXPANSION BOARD
Pages 10-13
AC POWER SWITCH
The AC Power switch on the operator will turn the
incoming 120/240 Vac power ON or OFF.
CONTROL BOARD
Pages 5-9
DUST GUARD
ANTENNA
RESET BUTTON
• Press the reset button to stop a moving gate during a normal
open/close cycle, like a stop button.
• Press the reset button once while the gate is in open position
to disable the Timer-to-Close. The gate will stay in the open
position. To restart the Timer-to-Close either press the reset
button or activate the gate with a programmed remote
control.
• Press the reset button to shut off the alarm and reset the
operator.
LIMIT SWITCHES
Pages 14-15
REAR COVER
OPERATOR ARM
CLUDGE COVER
JUNCTION BOX
Page 20
POWER BOARD
(Located behind the control board)
Page 13
