17
SOLAR

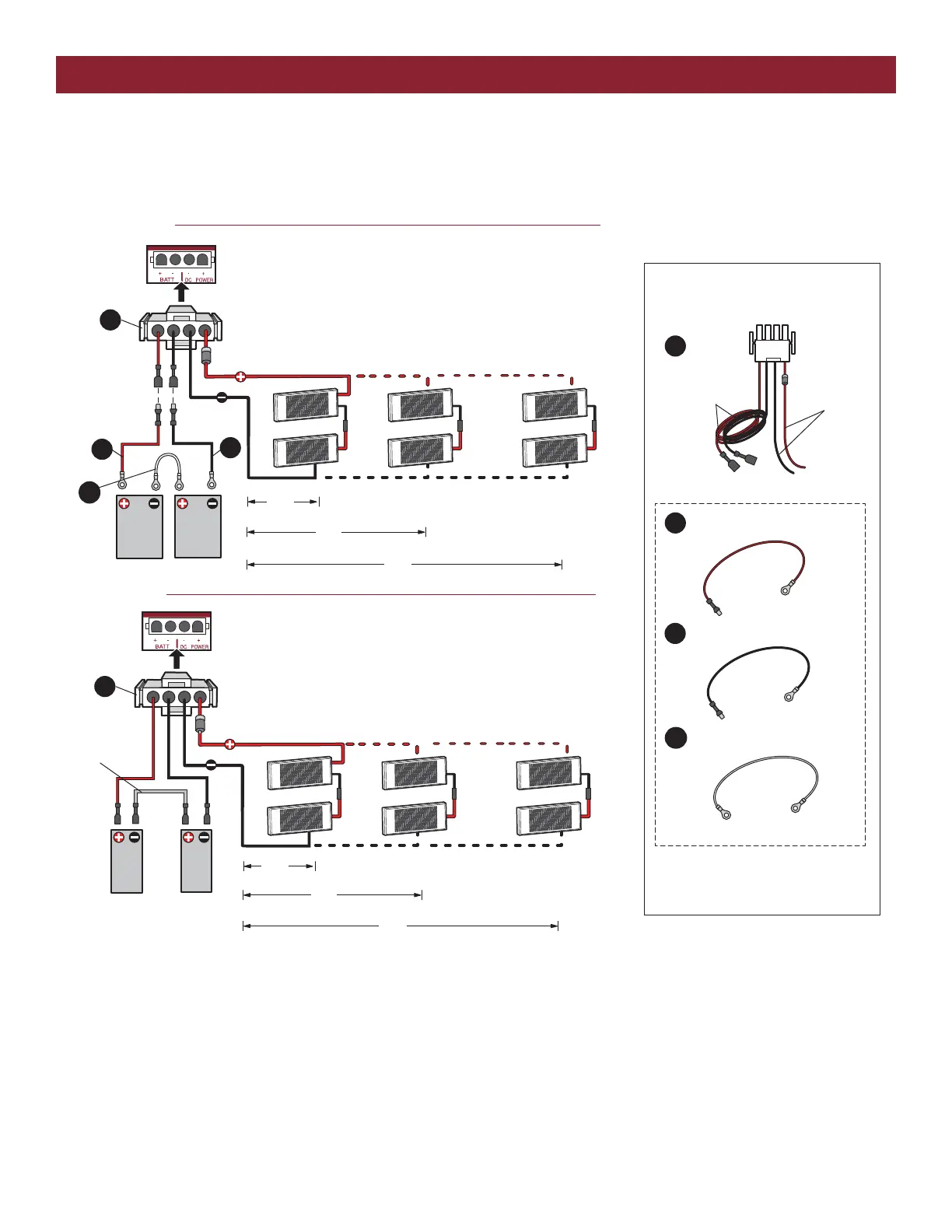

24V APPLICATIONS
Disconnect all power (AC, solar, battery) to the operator before servicing.
NOTE: 10W 12V solar panels are illustrated in the image below.
Diode
40W
60W
33AH Batteries (in series)
To “BATT DC POWER”
input on control board
33AH BATTERIES
7AH BATTERIES
A
B
C
D
A
J15 Plug
B
Red wire for 33AH battery
connections
C
Black wire for 33AH battery
connections
D
White jumper wire for 33AH battery
connections
ITEMS NEEDED FOR
24V APPLICATIONS
Diode
7AH Batteries (in series)
A
Existing Jumper
(battery connections)
(solar panel
connections)
The remaining wires in the kit are not needed
for 24V applications.
To “BATT DC POWER”
input on control board
20W
40W
60W
20W
To Next Page
