22
POWER
Diode
20A
Battery
12V 7AH
Battery
12V 7AH

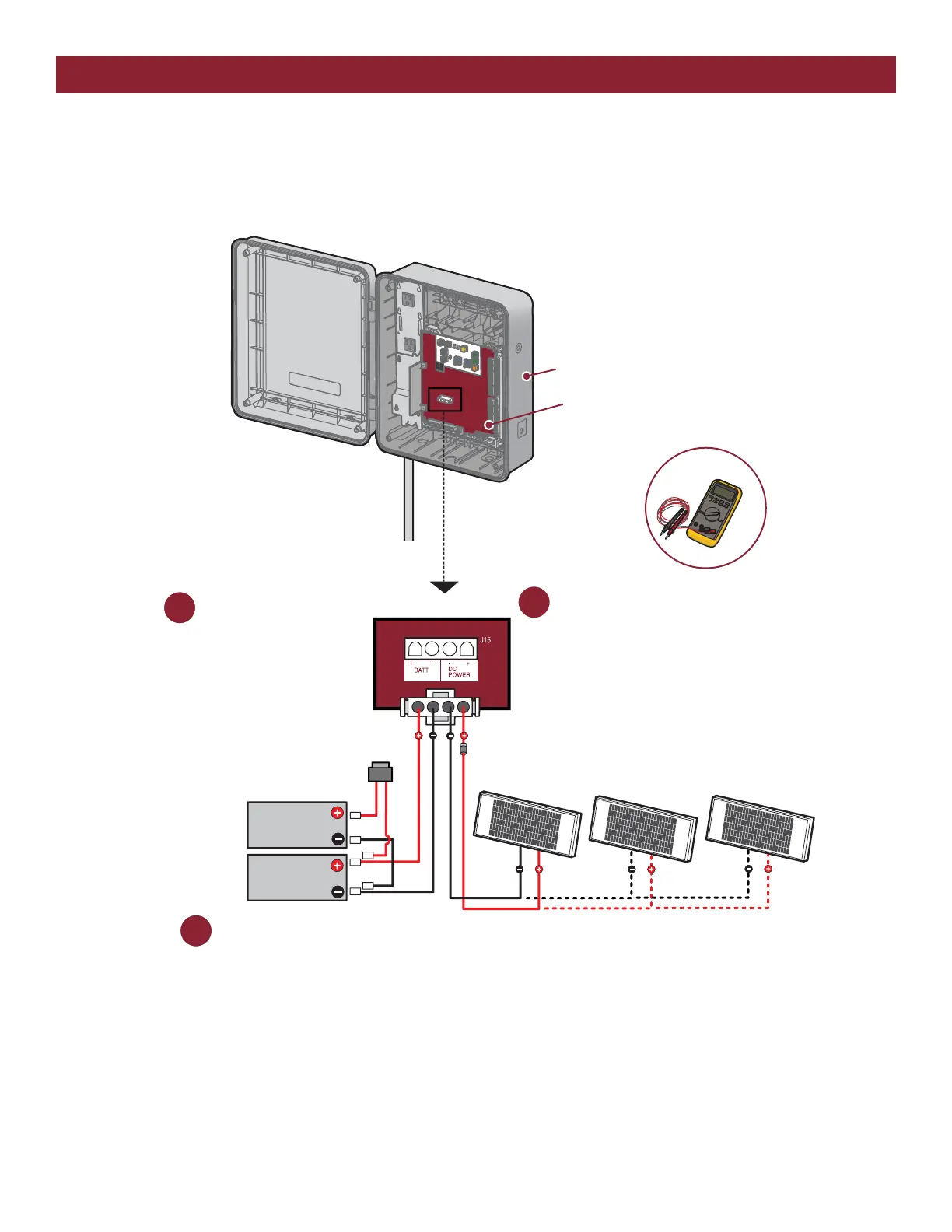

Solar Panels
10W minimum - 30W maximum, wired in parallel
10W 12V10W 12V
20A
10W 12V
J15 Plug
Black
Red
Black
Red
CONTROL BOX
1
Check the solar panels.*
Check the voltage coming from
the solar panels (red and black
wires on the J15 plug labeled
“DC POWER”). Check the voltage
when the panel is in full sun.
The voltage should be
12 Vdc (+/- 10%).
If not, refer to the Solar
Troubleshooting section.
2
Check the batteries.*
Check the battery connections. Make sure there is one 7AH battery,
two 7AH batteries wired in paralllel, OR one 33AH battery connected.
Check the voltage coming from each battery by disconnecting the battery
from the operator. A fully charged battery should read 12.8 to 13.3 Vdc per
battery. If not, replace the batteries.
3
Check the control board.*
Try replacing the fuse.
If that does not work, replace
the control board.
*
CONTROL BOARD
CONTROL BOARD
MODEL LA412U
SYMPTOM: Operator does not have power.
To Next Page
