18

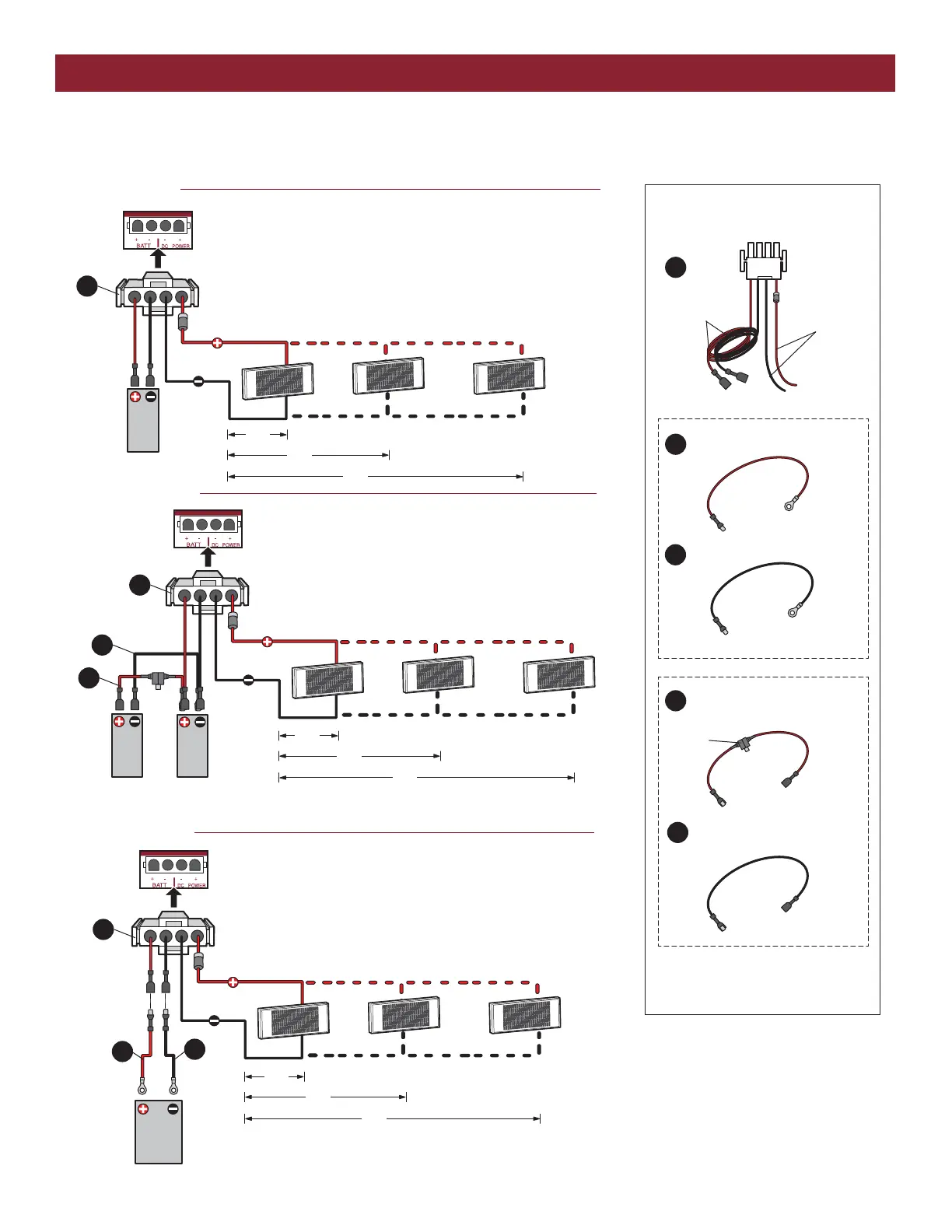

12V APPLICATIONS
Disconnect all power (AC, solar, battery) to the operator before servicing.
NOTE: 10W 12V solar panels are illustrated in the image below.
Diode
20W
7AH Battery
To “BATT DC POWER”
input on control board
ONE 7AH BATTERY
TWO 7AH BATTERIES
A
A
J15 Plug
B
Red wire for 33AH battery
connections
C
Black wire for 33AH battery
connections
E
Red jumper wire for two 7AH
battery connections
ITEMS NEEDED FOR
12V APPLICATIONS
Diode
7AH Batteries (in parallel)
To “BATT DC POWER”
input on control board
A
Fuse
(battery connections) (solar panel
connections)
The remaining wires in the kit are not needed
for 12V applications.
F
Black jumper wire for two 7AH
battery connections
(fuse)
E
F
B
C
A
Diode
To “BATT DC POWER”
input on control board
ONE 33AH BATTERY
33AH Battery
Solar panels are wired in parallel.
30W
10W
20W
Solar panels are wired in parallel.
30W
10W
20W
Solar panels are wired in parallel.
30W
10W
SOLAR
To Next Page
