7
DIAGNOSTICS
1
2
Jumper Cables
DIAGNOSTICS
1
2
Jumper Cables
BATTERIES
MOTOR
MOTOR
BASIC TROUBLESHOOTING
To protect against fire and electrocution:
• DISCONNECT power (AC or solar and battery) BEFORE installing or servicing operator.

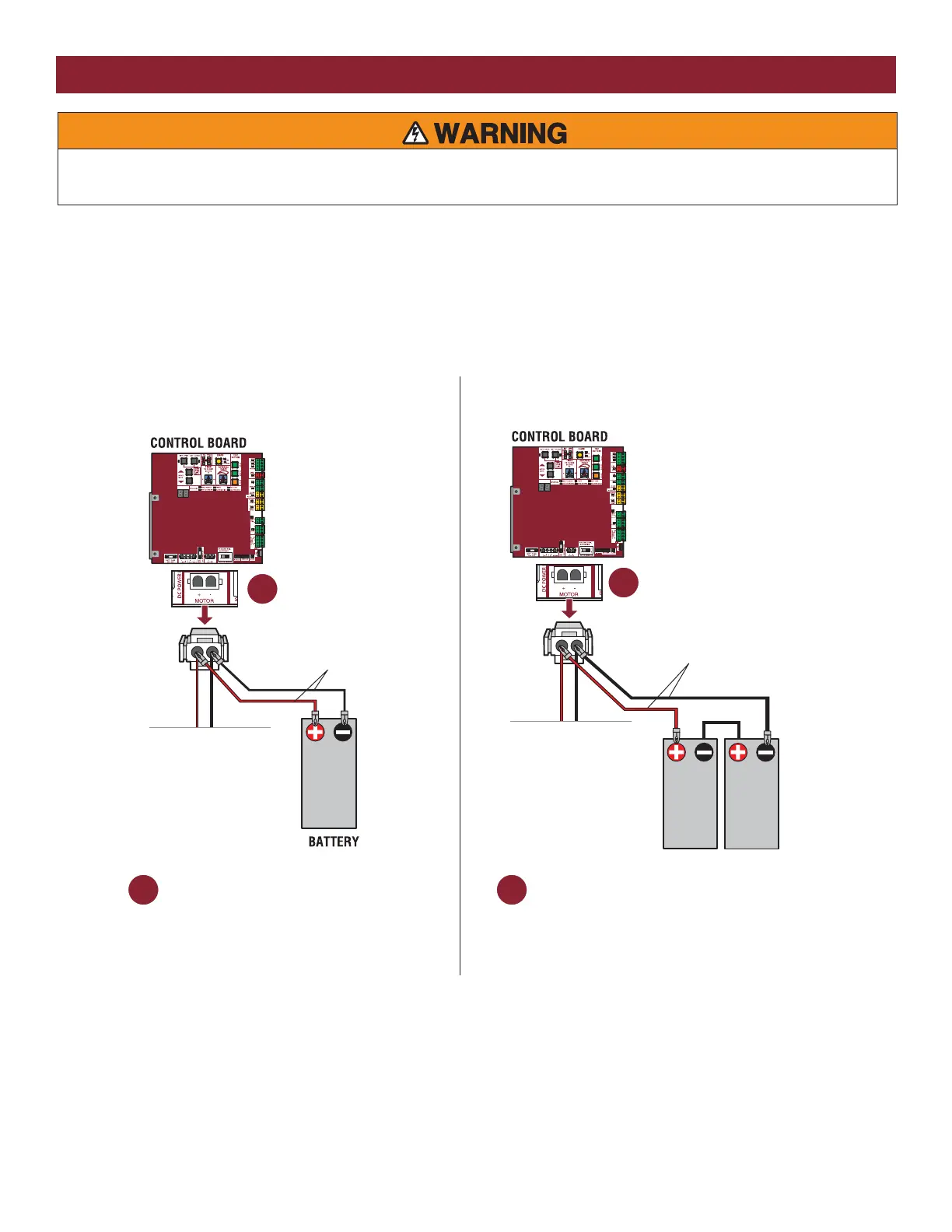

DC MOTORS
SYMPTOM: The motor will not run.
CHECK THE MOTOR:
Disconnect ALL power from operator. Disconnect the gate from the operator.
Disconnect the motor
harness from control
board.
Connect the battery to the motor
harness as shown.
SOLUTION: If the motor did not run, replace the motor.
12V MOTOR 24V MOTOR
Disconnect the motor harness
from control board.
Connect the batteries to the motor
harness as shown.
To Next Page
