26
Black
Red
Battery
12V 7AH
CONTROL BOARD
OUTLET HOUSING
(Back of Outlet Housing)
Incoming Power
HOT
NEUTRAL
GROUND
Outlet
Black
Green
White
Outlet
J15 Plug

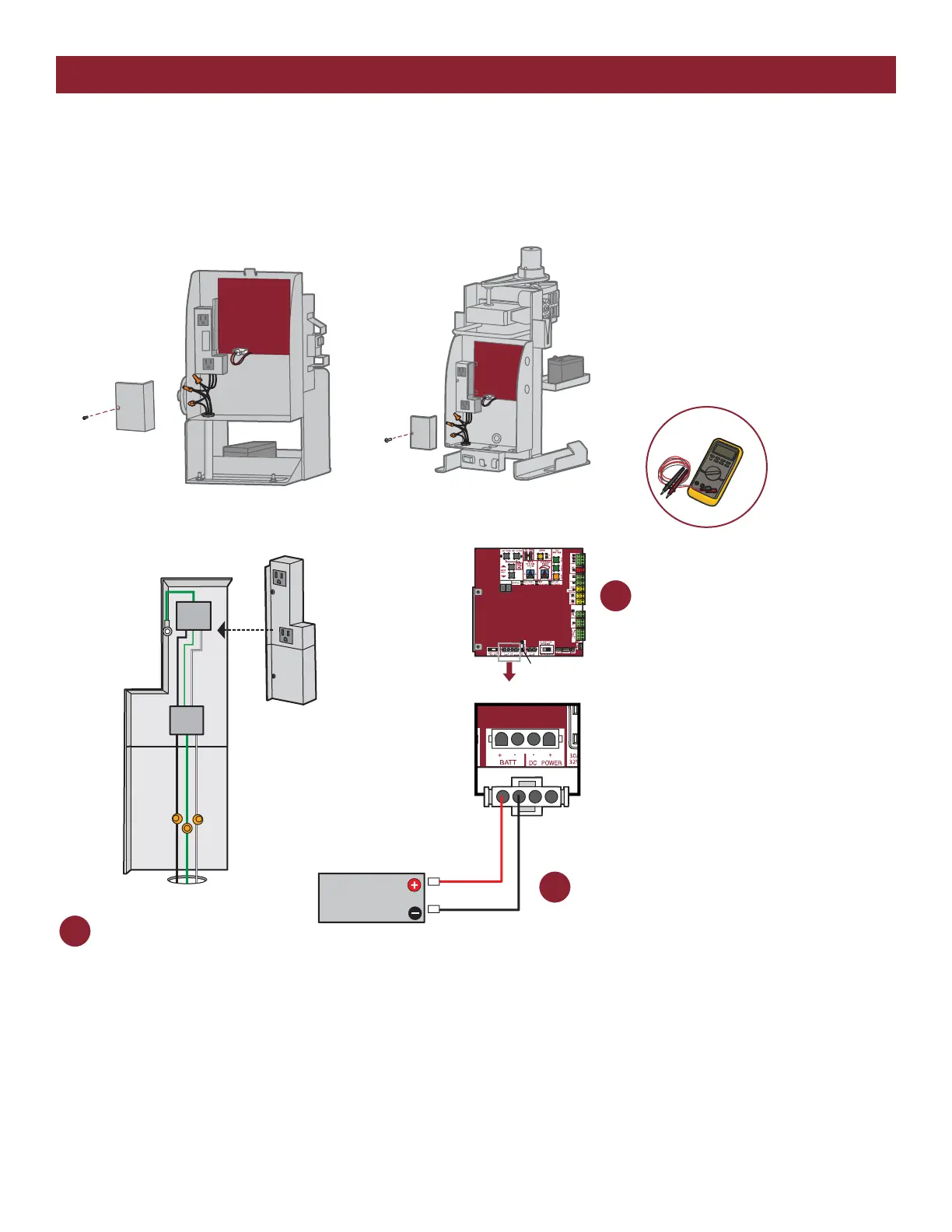

1 Check the incoming power.*
Check breaker first, then check voltage coming
into operator. The voltage should be 120 Vac.
3
Check the control board.*
Try replacing the fuse on
the control board. If that
does not work, replace
the control board.
DIAGNOSTICS
Fuse
2
Check the batteries.*
Check the battery connections. Make
sure one 7AH battery OR one 33AH
battery is connected. Check the voltage
coming from each battery by disconnecting
the battery from the operator. A fully charged
battery should read 12.8 to 13.3 Vdc per
battery. If not, replace the batteries.
*
POWER
MODELS RSL12U AND RSW12U
SYMPTOM: Operator does not have power.
To Next Page
