V-ACTOR HF HANDPIECE OPERATIONS, SET-UP, CLEANING, AND MAINTENANCE
EN
INTELECT
®
RPW 2 USER MANUAL
CLEANING, MAINTENANCE, OVERHAUL
CHANGING THE VIBRATION
TRANSMITTERS V25 AND V10
• To remove the mm vibration transmitter or the mm
spherical vibration transmitter, unscrew the vibration
transmitter screw cap () from the handpiece and pull out
the vibration transmitter ().
• Clean all parts of the vibration transmitter as described on
page .
• Allow vibration transmitter to air dry
• Reassemble the vibration transmitter in reverse order.
• Screw the new vibration transmitter onto the handpiece
until finger-tight.

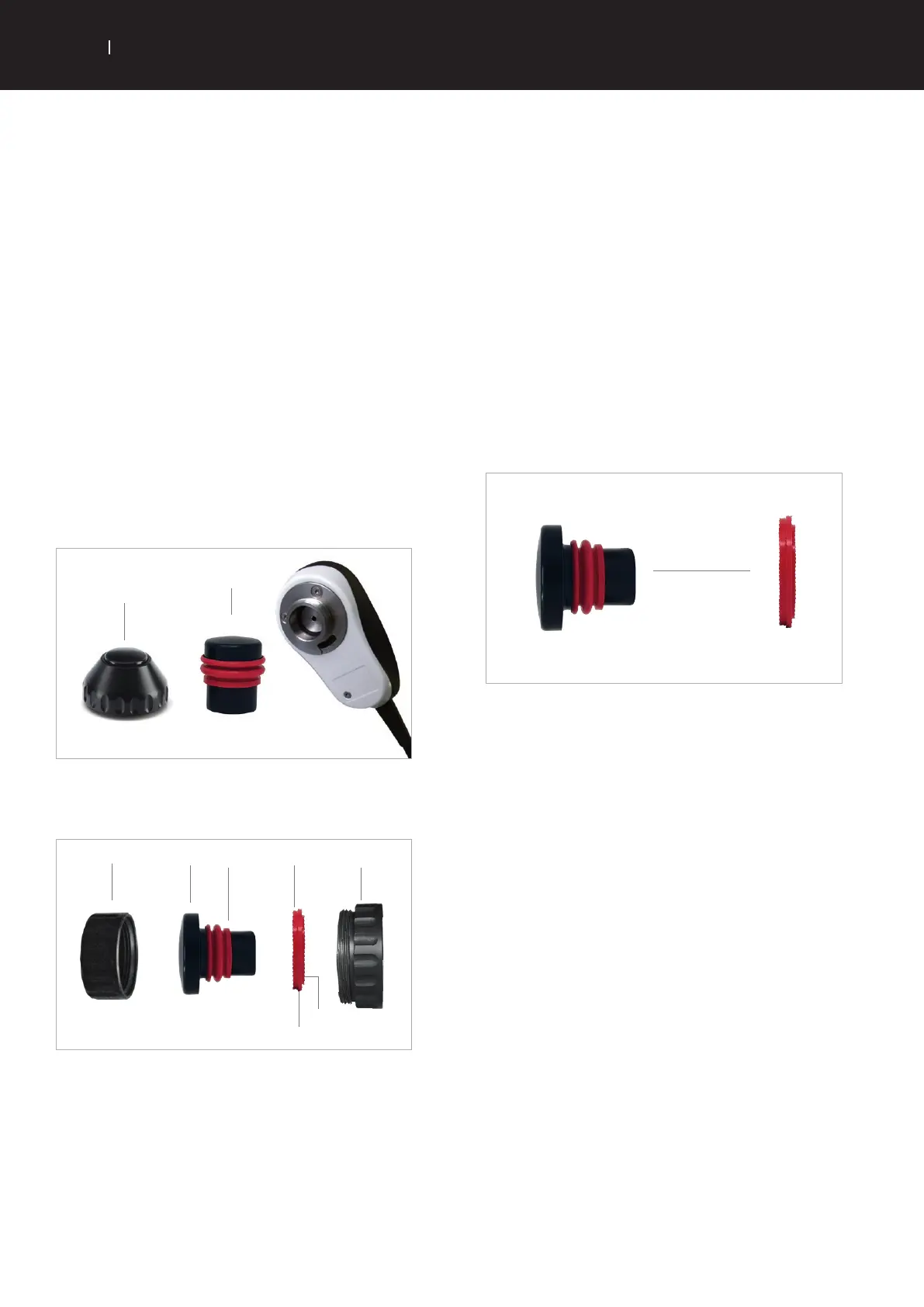

V40
Front cap
Vibration transmitter head
Sealing ring
Spring element
Rear cap
Cut
Lower lip
• To remove the V vibration transmitter, unscrew the
vibration transmitter from the handpiece.
• Unscrew the vibration transmitter screw cap ( and ) and
pull out the shock transmitter.
• Remove the sealing ring () by pressing it apart at the
cut-through point ().
• To clean, press the spring element () together slightly
and remove the residue underneath it. Do not attempt to
remove this portion of the transmitter!
• Clean all parts of the vibration transmitter as described on
page and allow to air dry. When reassembling the V,
note that the sealing ring has a lower lip () that needs to
face outward when reassembled.
• Reassemble the vibration transmitter in reverse order.
• Make sure that the smooth side of the sealing ring () is in
contact with the vibration transmitter head ().
• Screw the new vibration transmitter onto the handpiece
until finger-tight.
