Allowable Types of Snap Ring
Article No. Thickness (mm)
015-1700381AA 2.8
015-170038AB 2.9
015-1700381AC 3.0
015-1700381AD 3.1
015-1700381AE 3.2

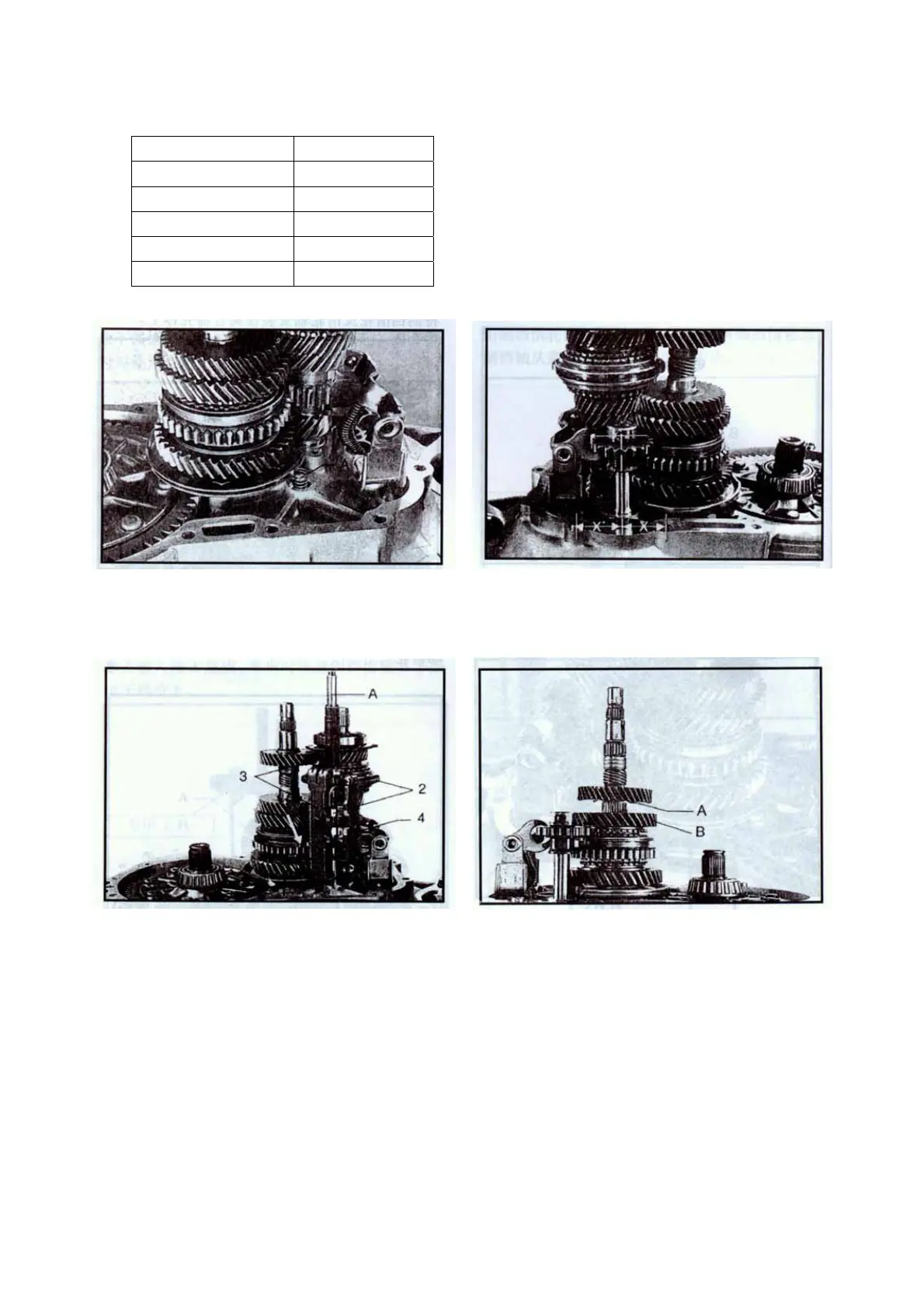

When mounting fork shaft, pay attention to putting the
counterpoise spring into the fork shaft hole of clutch
housing.
When mounting idler shaft, Value X should be equal.
Mount the fork assy. onto their correct positions
1— Gear-1 and gear-2 fork
2— Gear-3 and gear-4 fork
3— Gear-5 fork guide board and bushing
4— Reverse gear fork guide board
When mounting the rear shaft pump baffle A of input
shaft, notice the position A should be as indicated by
the figure. Put on new gaskets of fore and rear
housings, and then the transmission housing.
